4DL06S – Lever Operated Directional Control Valve (CETOP 03, NG06)

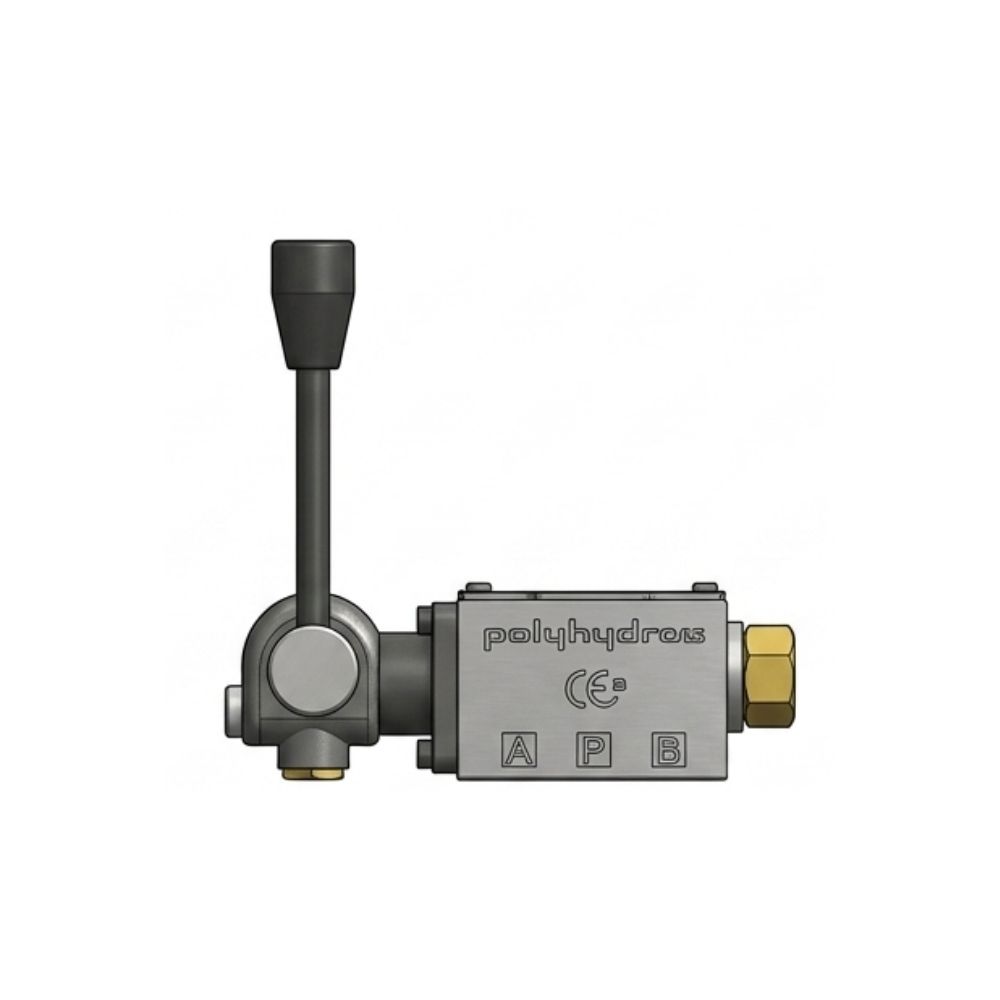

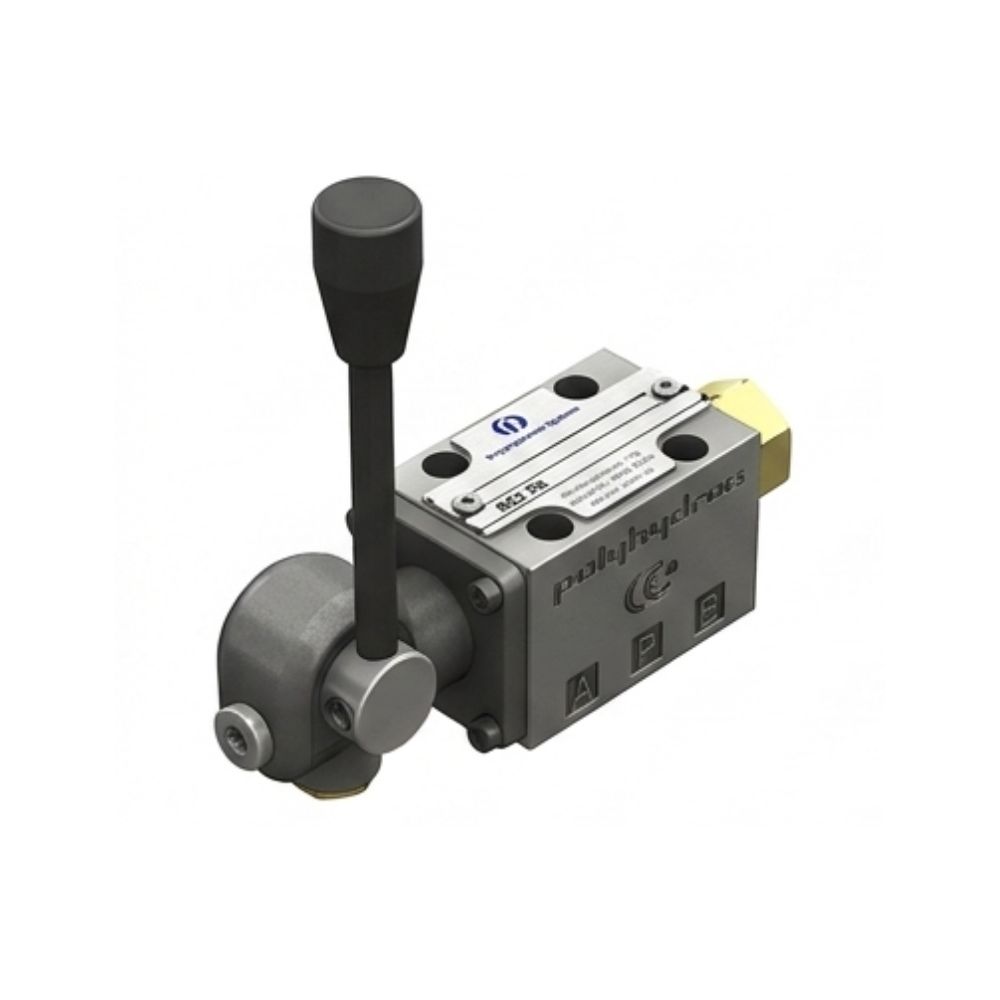

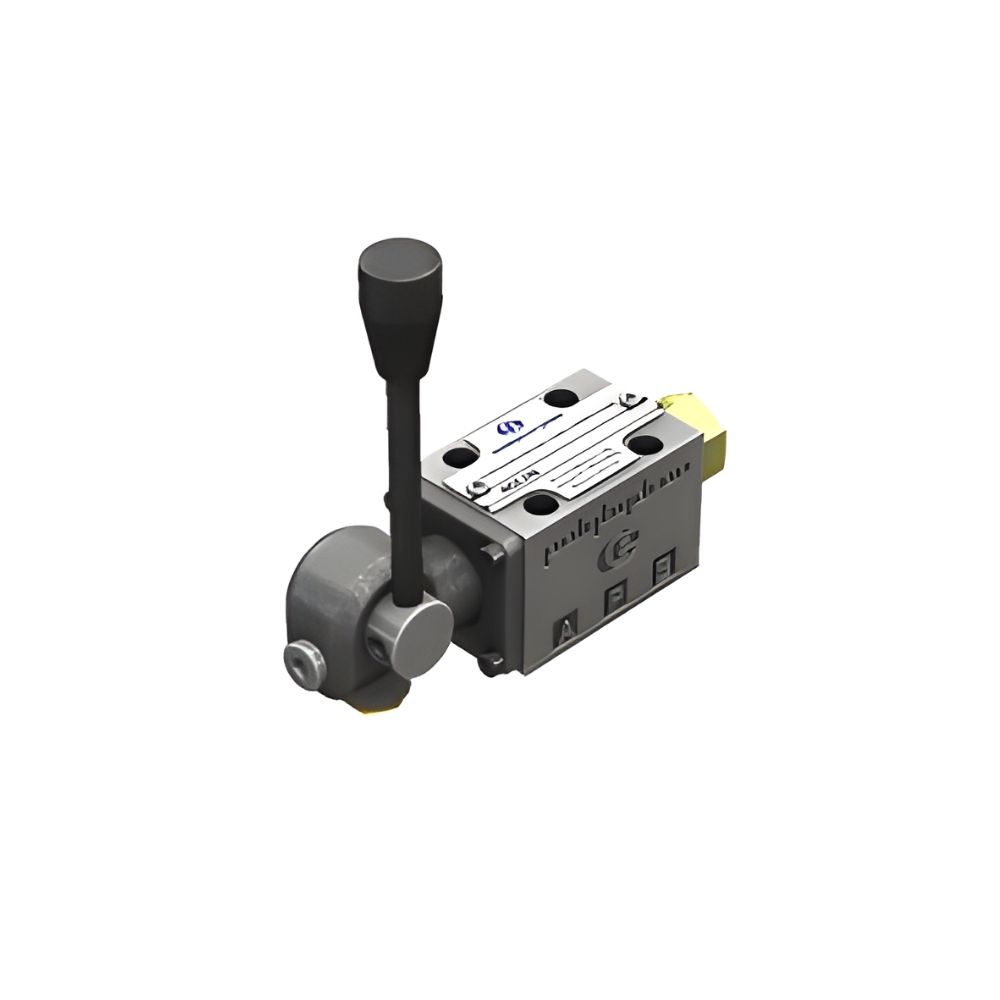

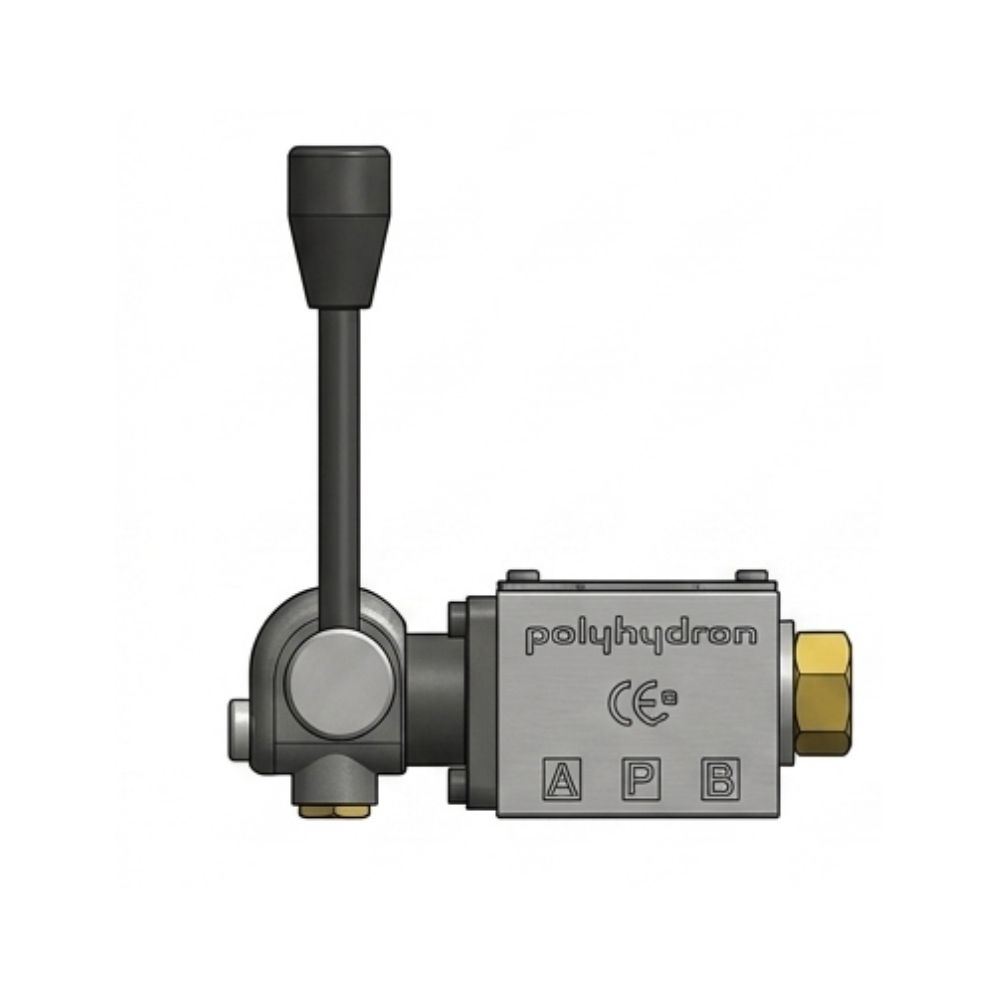

The Polyhydron DL 06 is a lever-operated directional control valve designed for precise hydraulic flow management in industrial systems. It conforms to the CETOP 03 (NG6) mounting interface standard, making it compatible with widely used sub-plates and manifolds.

  • Check Mark Operating Pressure : High Performance Range
  • Check Mark Application : Industrial & Mobile Systems

About this item

The Polyhydron Lever Operated Directional Control Valve (CETOP 03)-DL 06 is a lever-operated directional control valve designed for mounting on ISO 4401-03-02 standards. It features a completely encapsulated mechanism that protects against dirt and contamination, ensuring reliable performance.

The valve incorporates a five-chamber body and spool design, which reduces dynamic forces, minimizes pressure drop, and enhances overall performance and service life. Its balanced spool design ensures smooth shifting, high reliability, and long operational life.

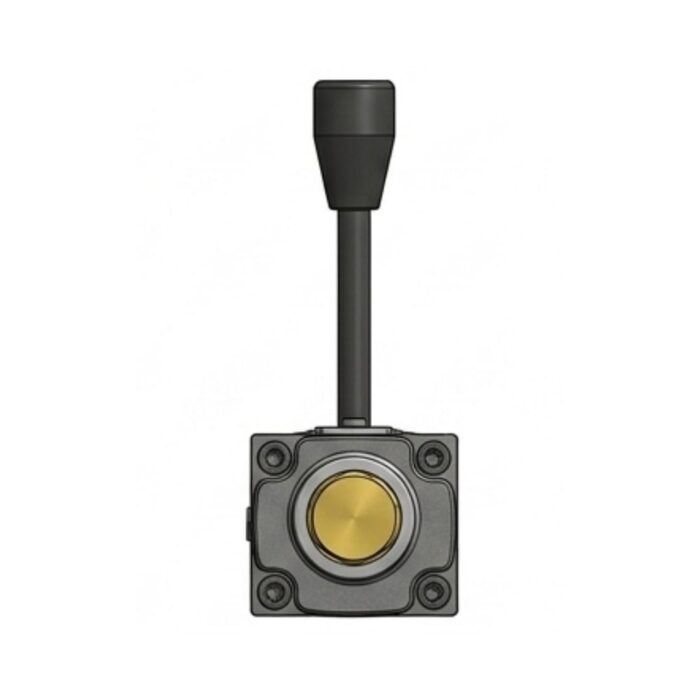

Available in spring-centered, spring offset, and detented configurations, the DL 06 offers flexibility for various applications. The operating head can be rotated in 90° increments up to four positions, allowing convenient installation. Interchangeable spools and bodies simplify maintenance and reduce downtime.

Parameter Specification
Mounting Interface ISO 4401-03-02-0-05 (CETOP 03 / NG6)
Max Operating Pressure (P, A, B) 315 bar
Max Pressure (T Port) 100 bar (Static)
Nominal Flow Capacity ~63 lpm (Refer to performance curves)
Hydraulic Medium Mineral oil
Viscosity Range 10 cSt to 380 cSt
Fluid Temperature Range -20°C to +70°C
Fluid Cleanliness ISO 4406 20/18/15 or better
Construction 5-Chamber Spool type
Mounting Position Optional (Horizontal spool axis preferred)
Approximate Mass 1.5 kg
Operational Features
  • Encapsulation: The control head is completely encapsulated to protect internal mechanisms from dirt and dust.
  • Flexibility: The operating head can be rotated by 90° increments (4 positions) to fit various installation layouts.
  • Interchangeability: All spools and bodies are interchangeable, which simplifies long-term maintenance and field repairs.
  • Mounting Hardware: Recommended mounting bolts are M5 x 45 mm (not included) with a tightening torque of 8.9 Nm.
