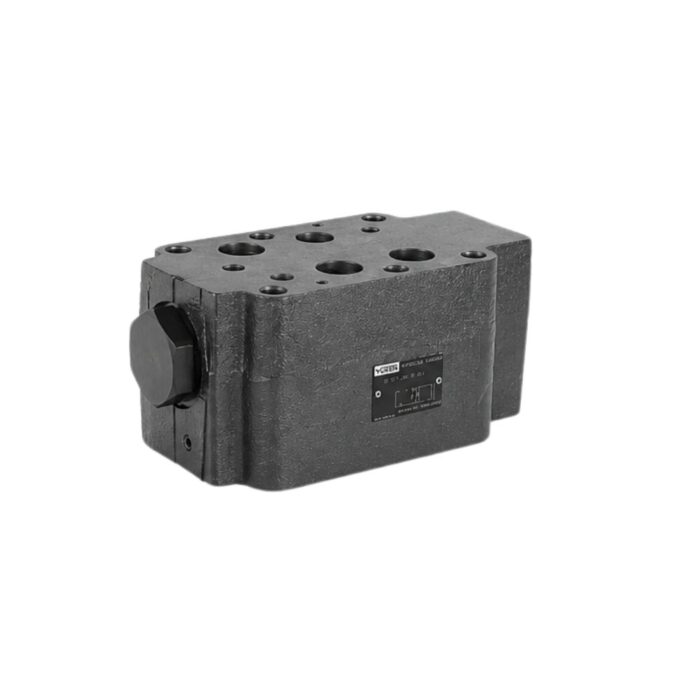

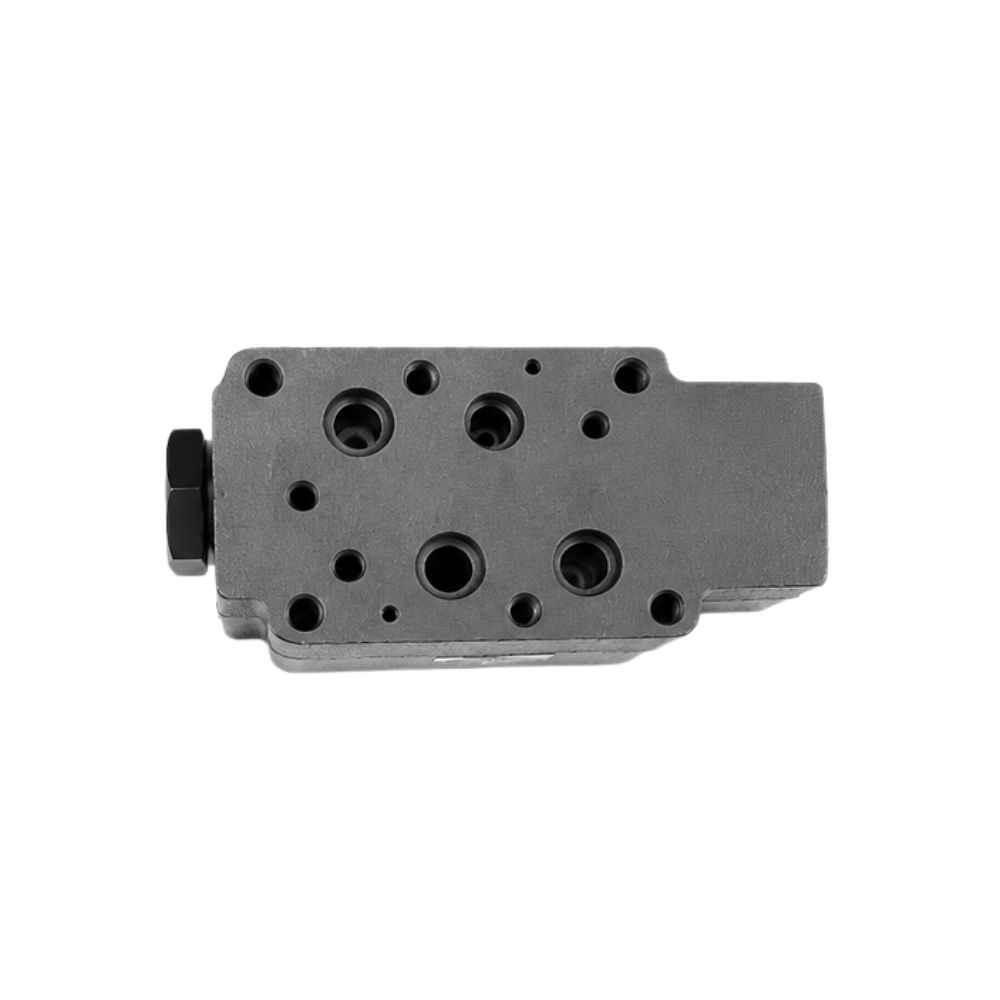

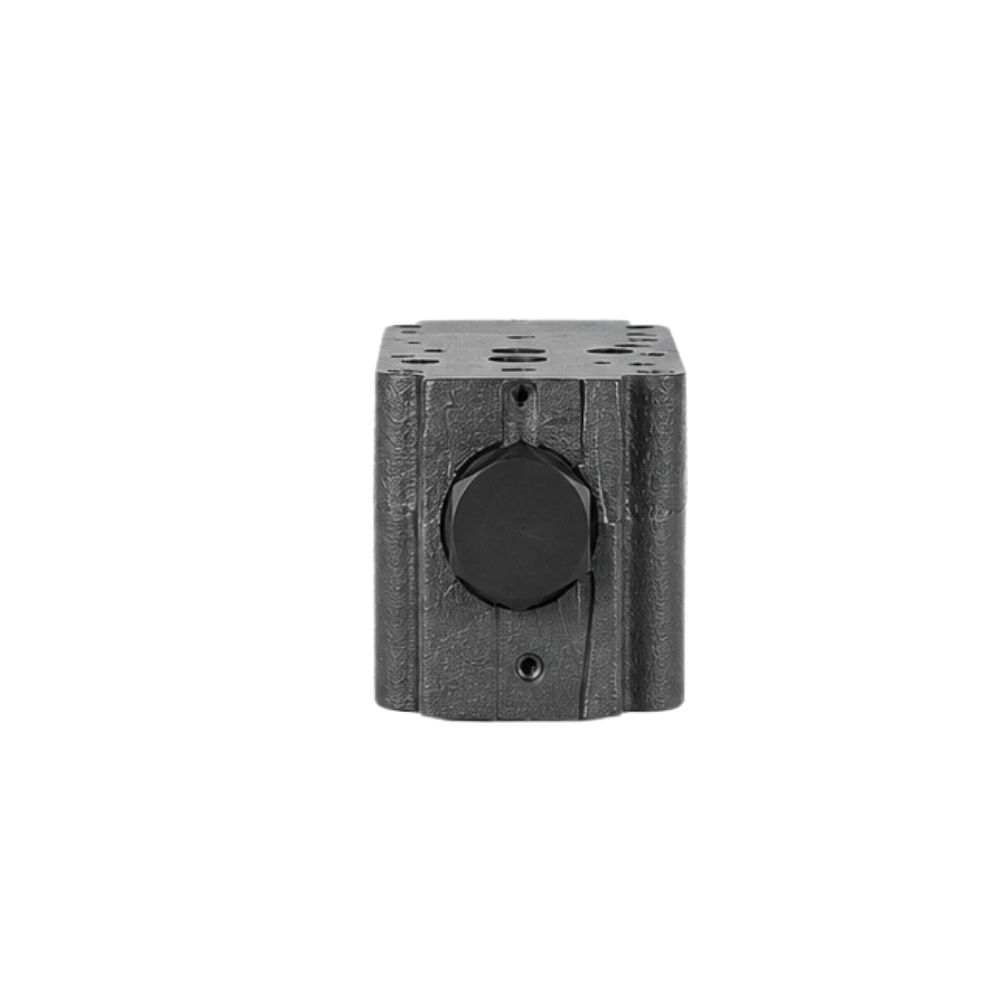

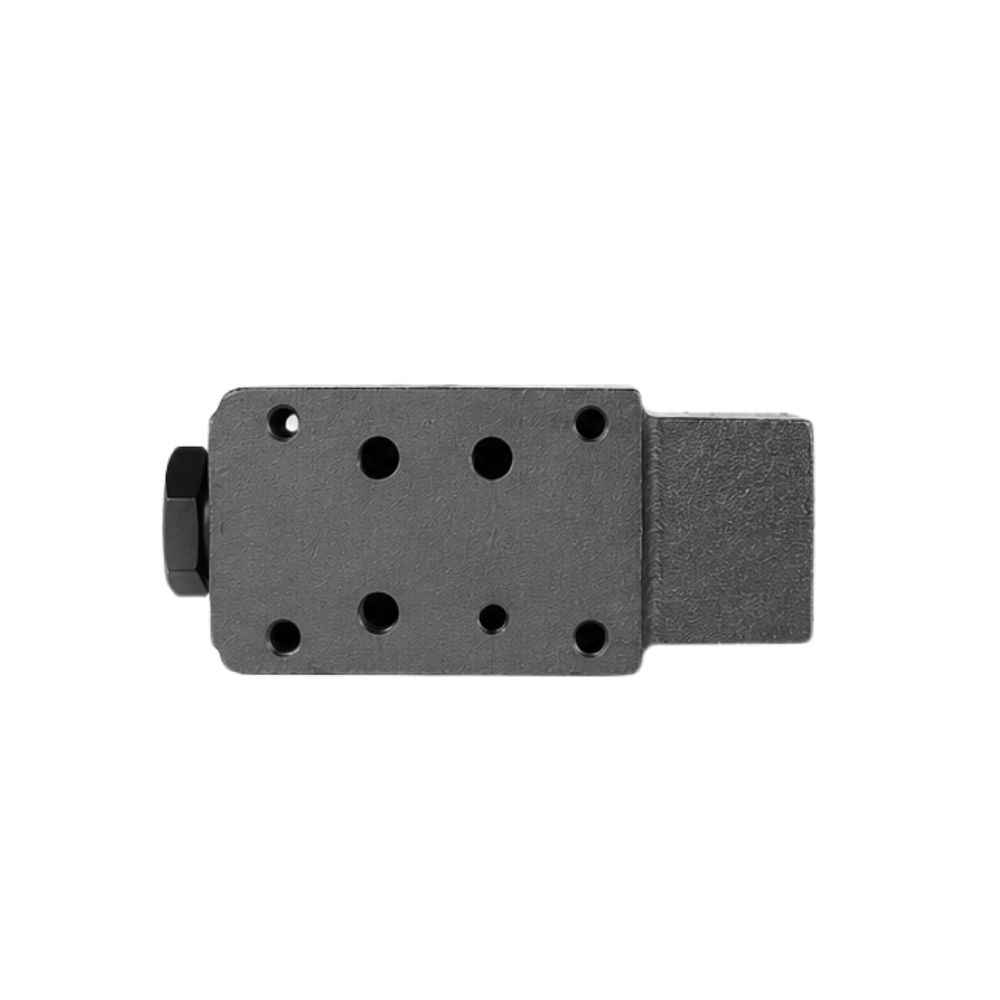

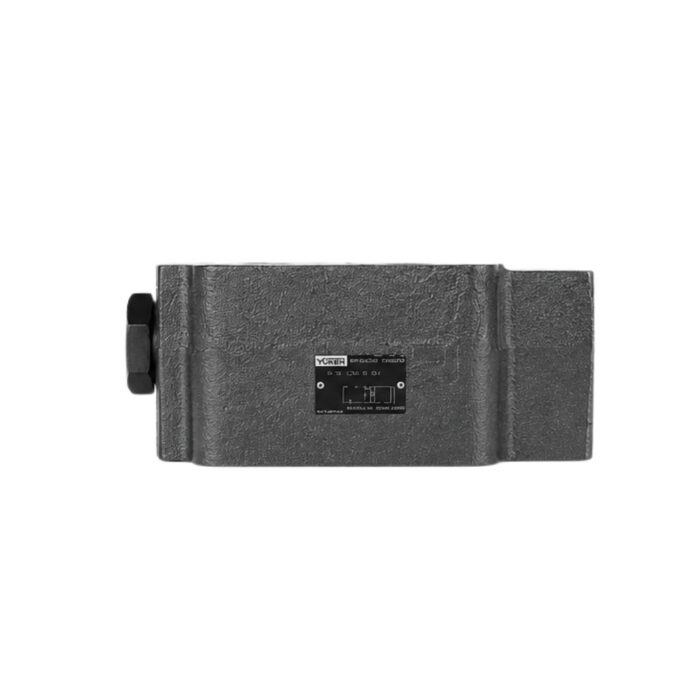

Z2S 16 Pilot Operated Check Valve
The Bosch Rexroth Z2S 16 is an industrial-grade, pilot-operated check valve in a sandwich plate design used for the zero-leakage, drop-free locking of one or two actuator ports. It is engineered as a modular stacking component (Size 16, NG16) that sits vertically between a directional control valve and a standard subplate.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Bosch Rexroth Z2S 16 is a pilot-operated check valve in a sandwich plate design engineered for the leakage-free blocking of one or two actuator ports. It operates at a maximum pressure of 315 bar and handles a maximum flow rate of up to 300 litres per minute. It is primarily configured as a modular sandwich plate valve for vertical stackings in industrial hydraulic systems.
| Technical Attribute | Specification & Features |
|---|---|
| Component Type | Pilot-operated check valve (Sandwich plate design) |
| Size / Pattern | Size 16 (NG16) / ISO 4401-07-07-0-05 |
| Max Pressure | 315 bar (4,568 psi) |
| Max Flow Rate | 300 l/min (79.2 US gpm) |
| Component Series | 5X (50 to 59) |
| Cracking Pressures | 3 bar, 5 bar, 7.5 bar, or 10 bar |
| Sealing Options | NBR (Standard) or FKM / Viton (Special media) |
| Blocking Options | Channel A, Channel B, or both channels (A & B) |
| Leak Isolation | Line contact sealing for zero-leakage actuator locking |
| Shock Prevention | Two-stage pre-opening structure for smooth decompression |
