Z2FS10 – Modular Throttle Valve Bosch Rexroth
The Bosch Rexroth Z2FS10 is a sandwich-plate style double throttle check valve used to control hydraulic fluid flow rates. It regulates the speed of hydraulic actuators (like cylinders or motors) by restricting flow in one direction while allowing free, unrestricted flow in the opposite direction.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Bosch Rexroth Z2FS10 is a dual-function, sandwich plate design throttle check valve used to precisely limit the fluid flow of one or two actuator ports in industrial hydraulic systems. It features two symmetrically arranged throttle check valve units that restrict fluid flow in one direction while allowing completely free return flow in the opposite direction.
| Parameter / Feature | Specification Details |
|---|---|
| Component Type | Twin throttle check valve (Sandwich plate design) |
| Nominal Size | Size 10 (NG10) |
| Component Series | 3X |
| Max Operating Pressure | Up to 315 bar (4,568 psi) |
| Max Flow Rate | Up to 160 L/min (42.2 GPM) |

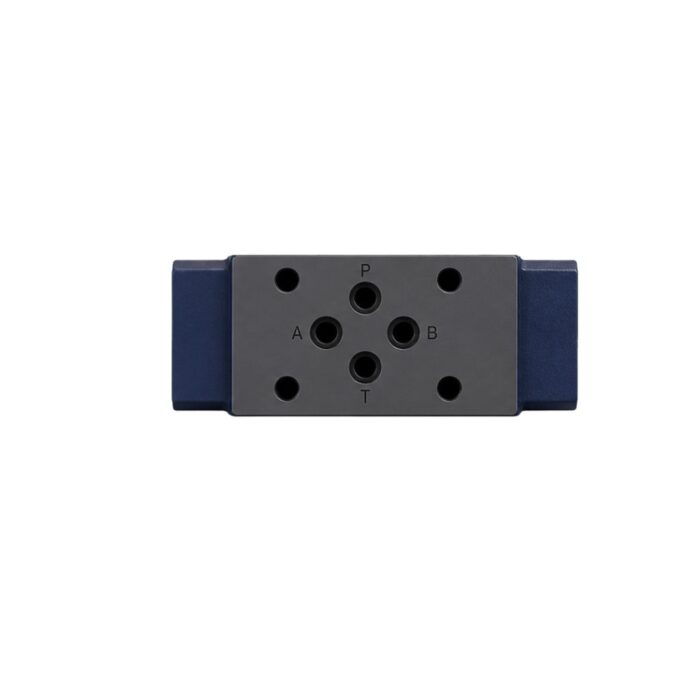

| Mounting Pattern | Standardized ISO 4401-05-04-0-05 (CETOP 05) |
| Flow Control Types | Dual-direction setup for meter-in or meter-out circuits |
| Adjustment Options | Hexagon spindle with scale, rotary knob, or lockable knob |
| Typical Net Weight | Approximately 2.92 kg |
| Hydraulic Fluid Compatibility | Mineral oils, HL, HLP, and optional fire-resistant fluids |
