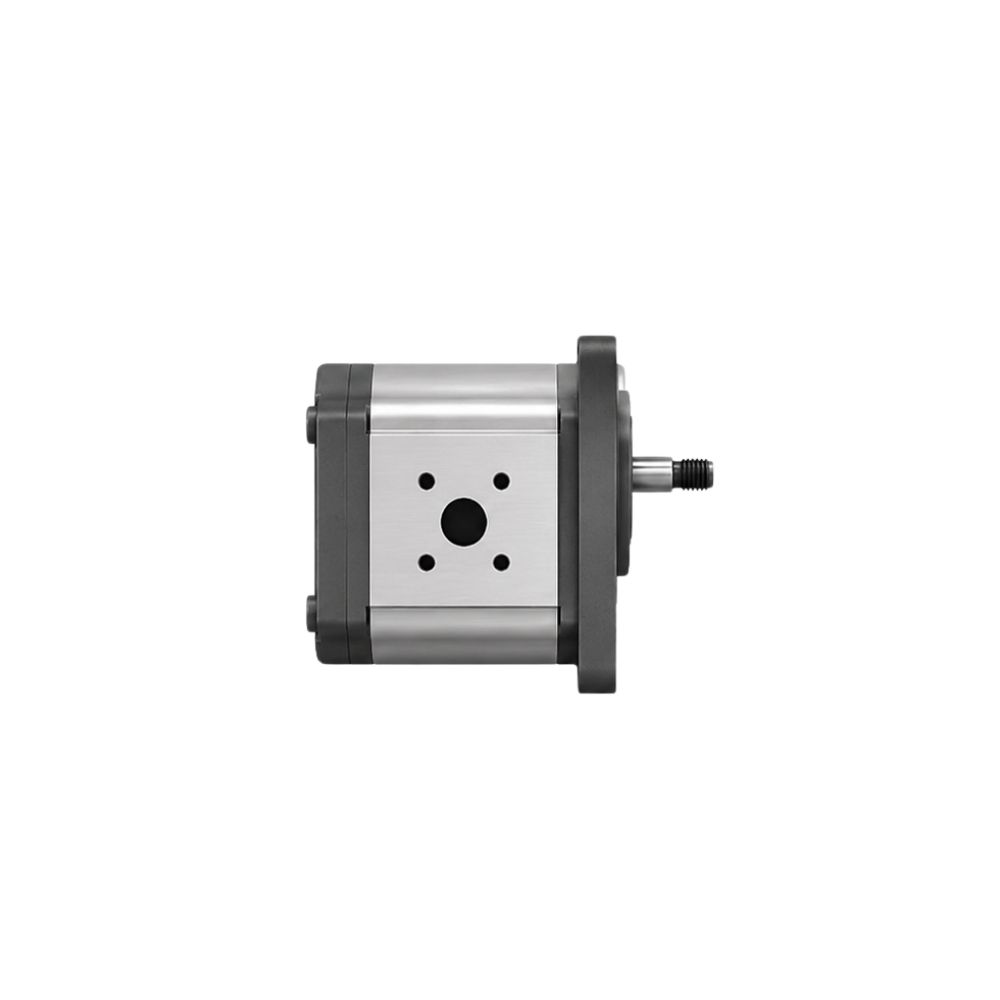

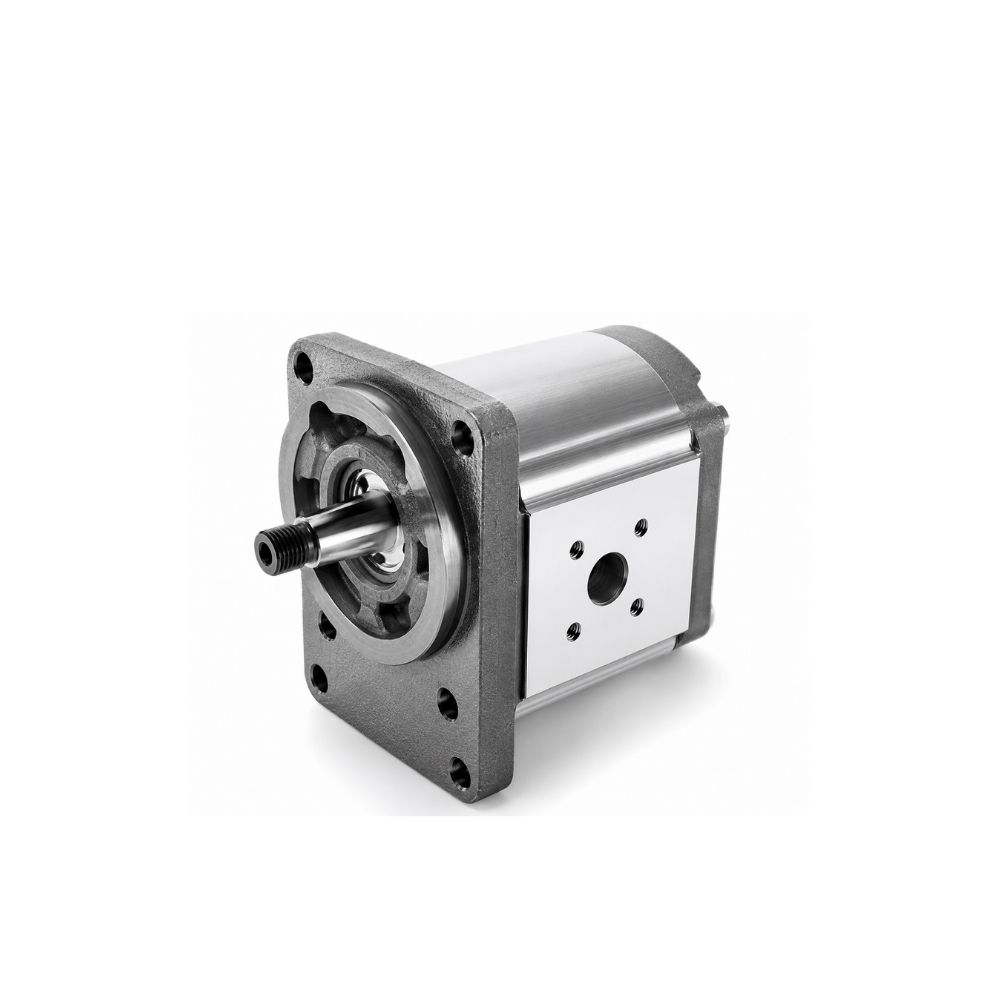

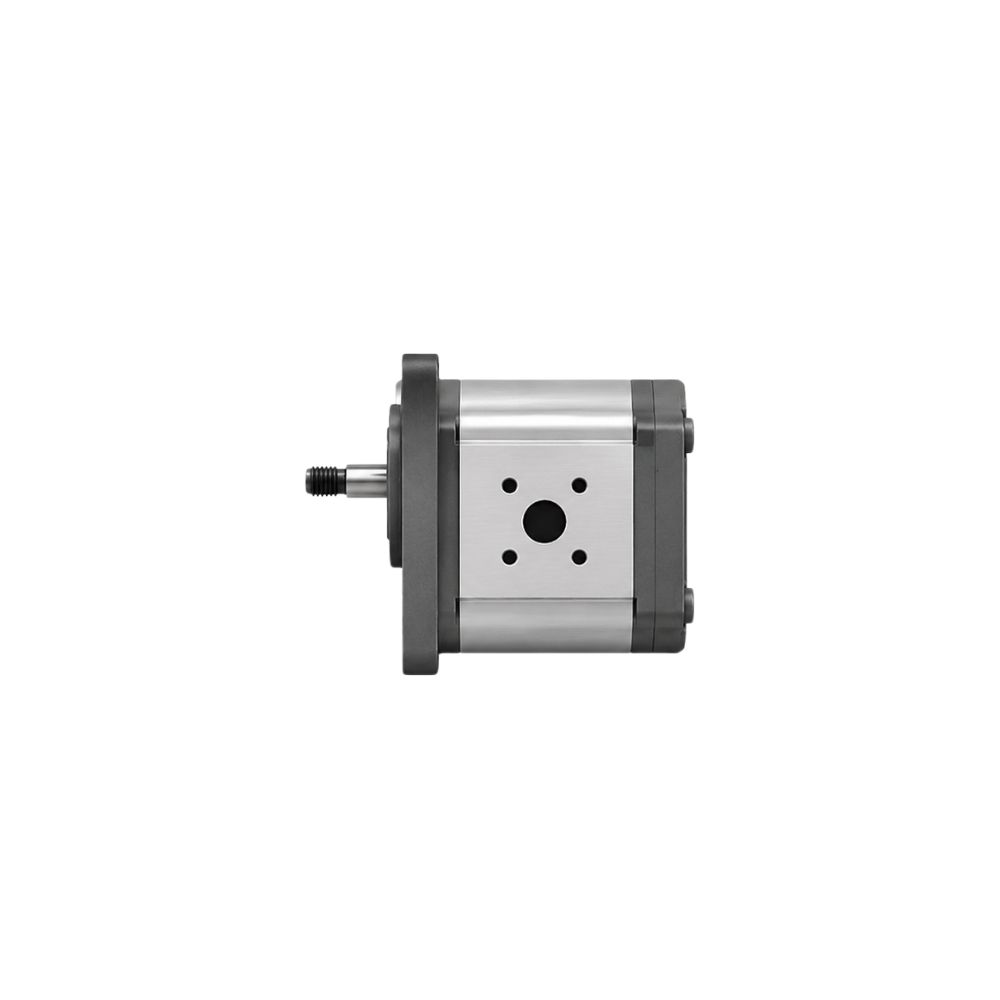

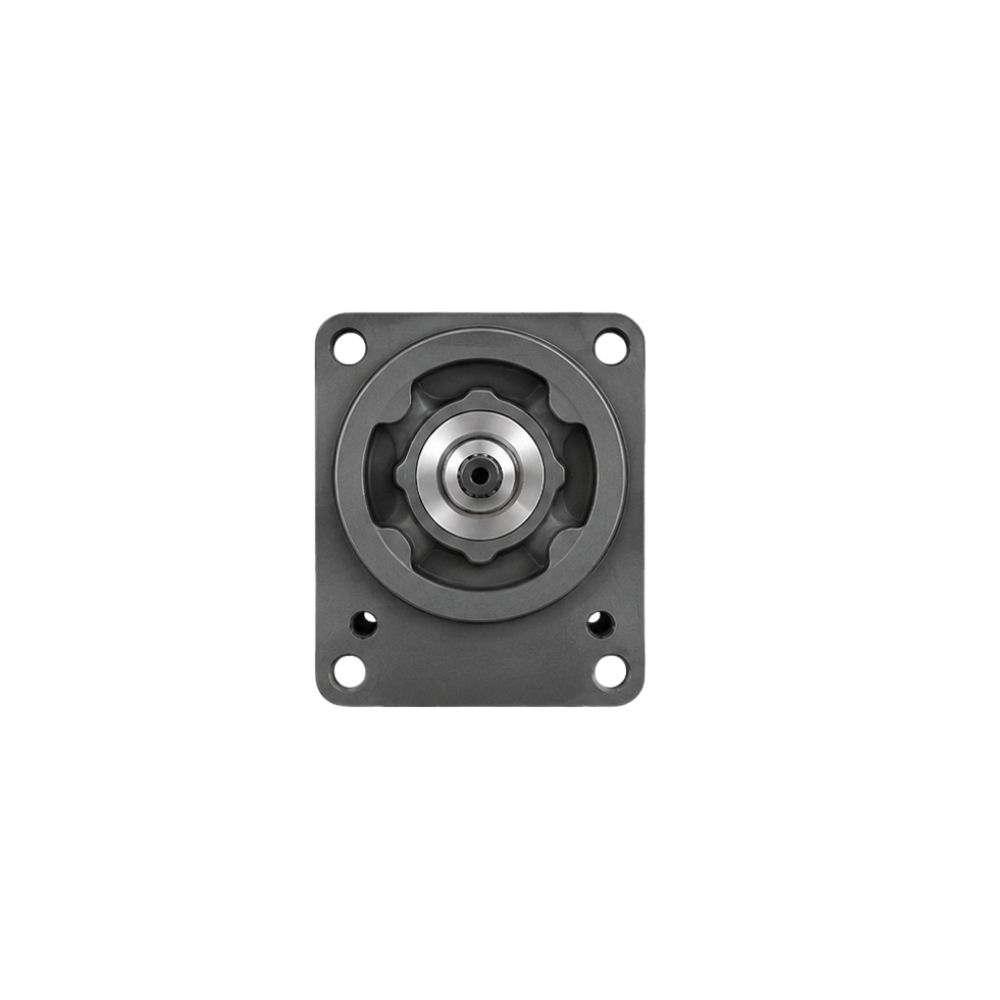

AZPW – Rexroth Gear Pumps
The Bosch Rexroth AZPW Series is a premium line of high-performance, fixed-displacement external gear pumps built on the rugged Platform F architecture. Engineered primarily for continuous, long-term operation, these units are a staple in both industrial machine manufacturing and mobile hydraulic machinery globally.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Bosch Rexroth AZPW Series consists of high-performance, fixed-displacement external gear pumps built on Platform F. Designed for long service life and reliable continuous operation, these pumps are heavily utilized across global industrial and mobile hydraulic systems.
| Parameter / Feature | Technical Specification & Design Detail |
|---|---|
| Platform | Platform F, fixed-displacement external gear pump |
| Displacement Range | 4.0 cc/rev to 22.5 cc/rev |
| Max. Continuous Pressure | Up to 190 bar |
| Optimal Viscosity | 20 to 100 mm2/s (Permissible: 12 to 800 mm2/s) |
| Fluid Temperature | -30°C to +80°C (NBR seals) / Up to +110°C (FKM seals) |
| Rotation Direction | Clockwise or counter-clockwise options |
| 12-Tooth Cogs | Lowers flow pulsation and reduces operational noise |
| Heavy-Duty Bearings | Slide bearings that safely absorb high radial and axial forces |
| Pressure Sealing | Pressure-dependent gap sealing for high volumetric efficiency |
| Mounting & Ports | Standardized ISO/SAE shafts with flexible flange or thread ports |
