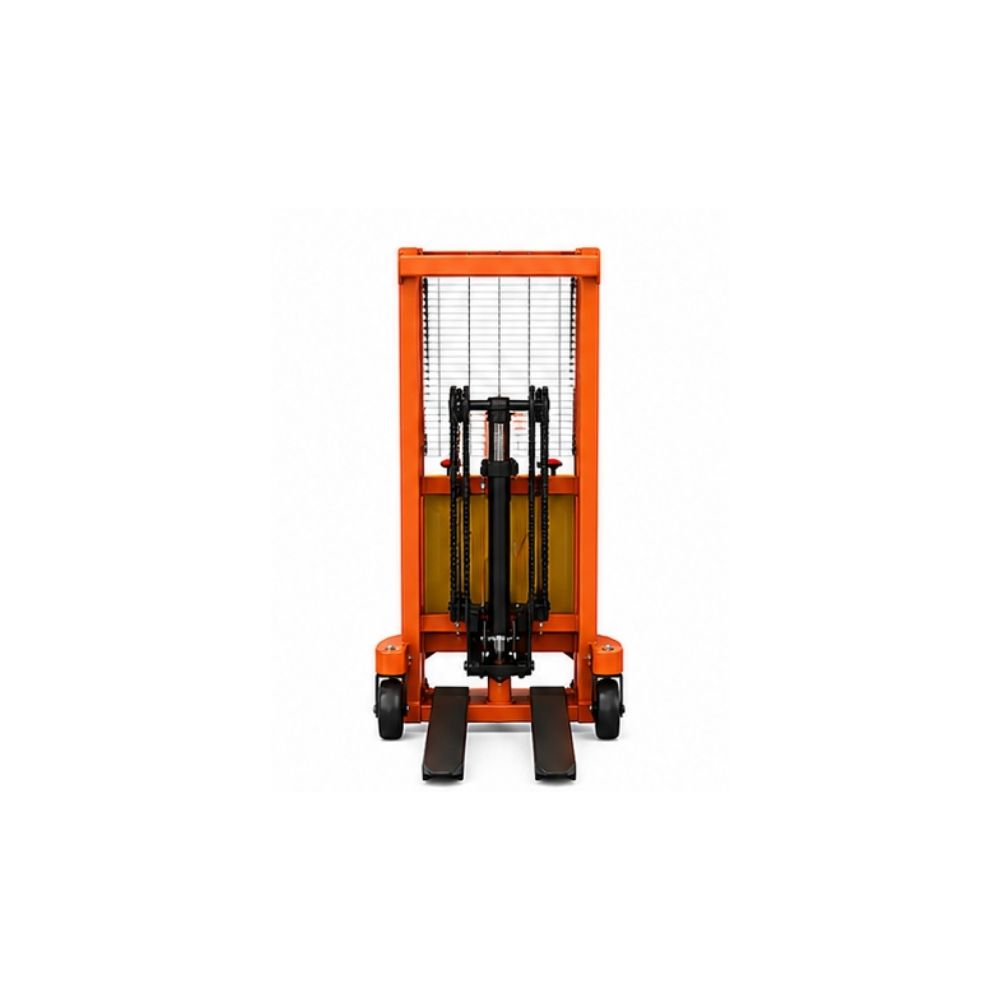

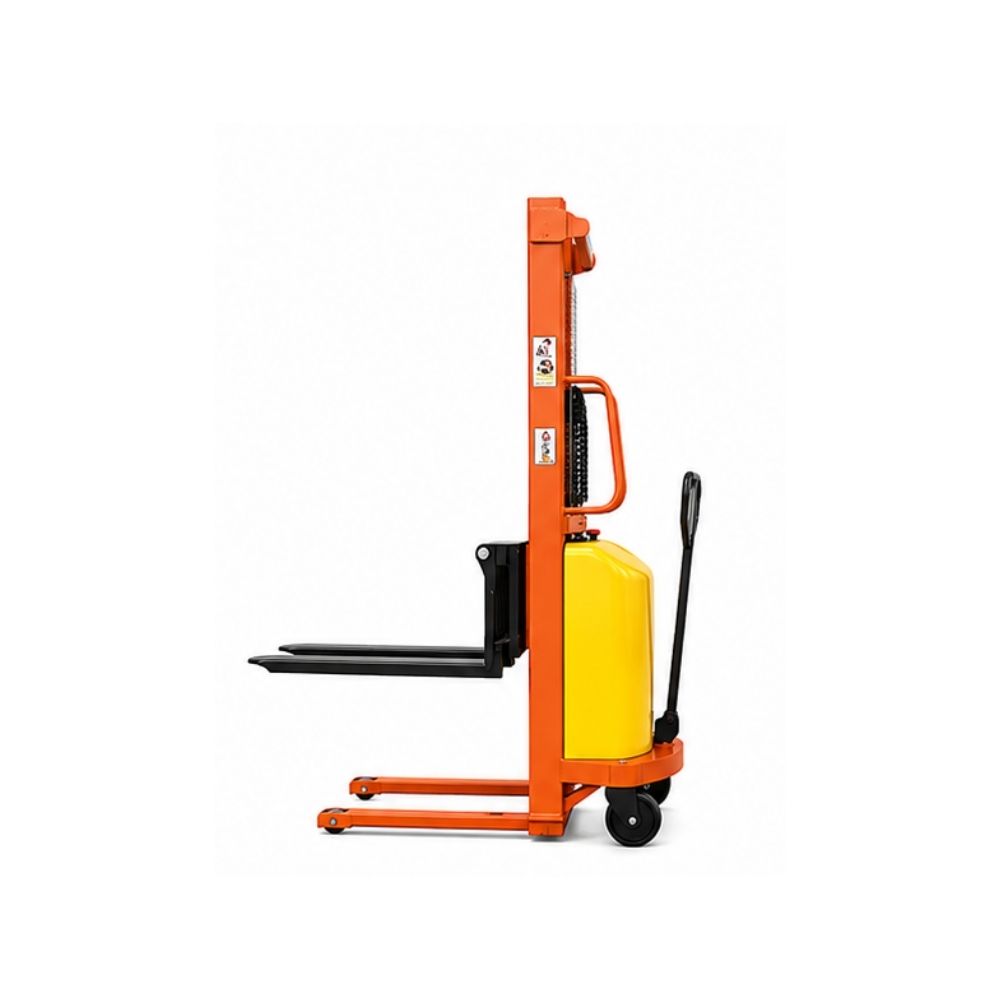

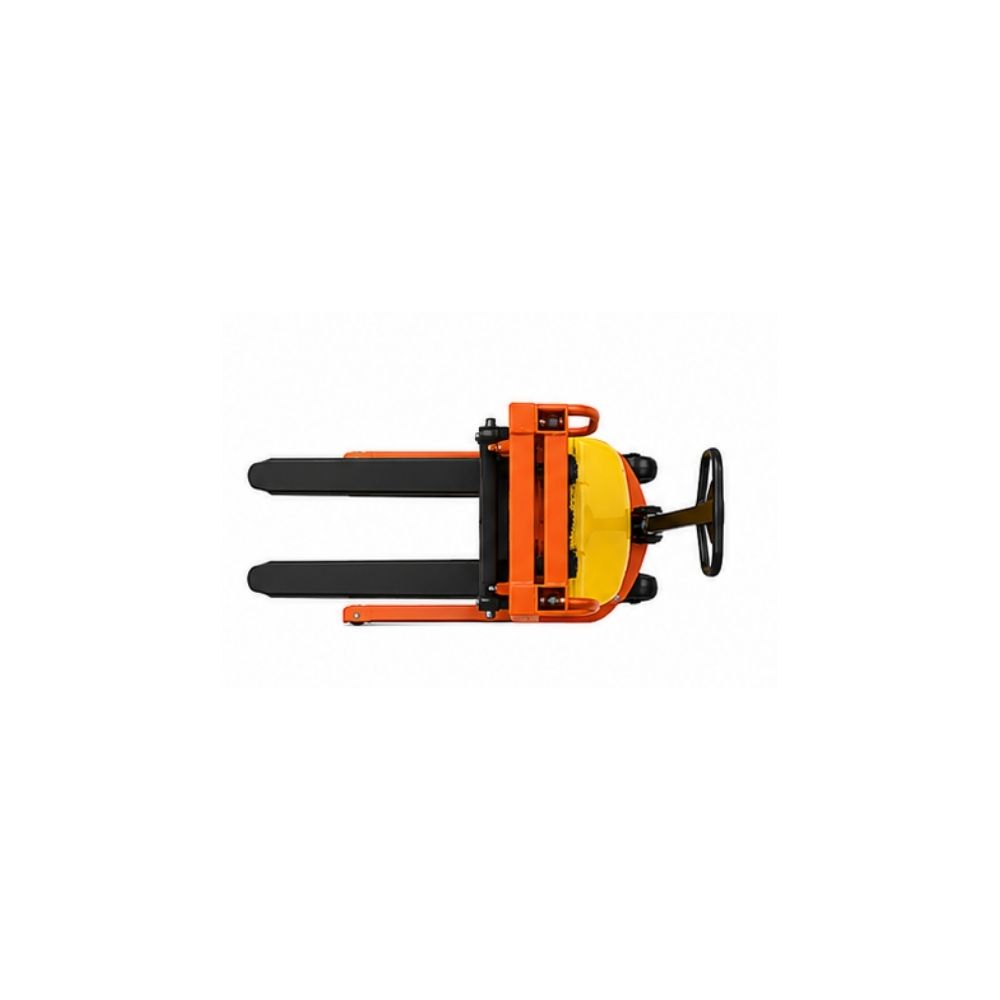

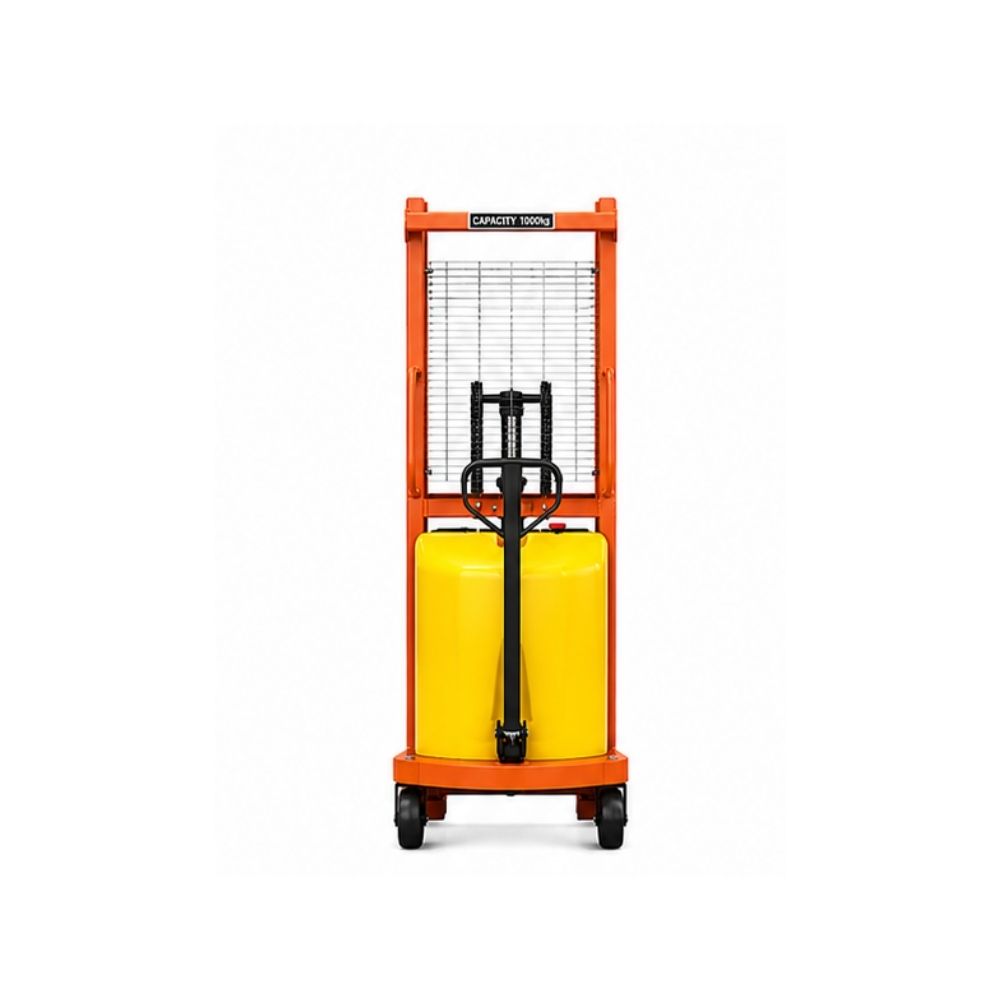

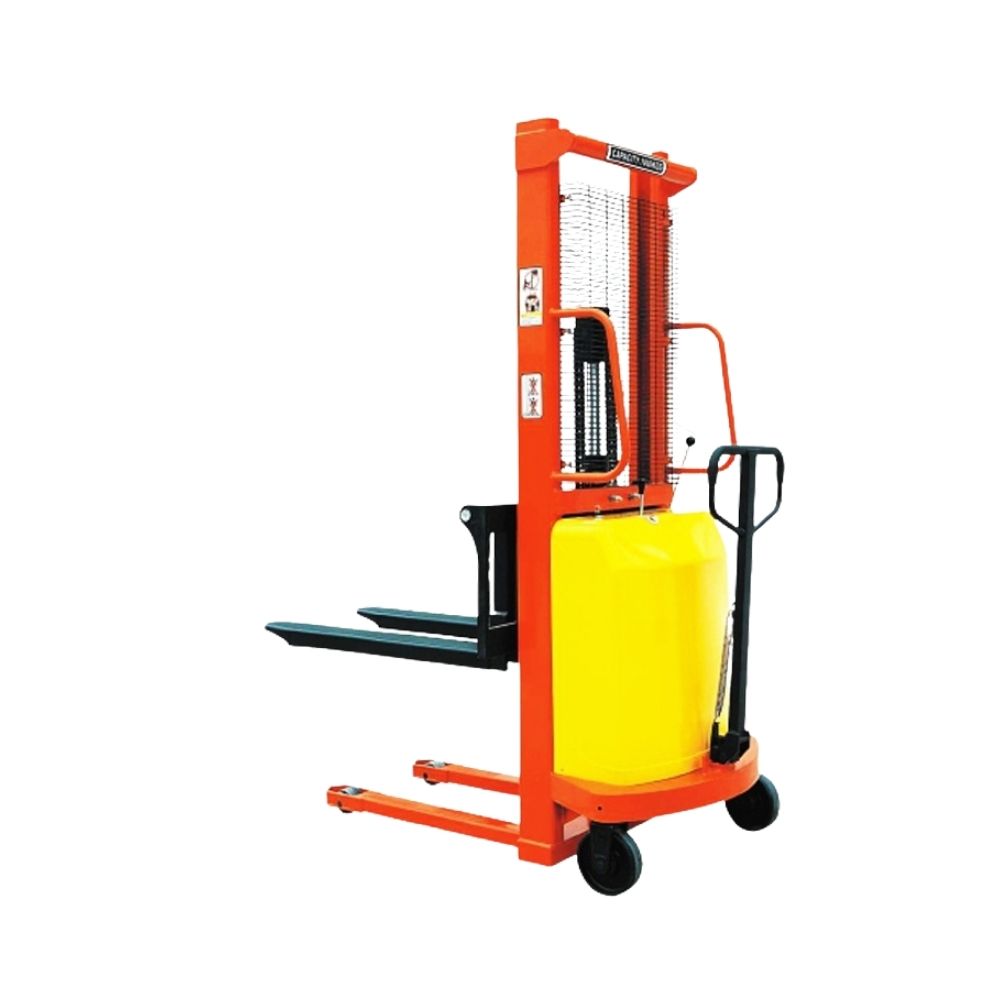

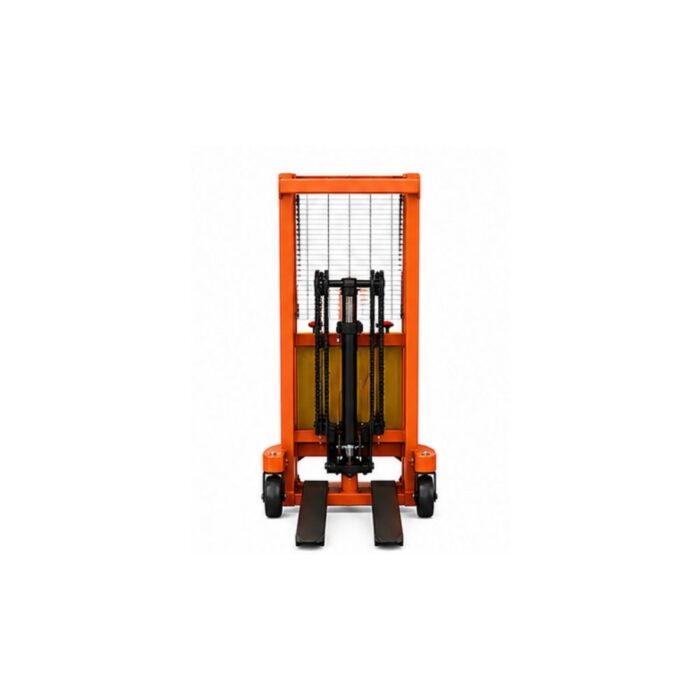

WSEM Series Semi-Electric Stacker
The Vankos WSEM Series is a semi-electric pallet stacker designed for efficient warehouse lifting. It uses a battery-powered motor to lift loads effortlessly with the push of a button, while the operator pushes and steers the unit manually. It is a budget-friendly, compact alternative to expensive forklifts, ideal for lifting heavy loads in tight spaces.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Vankos WSEM Series Semi-Electric Stacker is a robust warehouse solution engineered by Vankos Material Handling Equipment. It eliminates manual pumping by utilizing an electric motor and a hydraulic pump to lift loads effortlessly, while steering and mobility remain manual. This design offers a cost-effective middle ground between fully manual stackers and expensive fully electric forklifts.
| Model | WSEM10-16 040710160 |
WSEM15-16 040715160 |
WSEM20-16 040720160 |
|
|---|---|---|---|---|
| CAPACITY | Kg | 1000 | 1500 | 2000 |
| LOAD CENTER | mm | 400 | ||
| MAX. FORK HEIGHT (H) | mm | 1600 | ||
| FORK LENGTH | mm | 1150 | ||
| FORK WIDTH (E) | mm | 300 ~ 850 | ||
| MIN. TURNING RADIUS® | mm | 1350 | ||
| WHEEL BASE (Y) | mm | 1800 | ||
| FRONT-WHEEL DISTANCE | mm | 472 | ||
| LIFTING MOTOR | V/KW | 12 / 1.6 | ||
| STORAGE BATTERY | V/Ah | 12 / 120 | ||
| CHARGER | V/A | 12 / 15 | ||
| OVERALL LENGTH (A) | mm | 1820 | ||
| OVERALL WIDTH (B) | mm | 865 | ||
| OVERALL HEIGHT (H) | mm | 2080 | ||
| OVERALL NET WEIGHT | Kg | 350 | 365 | 390 |
