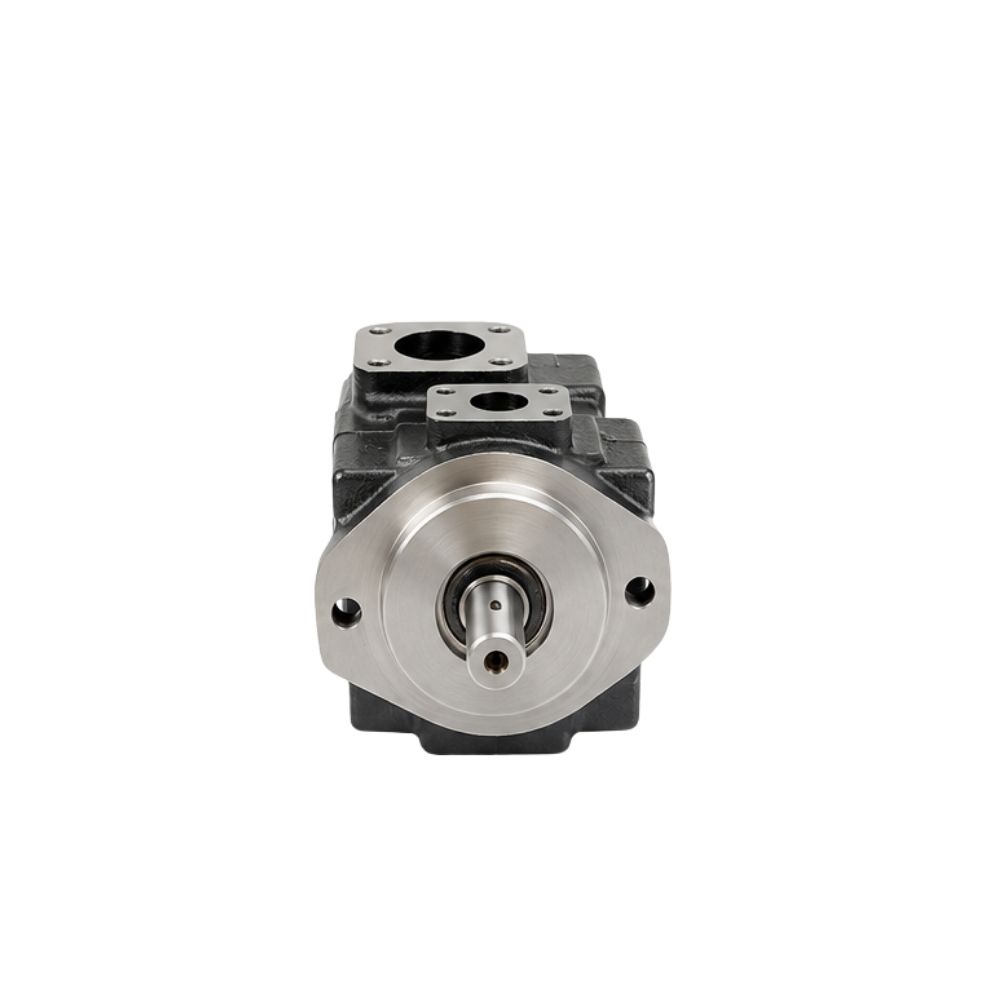

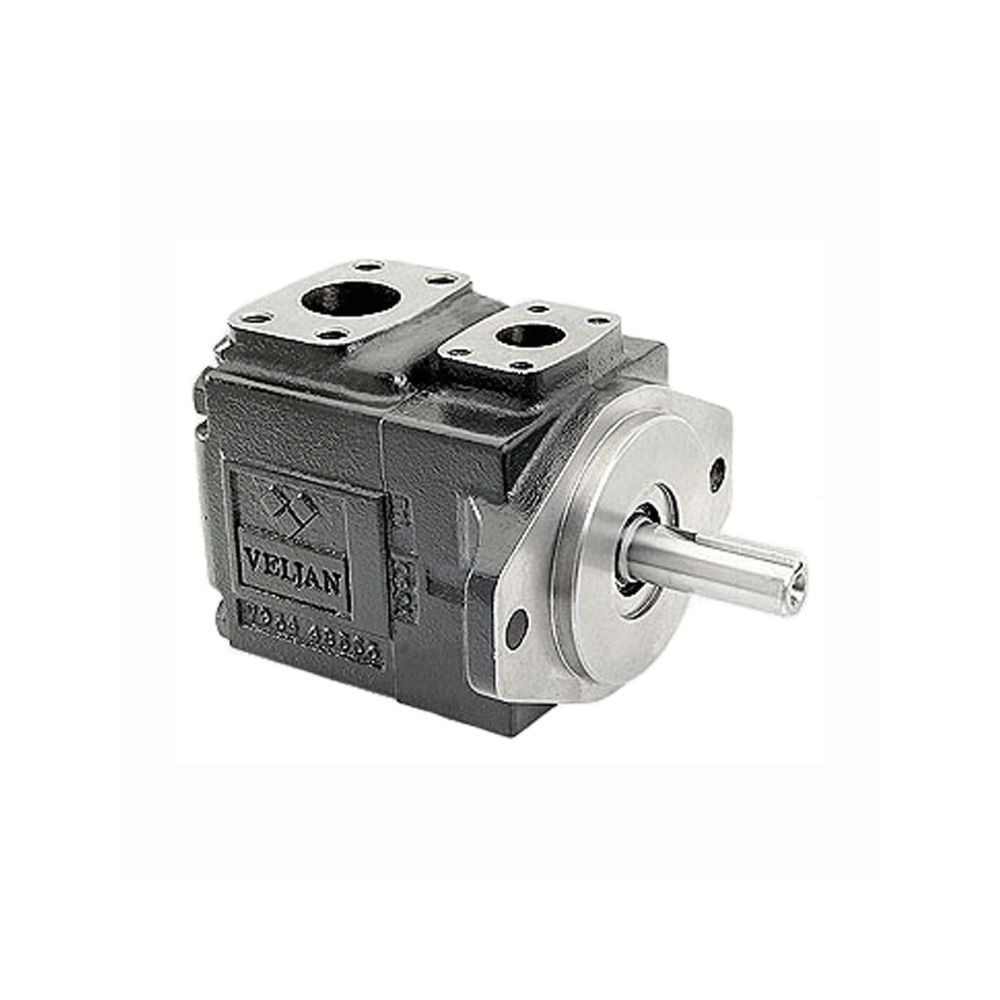

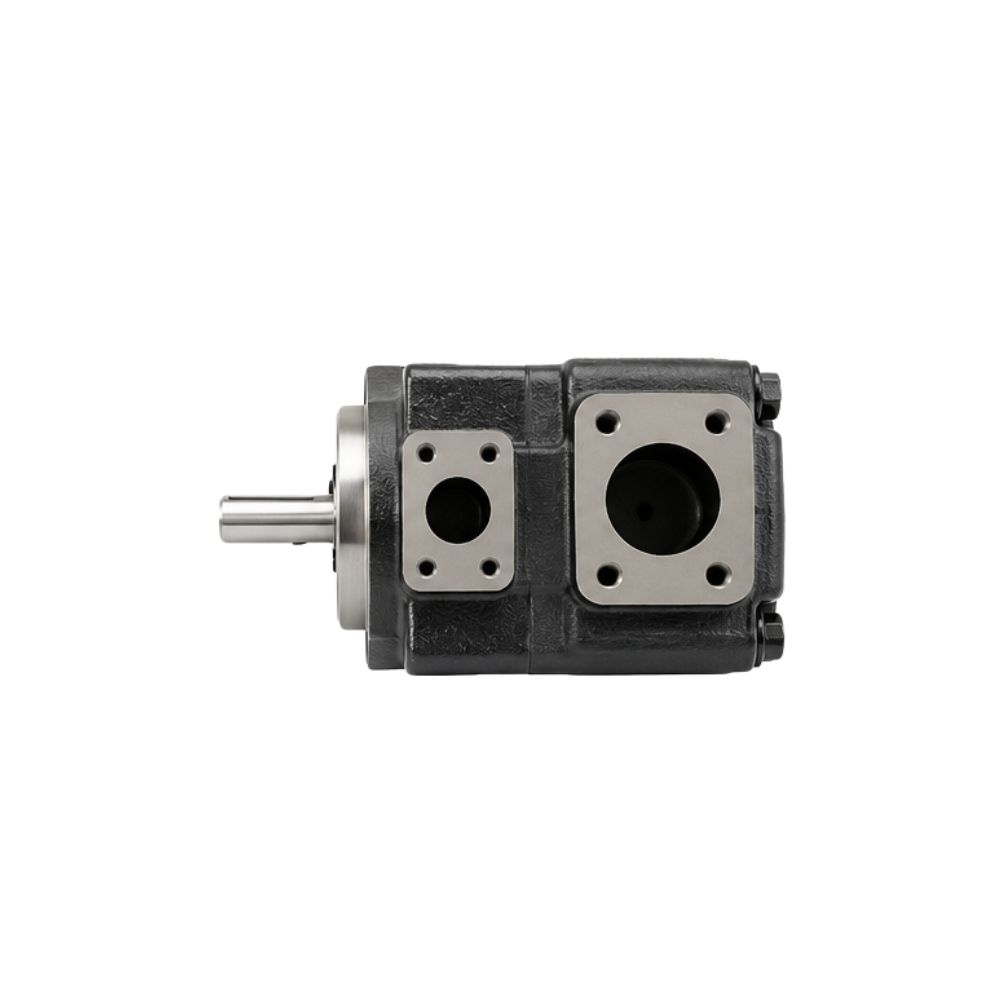

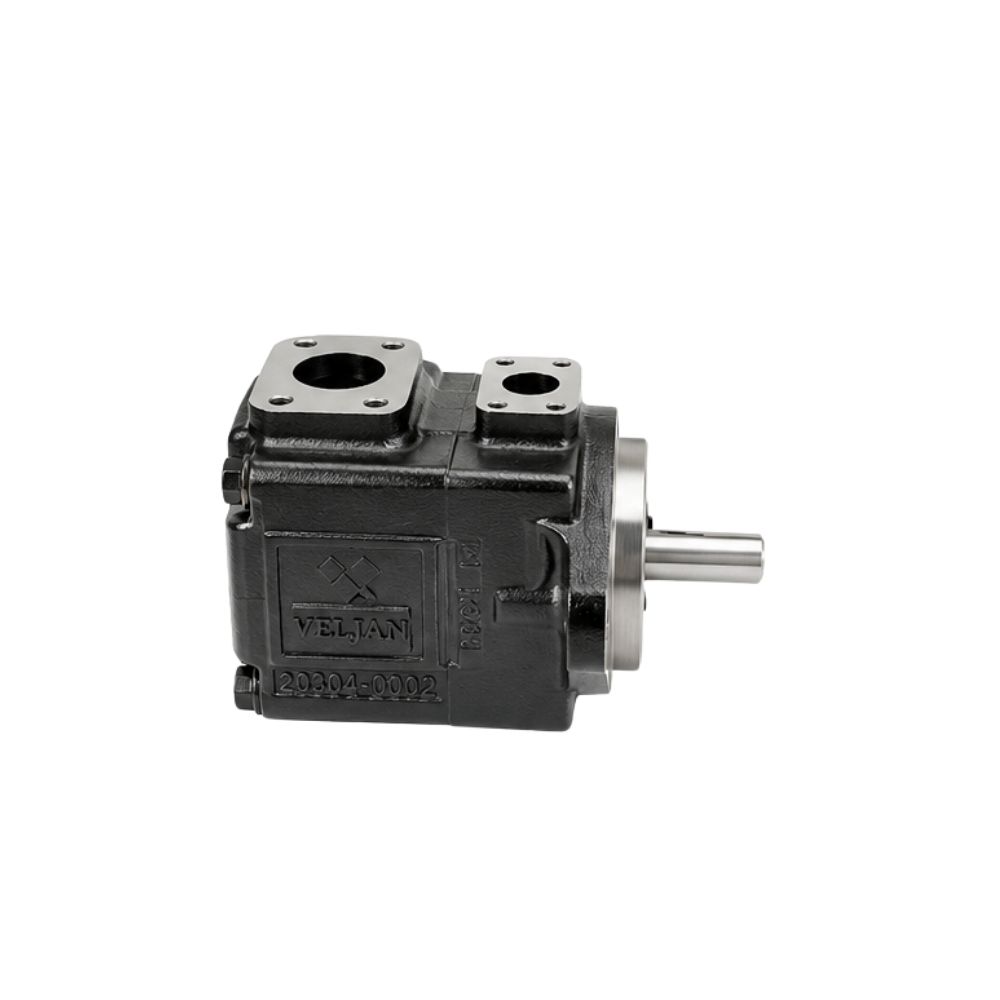

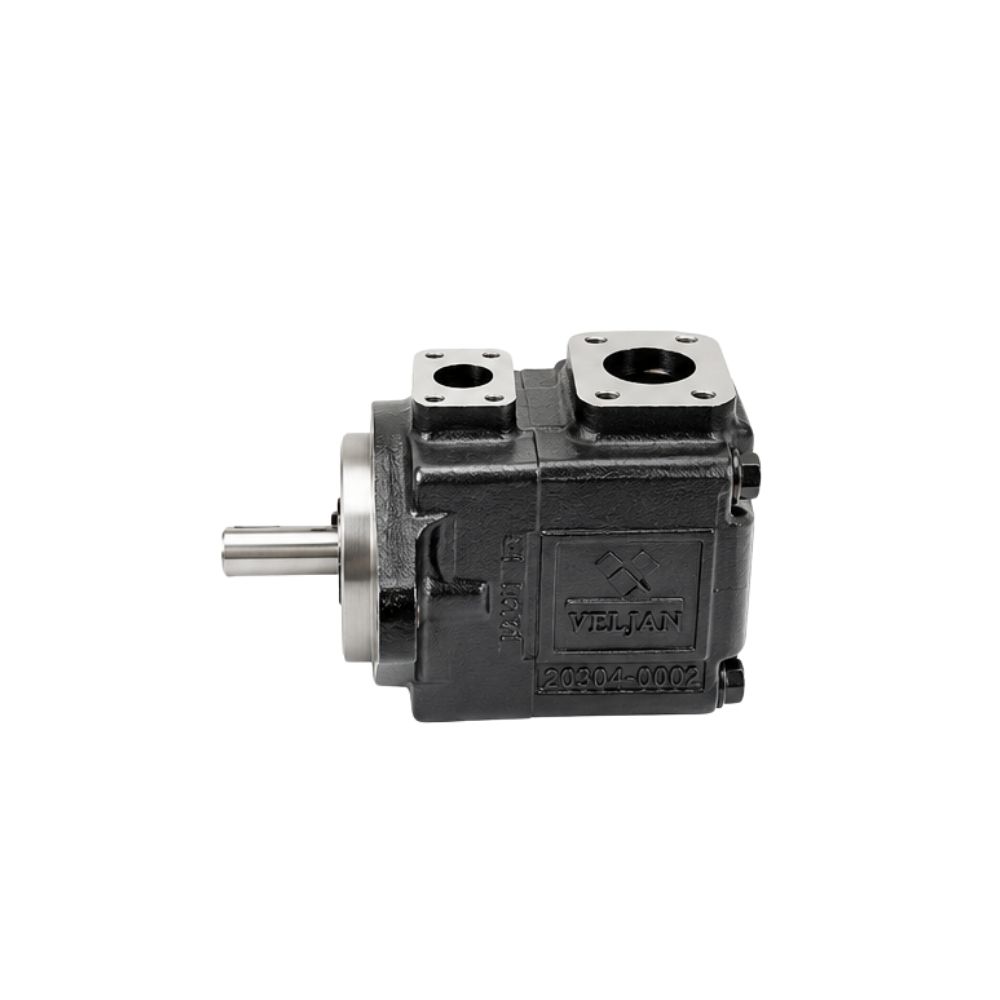

VT6C – Hydraulic Vane Pump
The Veljan VT6C is a heavy-duty, fixed-displacement hydraulic single vane pump designed for high-pressure industrial and mobile machinery. Built with a rugged cast-iron housing and a balanced pin-vane design, it serves as a highly reliable, direct drop-in replacement for the industry-standard Denison T6C series.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Veljan VT6C Hydraulic Vane Pump is a high-performance, fixed-displacement pin-vane single pump engineered for industrial and mobile applications. Manufactured by Veljan, this heavy-duty cast iron pump serves as a direct functional equivalent to the popular Denison T6C series.
| Feature / Parameter | Specification / Benefit Description |
|---|---|
| Maximum Pressure | Up to 4,000 psi (275 bar) for high-pressure operations. |
| Displacement Range | 0.66 to 6.10 in3/rev (11 to 100 cm3/rev) via interchangeable cam rings. |
| Maximum Speed | Up to 2,800 RPM depending on fluid viscosity and suction. |
| Mounting Standard | Standard SAE – B 2-bolt flange mount. |
| Volumetric Efficiency | Typically 94%, reducing internal heat and energy draw. |
| Maintenance Design | Drop-In Cartridge allows quick field repair without removing the pump. |
| Noise Level | Low Noise Operation due to multi-vane setup and cast iron housing. |
| Fluid Compatibility | Works with mineral oils, water glycols, and phosphate esters. |
| Port Flexibility | 4 different staggered positions for flexible inlet/outlet orientation. |
