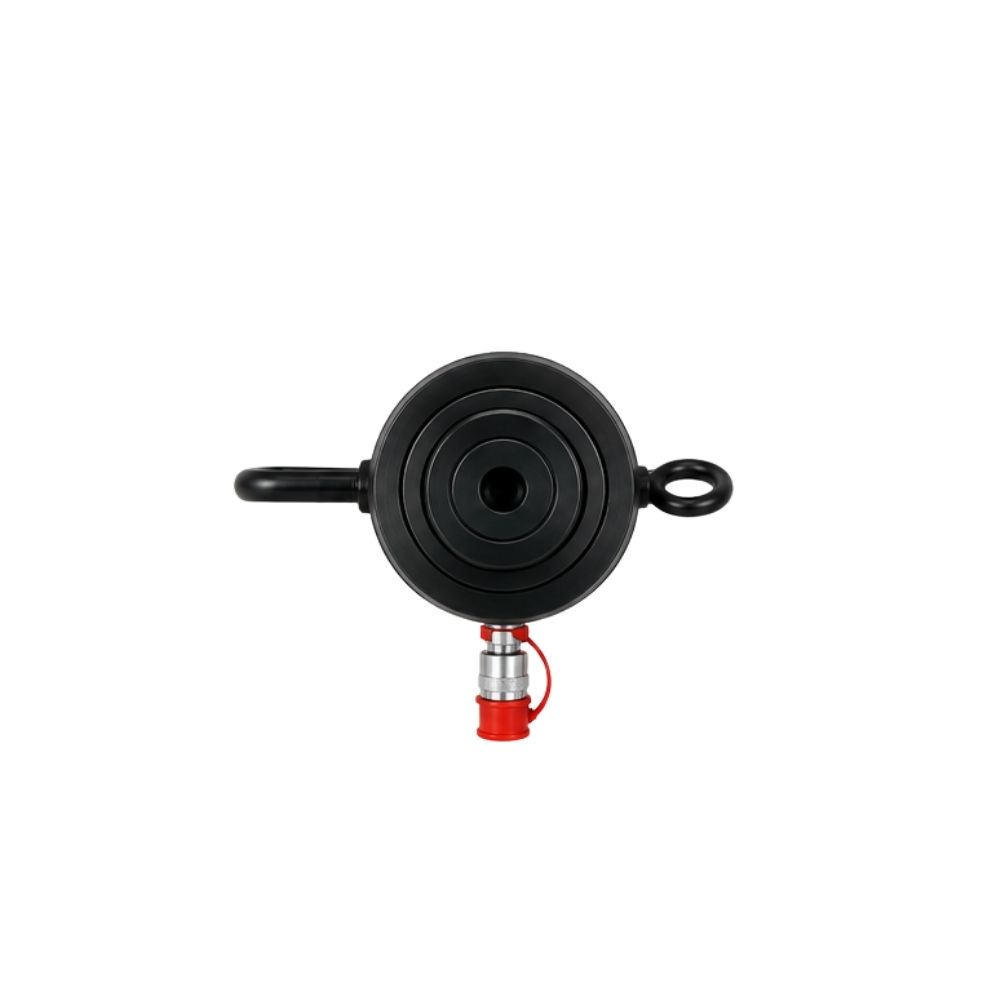

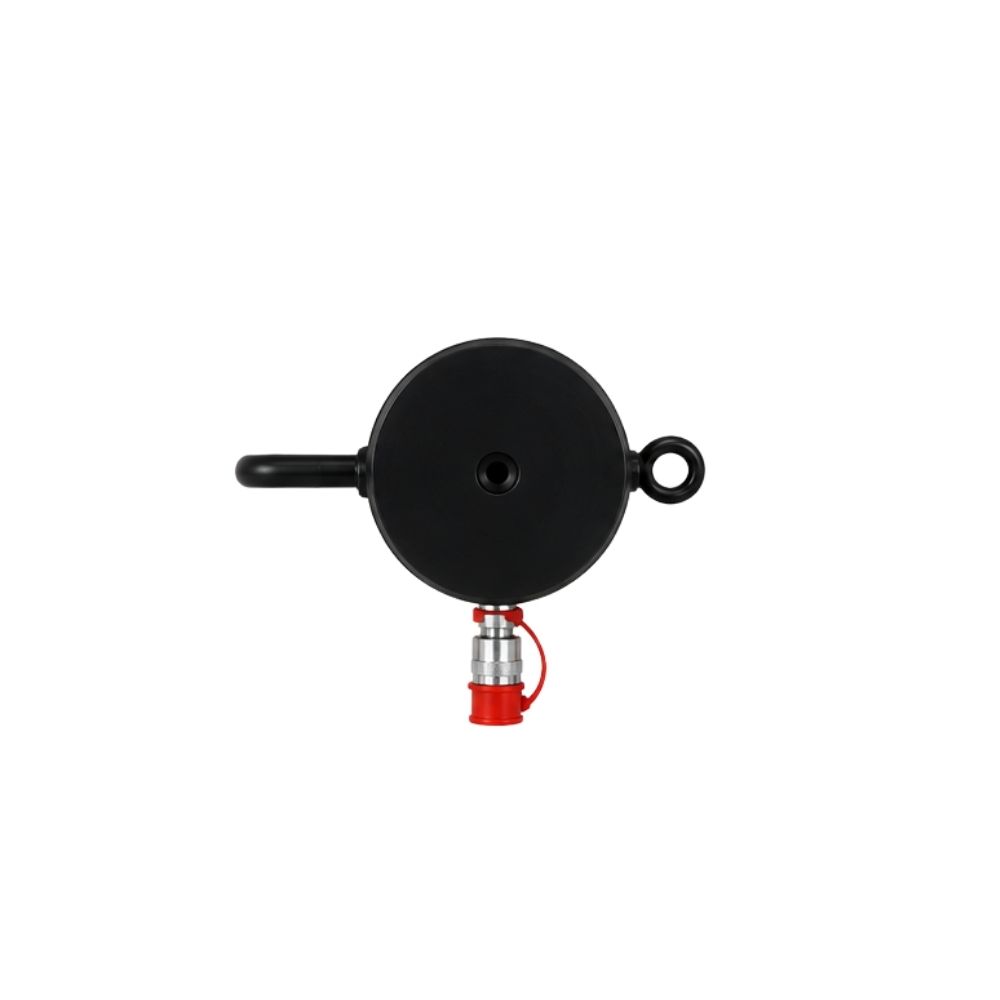

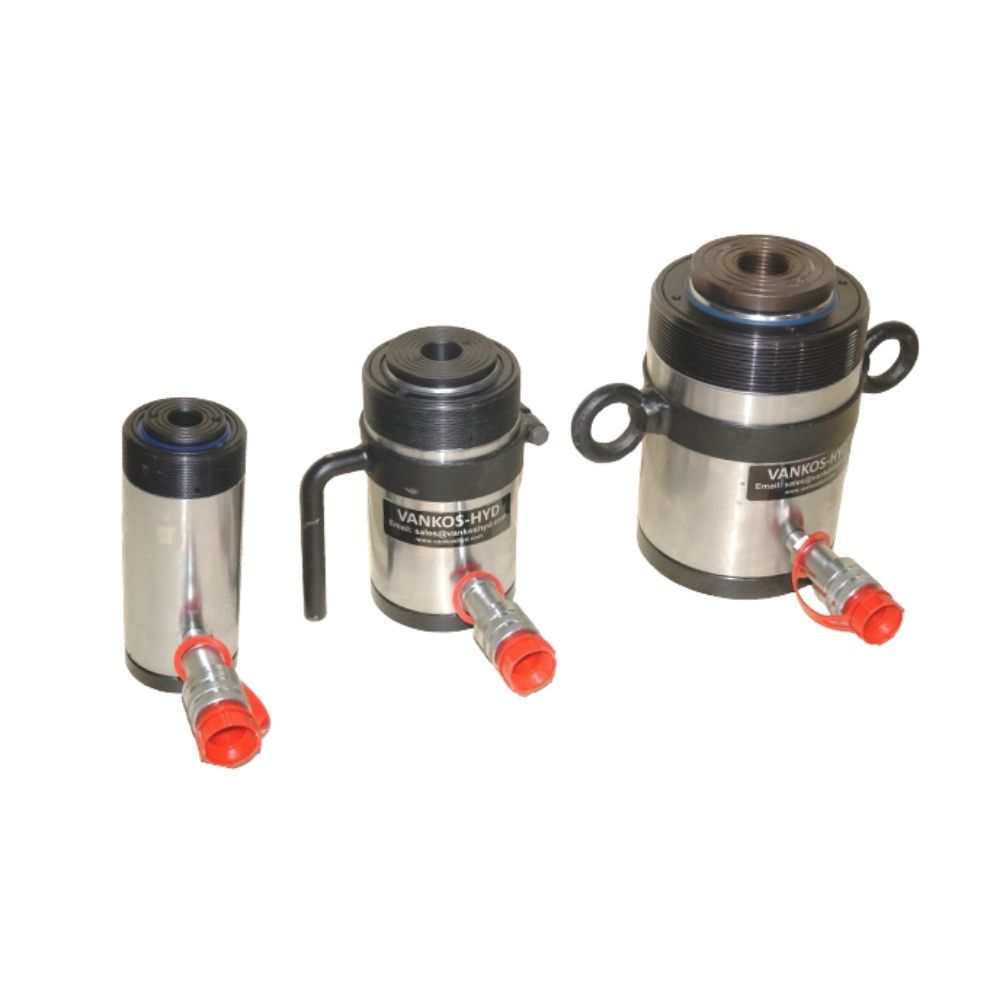

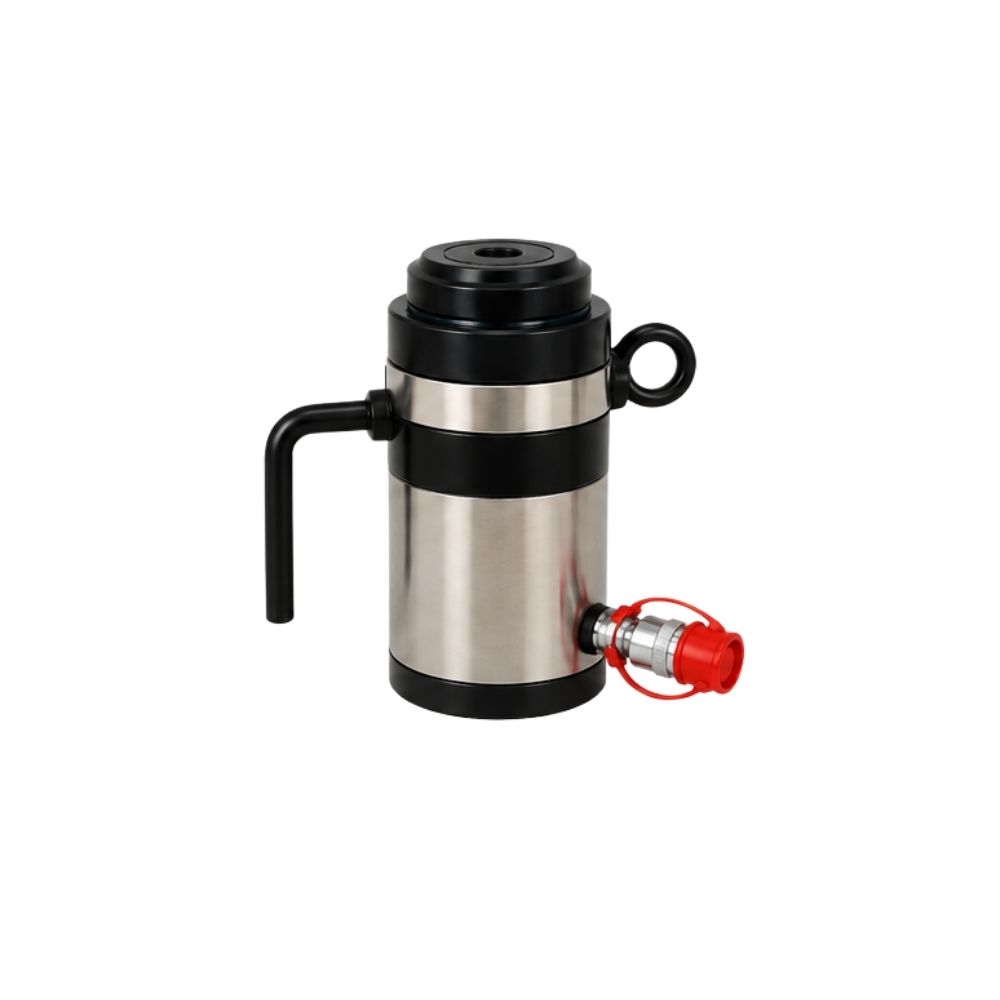

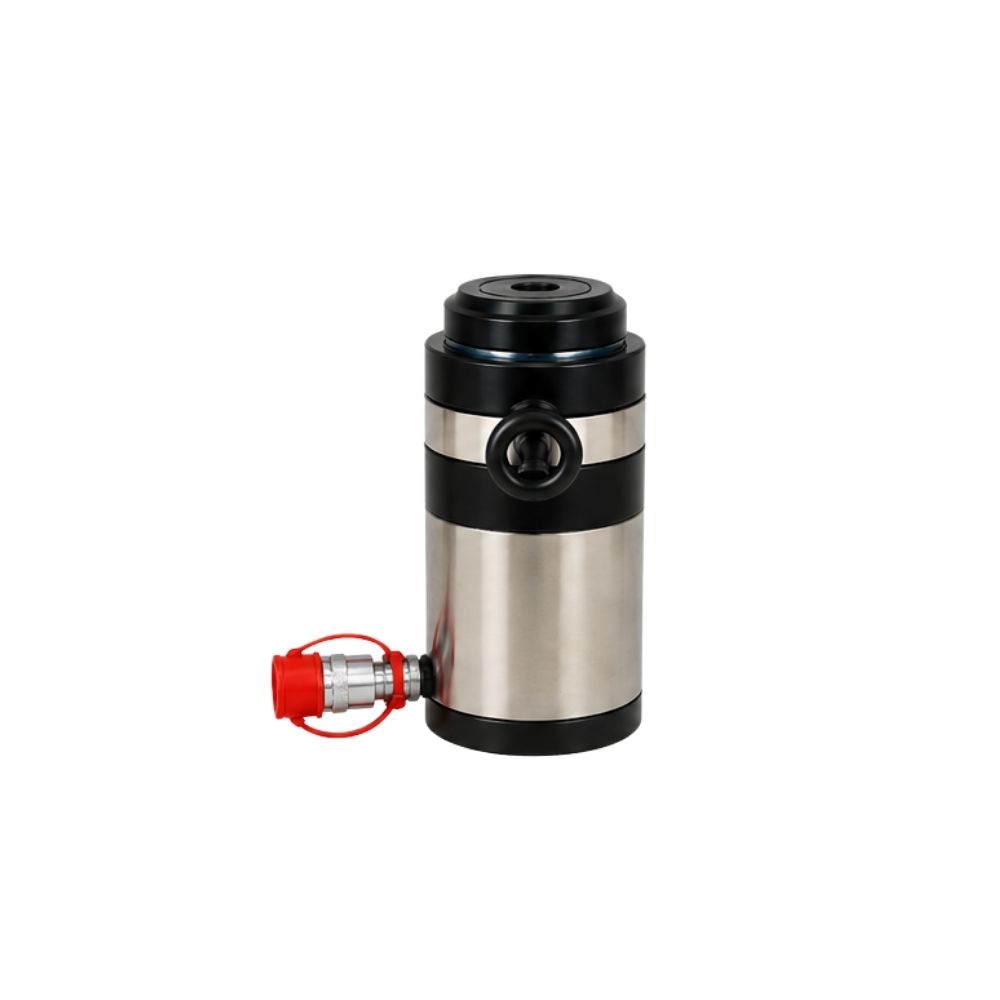

VHRSA Hollow Ram
The VANKOS VHRSA is a heavy-duty, single-acting hydraulic jack featuring a hollow center through-hole plunger. This specialized design allows rods, cables, or pulling screws to pass through the cylinder, enabling the tool to perform both pushing and high-force tension-pulling tasks. Operating at up to 700 BAR, it utilizes an internal spring for quick retraction and features a durable chrome-plated piston for harsh industrial environments.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The VANKOS VHRSA Series stands for Vankos Hollow Ram Single Acting hydraulic jacks, manufactured by the long-standing Indian precision industrial brand Vankos & Company. These specialised industrial cylinders feature a central through-hole configuration designed primarily to handle both pushing and tension-pulling applications.
| Feature / Specification | Technical Details |
|---|---|
| Manufacturer | Vankos & Company |
| Series Type | VHRSA (Vankos Hollow Ram Single Acting) |
| Action Mechanism | Single-acting cylinder with high-strength internal spring return |
| Maximum Operating Pressure | 700 BAR (10,000 PSI) |
| Core Design Feature | Hollow plunger / center through-hole configuration |
| Piston Surface Treatment | Hard chrome-plated piston surface for superior wear resistance and scoring protection |
| Primary Capabilities | Provides both pushing and tension-pulling force applications |
| Fluid Coupling | Standard high-pressure quick-connect hydraulic coupler |
