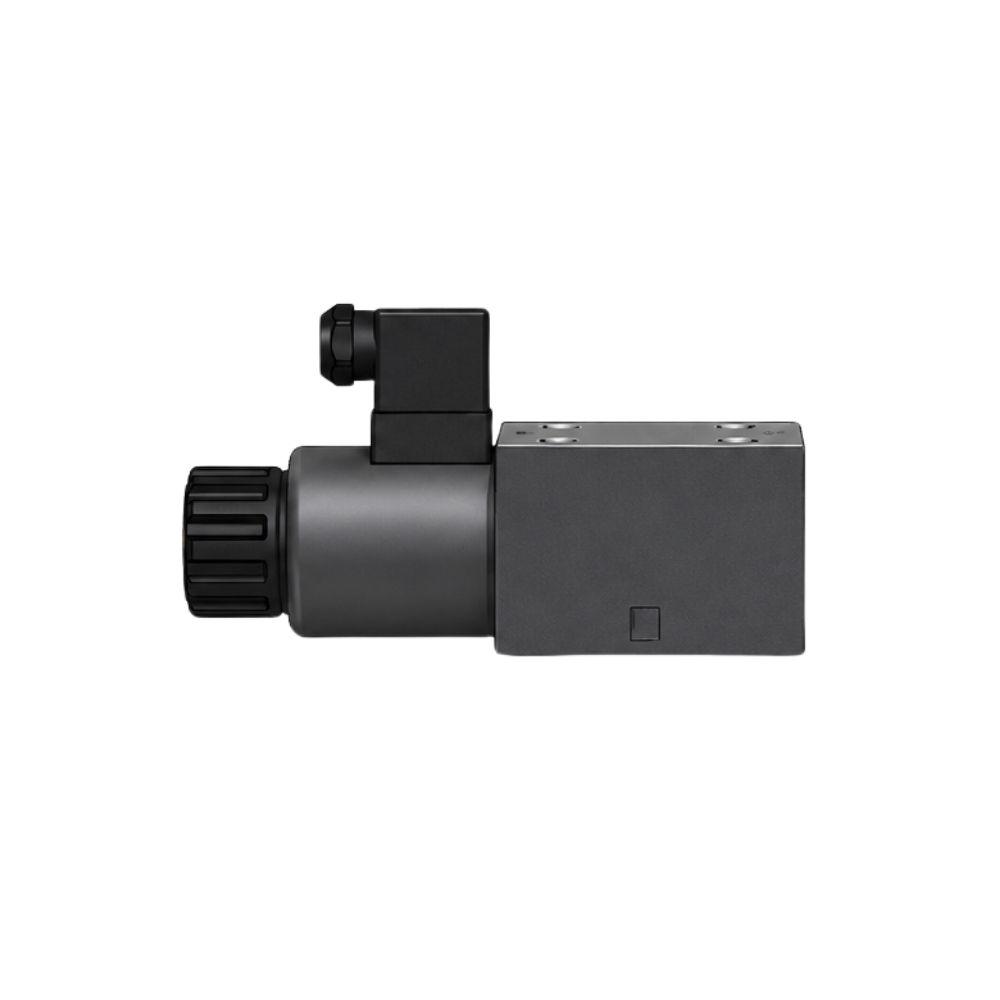

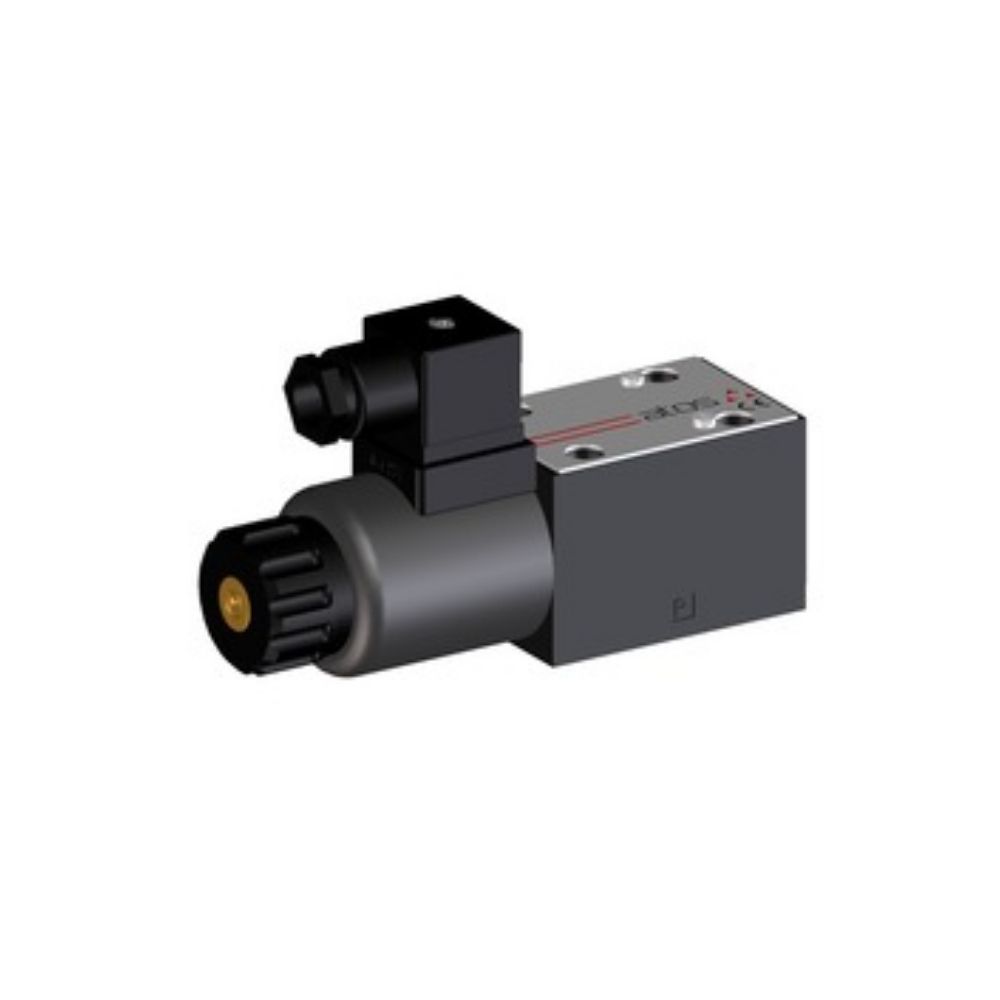

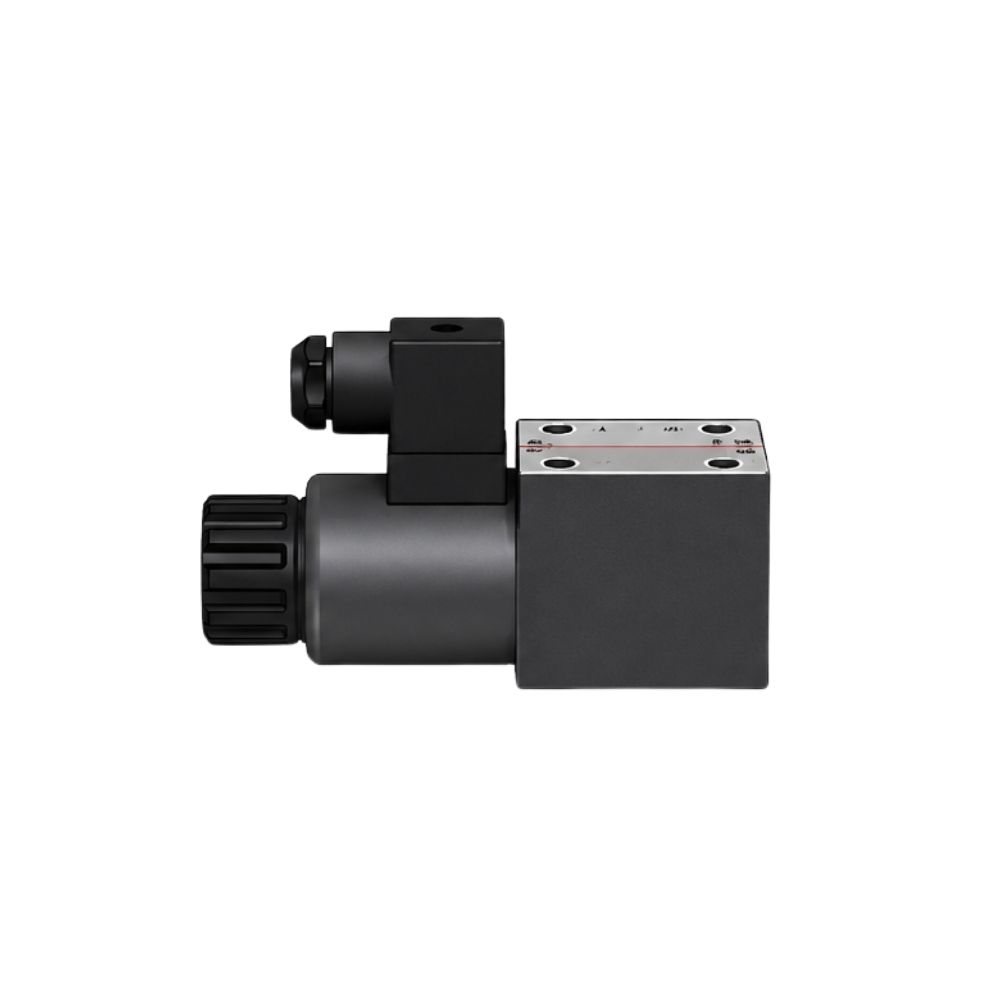

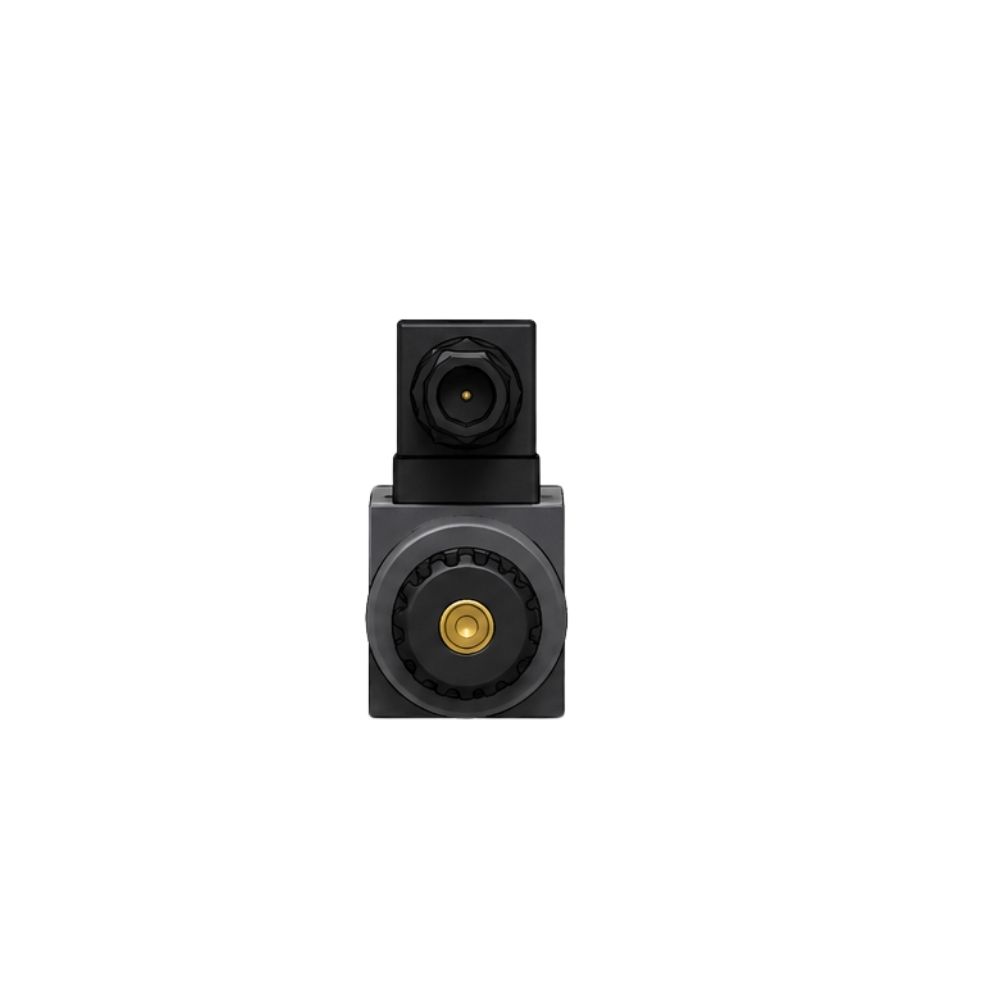

RZME-A, CART RZME-A
The Atos RZME-A and CART RZME-A are high-precision, direct-acting proportional pressure relief valves designed to control hydraulic pressure in direct proportion to an input electrical signal. They operate as open-loop components, meaning they rely on a steady electrical current from an external driver rather than built-in electronic feedback to manage system pressure.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Atos RZME-A and Atos CART RZME-A are poppet-type, direct-acting proportional pressure relief valves designed for open-loop pressure control systems. Manufactured by the Atos Group, these components do not include an integrated transducer (“-A” designation) and must operate alongside an off-board electronic driver. The driver provides the precise electrical current required to balance hydraulic pressure against the input reference signal.
| Parameter | Specification | Details / Conditions |
|---|---|---|
| Valve Type | Direct-acting poppet | Designed for open-loop pressure control |
| Max Flow Rate | 4 l/min | Minimum regulated flow is 20 cm3/min |
| Max Supply Pressure | 350 bar / 420 bar | Dependent on valve series execution |
| Regulated Pressure Ranges | 50, 100, 210, 315, 420 bar | Configured via the model code selection |
| Hysteresis | ≤ 1.5% | Of the maximum regulated pressure |
| Linearity | ≤ 1.5% | Of the maximum regulated pressure |
| Repeatability | ≤ 1.0% | Of the maximum regulated pressure |
| Coil Resistance | 3.2 Ω to 4.8 Ω | Standard 24 VDC coil at 20°C |
| Max Current | 2.5 A (24 VDC) / 3.2 A (12 VDC) | Maximum current from external driver |
