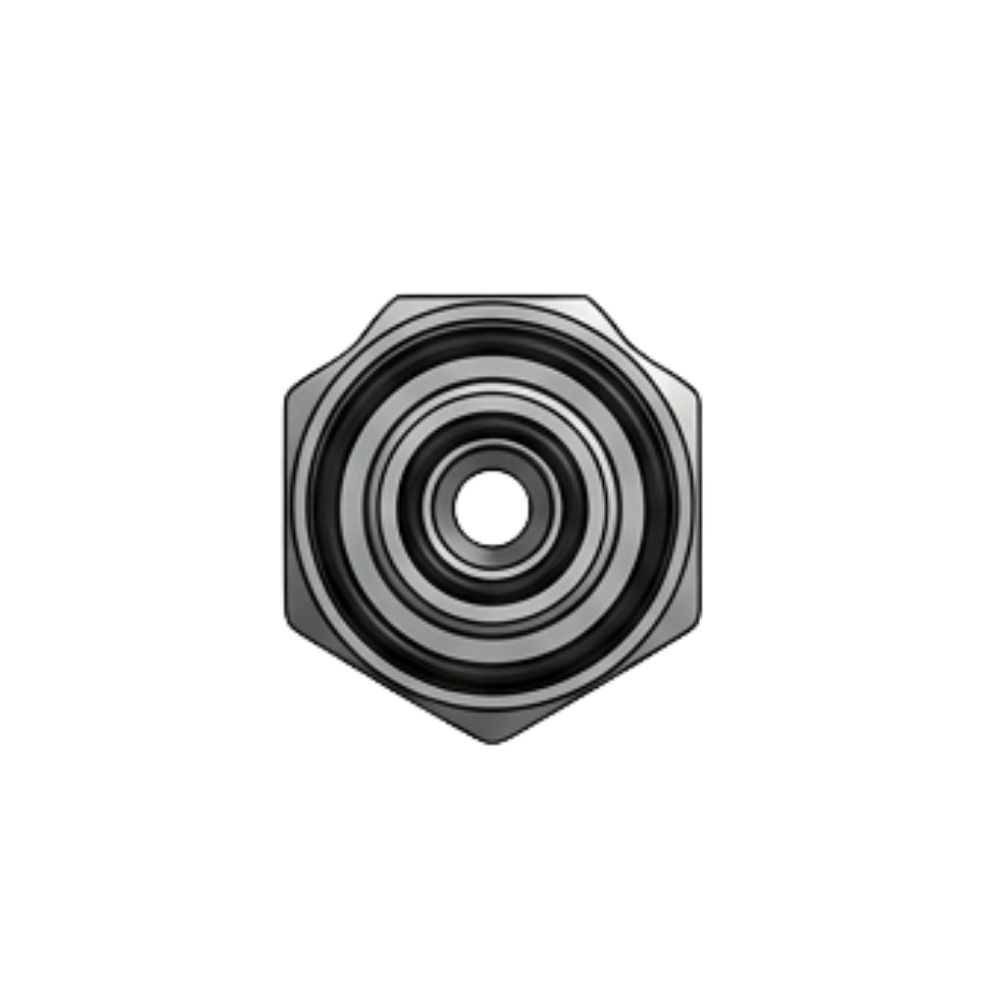

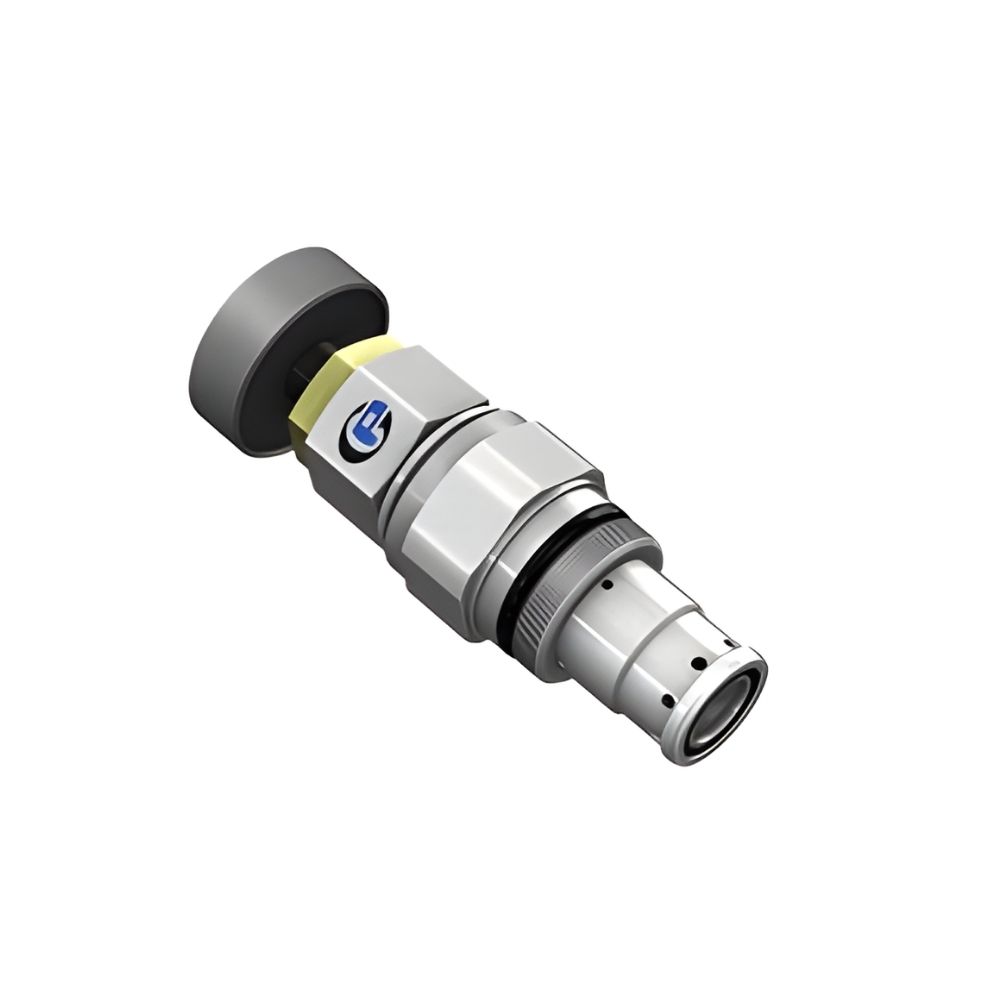

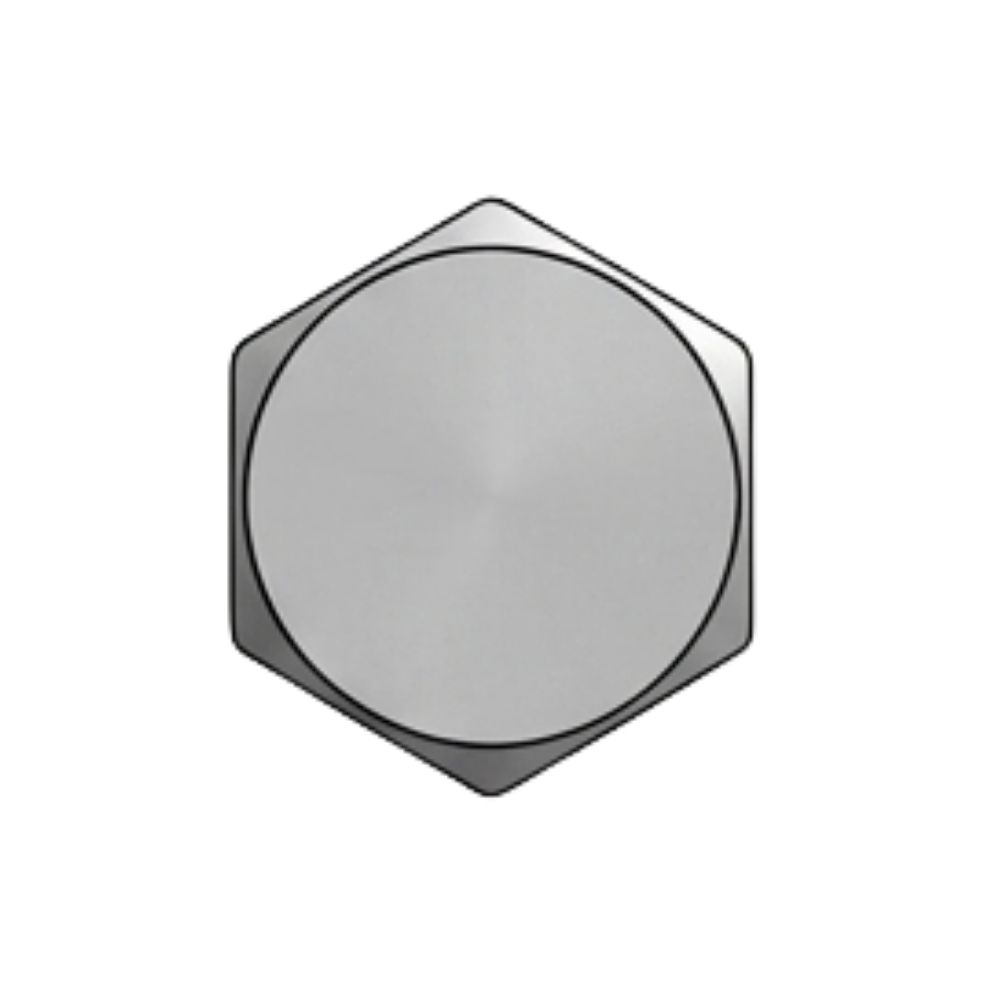

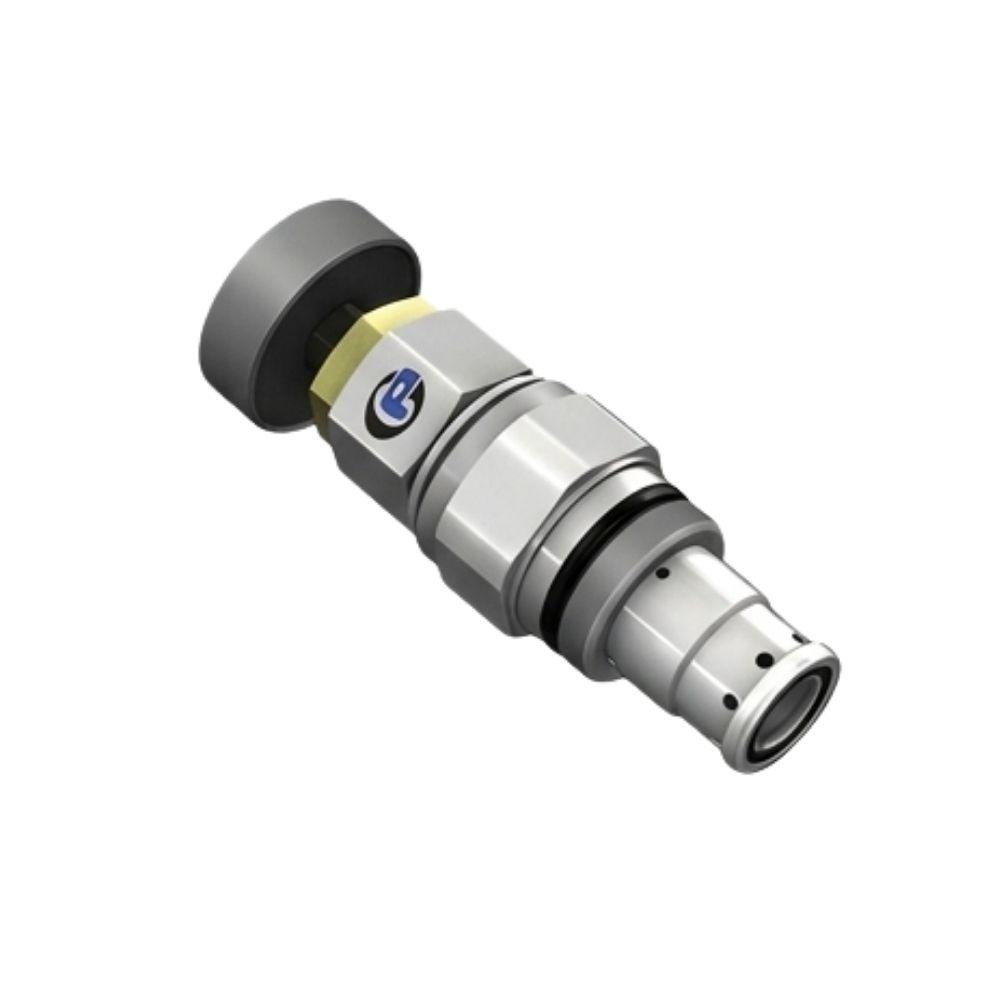

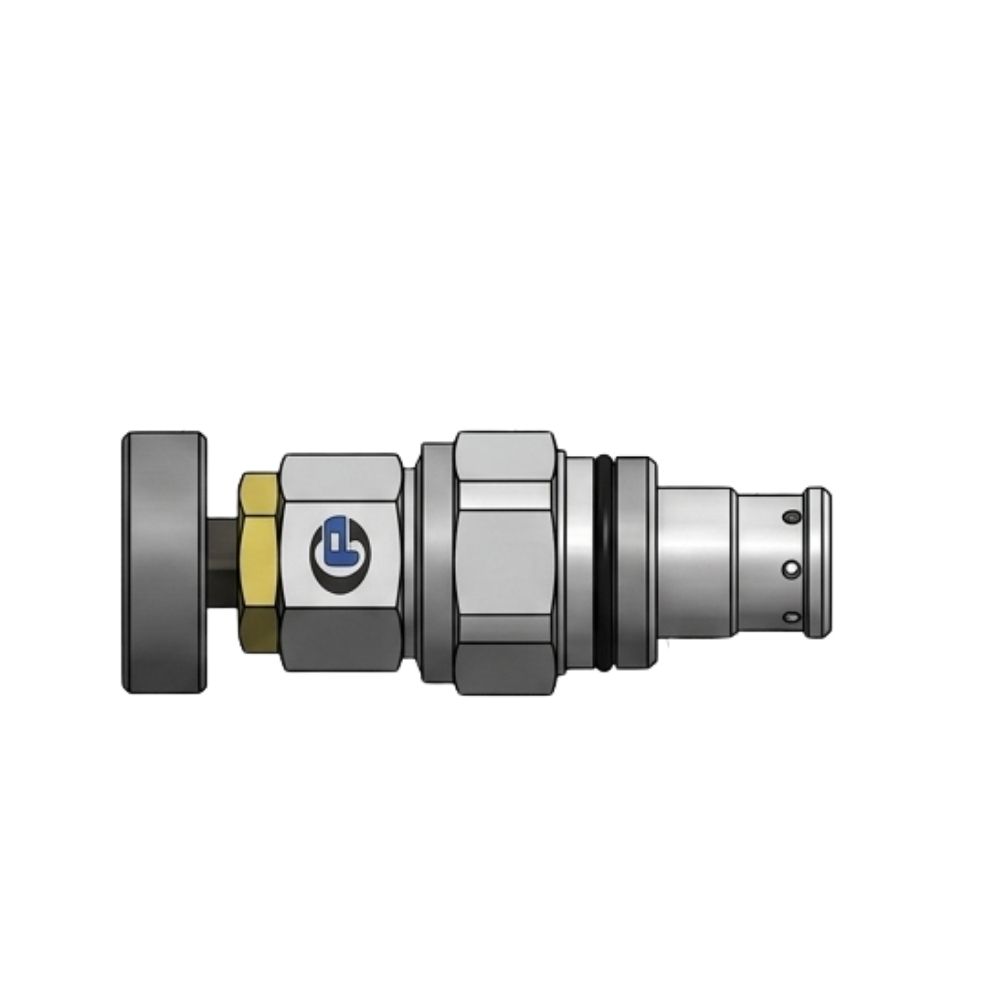

PPR 06K – Pilot Operated Pressure Relief Valves (Cartridge Type)
The Polyhydron PPR 06K is a pilot-operated, spool-type pressure relief valve designed in a cartridge format for high-performance hydraulic systems. It is known for its low pressure override due to a large flow area, ensuring system stability even during flow fluctuations
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Pilot Operated Pressure Relief Valves (Cartridge Type)-PPR 06K is a two-stage, spool-type pilot operated relief/reducing valve cartridge designed for stable and efficient pressure control. Its larger flow area ensures low pressure override, improving system performance.
The valve offers two pressure adjustment options: a set screw with lock nut or a hand knob with lock nut, allowing precise and secure settings. It is designed with an internal drain, which can be easily converted to an external drain based on application requirements.
The valve allows port A to be normally connected to port T, with control at port P or port B depending on the configuration. It is offered in four pressure ratings: 25, 50, 100, and 200 bar. An optional check valve module can be provided for free reverse flow.
Pressure adjustment can be done using a screw or hand knob, ensuring precise control and ease of operation.
| Nominal pressure and flow ratings | |||||||
|---|---|---|---|---|---|---|---|
| Model | Max. working pr. (bar) |
||||||
| Â Max. flow handling capacity | 30 l/min. | ||||||
| Â Max. setting pressure | 315 bar | ||||||
| Â Max. working pressure | 315 bar | ||||||
- Two-Stage Operation:Â Uses a pilot stage to control a larger main poppet, allowing for higher flow and more precise pressure regulation than direct-acting valves.
- Drainage: Standard models are internally drained, but some versions (like the PPR06*Y) can be converted to external drain by removing specific seals at Port T.
- Mounting:Â Designed to fit into a factory-standard cavity, making it easy to replace or install in tight spaces without extensive plumbing.
