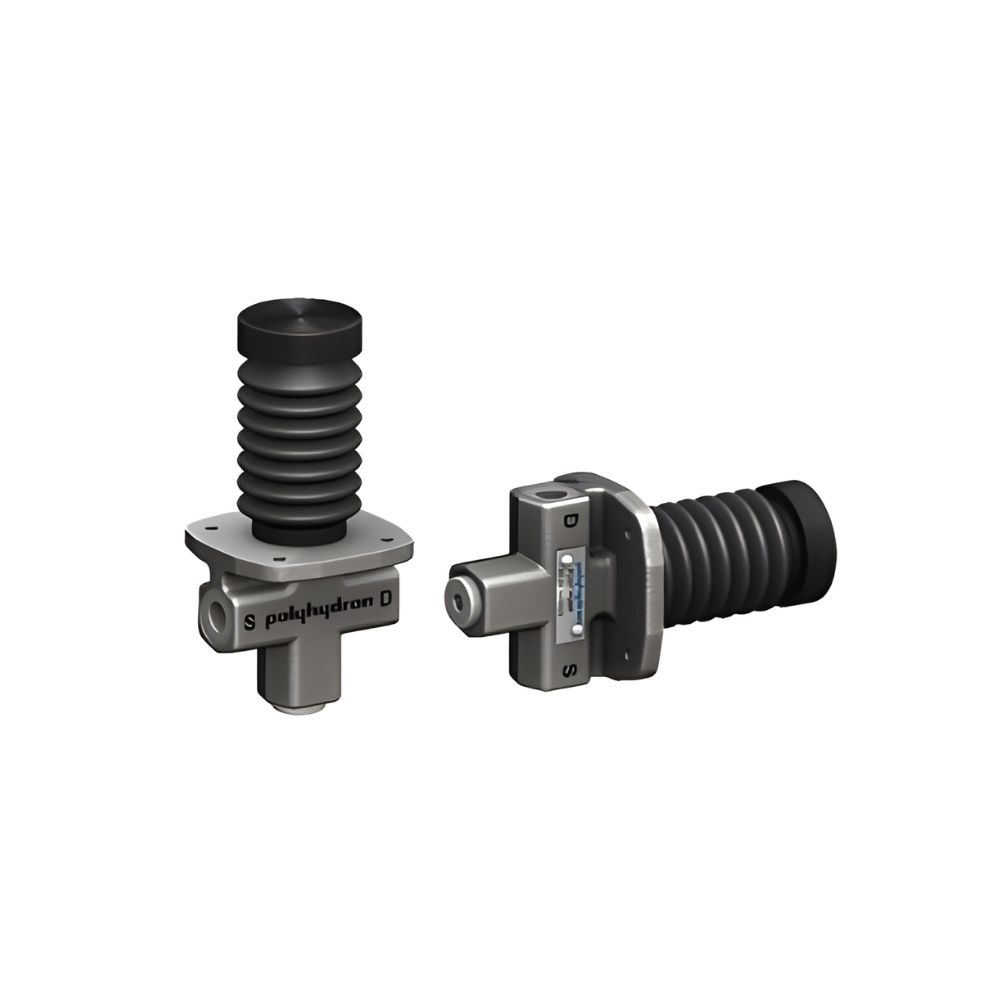

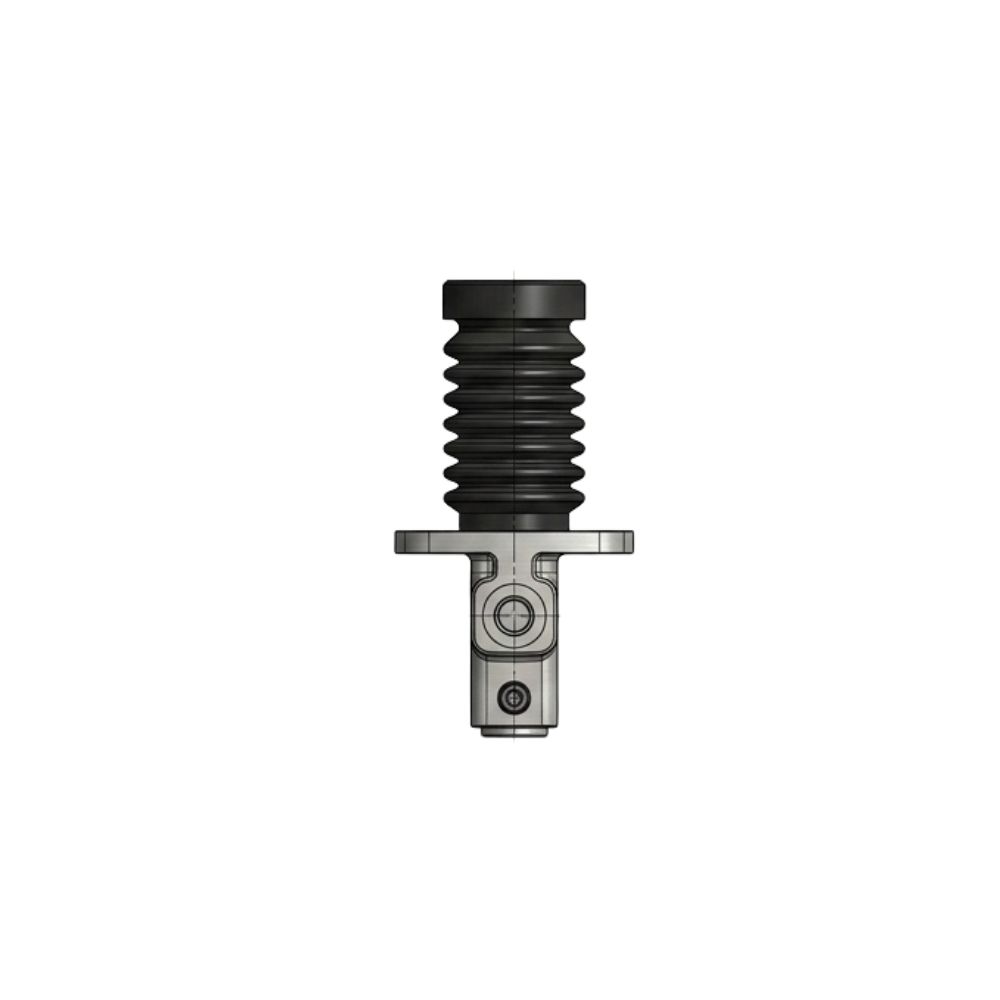

Foot Pump – FP-10
The Polyhydron Foot Pump (Model: FP-10) is a heavy-duty, plunger-type hydraulic pump designed specifically for supplying lubricating oil or providing pilot pressure in industrial systems [4, 5]. It operates on a positive displacement principle, making it a reliable choice for manual hydraulic applications [16].
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Polyhydron Foot Pump – FP is a heavy-duty unit designed with a hardened and ground plunger for durability and reliable performance. It features replaceable suction and delivery valve seats for easy maintenance and long service life. The pump is ideal for supplying lubricating oil or generating pilot pressure in hydraulic systems.
| Feature | Specification |
|---|---|
| Construction | Plunger type with hardened and ground plunger |
| Displacement | 2.35 cc per stroke |
| Max Operating Pressure | 35 bar |
| Operating Force (at 25 bar) | 250 N |
| Operating Force (at 35 bar) | 330 N |
| Max Suction Pressure | 100 mm of Hg |
| Hydraulic Medium | Mineral oil (ISO VG 68 recommended) |
| Viscosity Range | 10 cSt to 380 cSt |
| Fluid Temperature Range | -10°C to +80°C |
| Fluid Cleanliness | ISO 4406 20/18/15 or better |

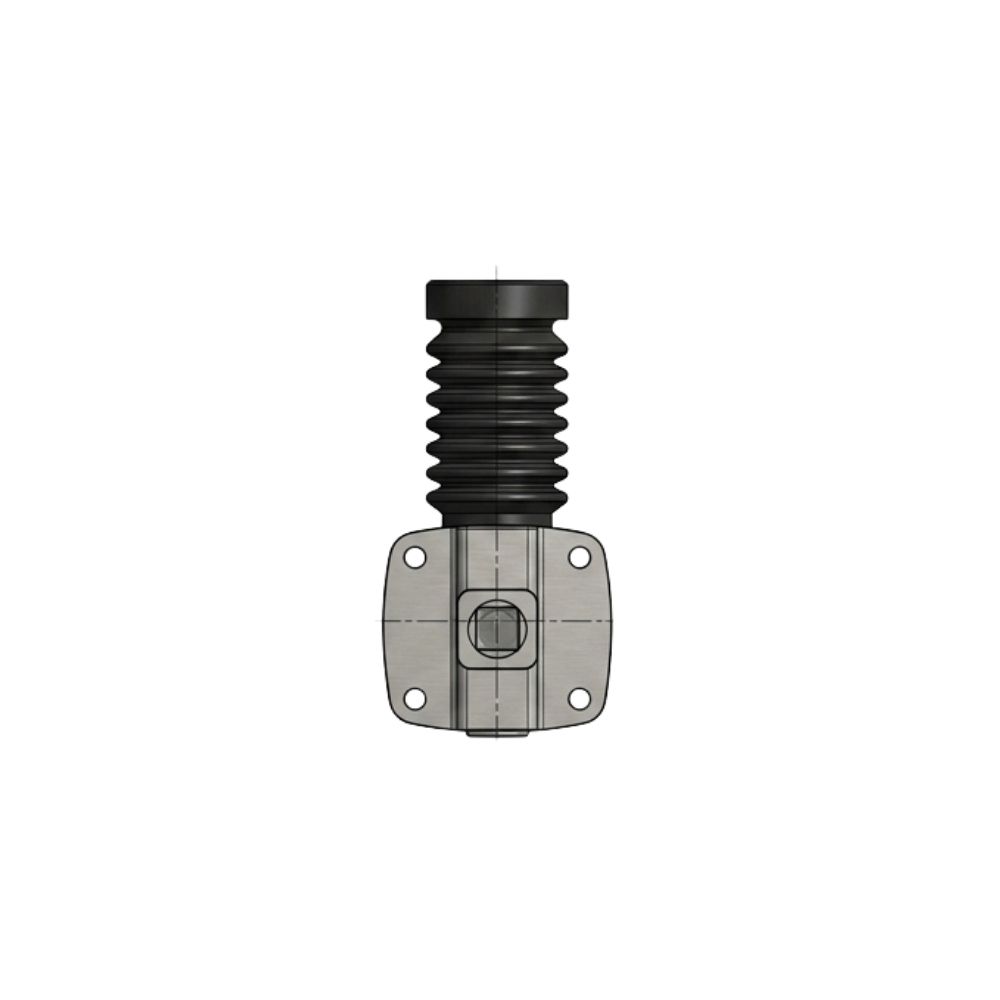

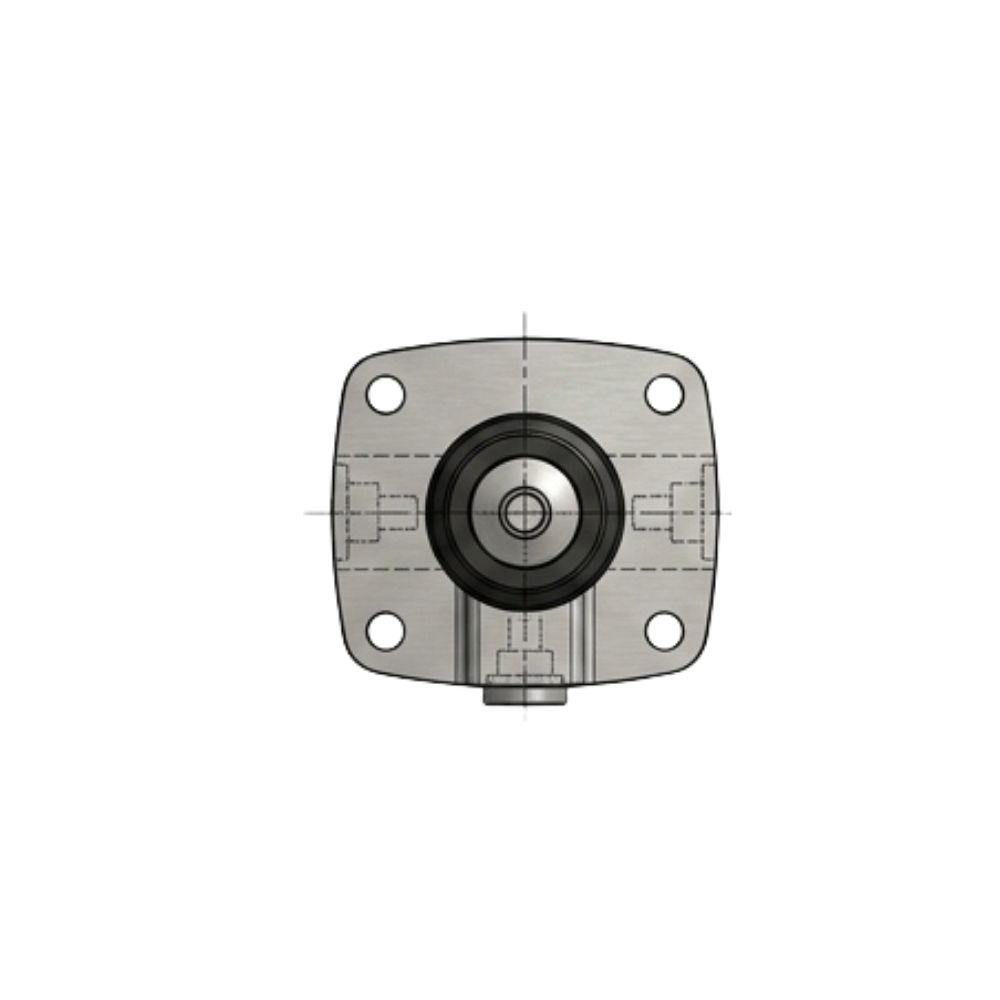

| Mounting PCD | 65 mm (4 nos M6x1 tapping) |
| Mass (Approximate) | 0.9 kg |
