Throttle/Check Valves, Sub Plate Mounting | TCMS

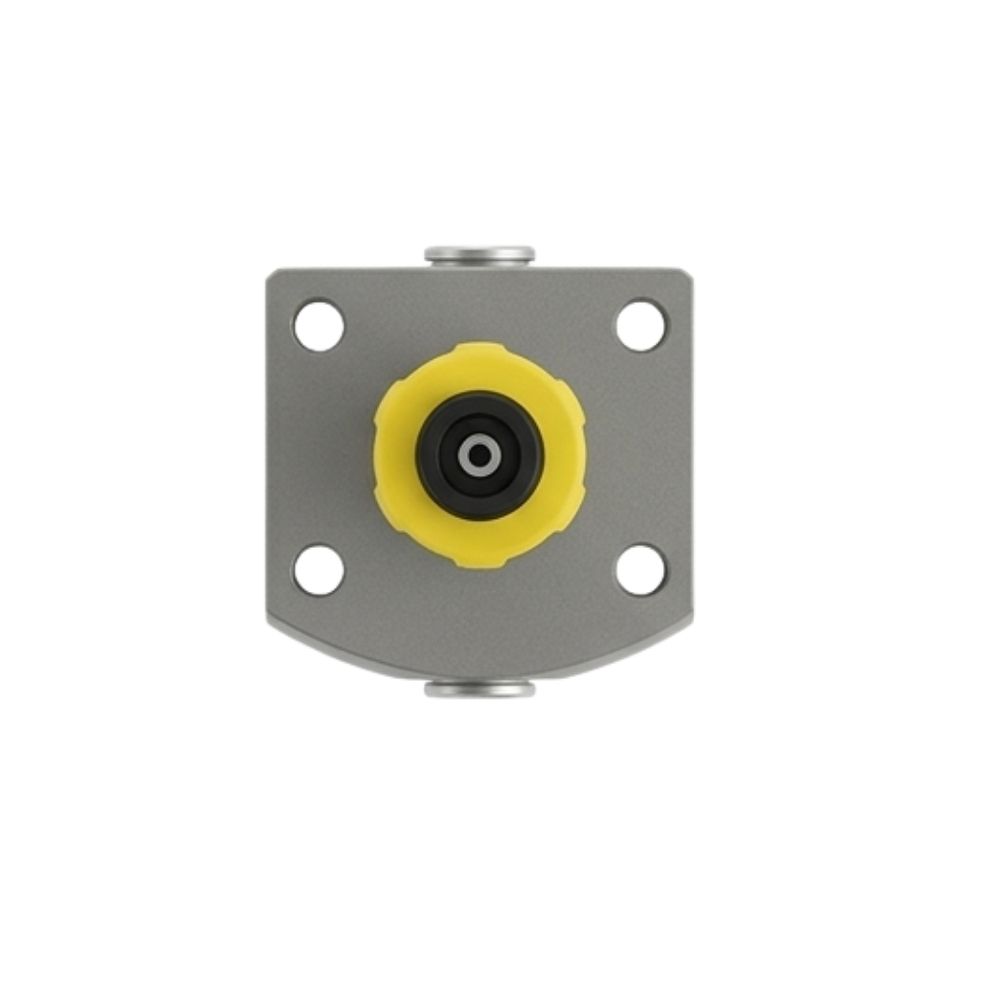

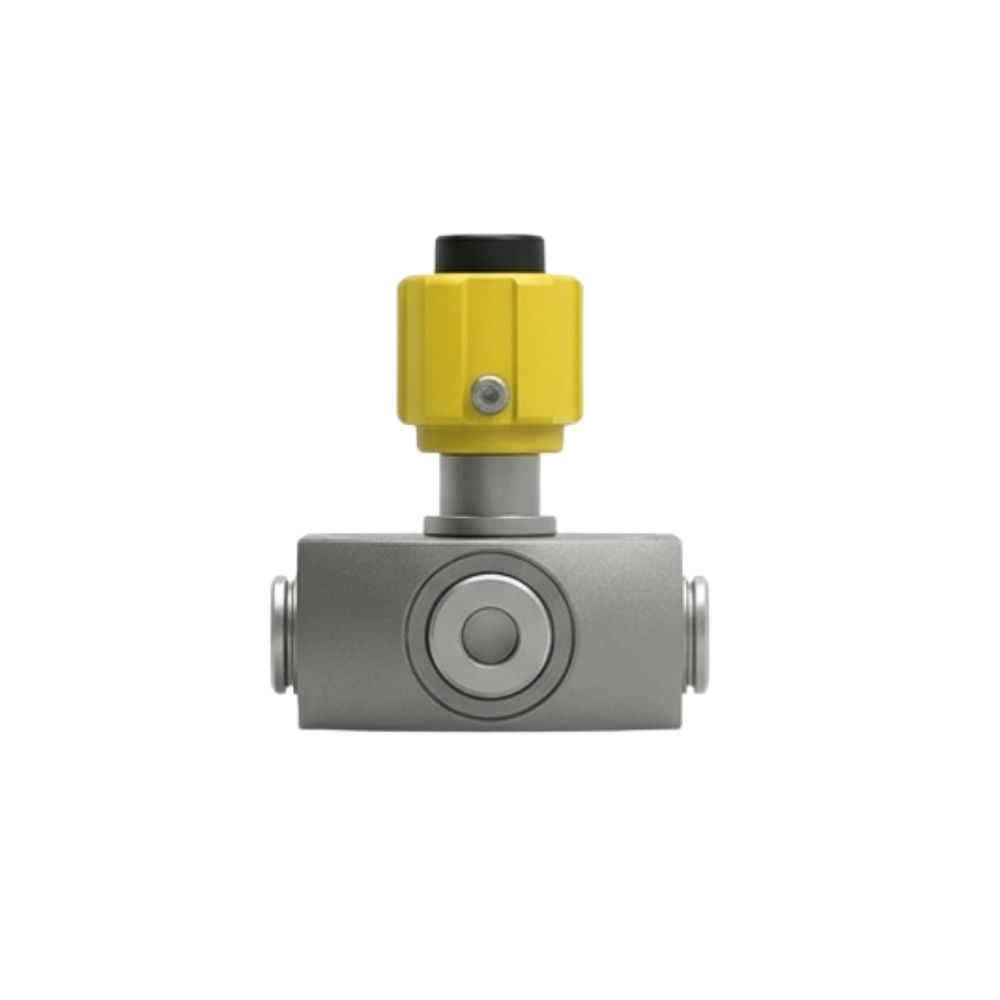

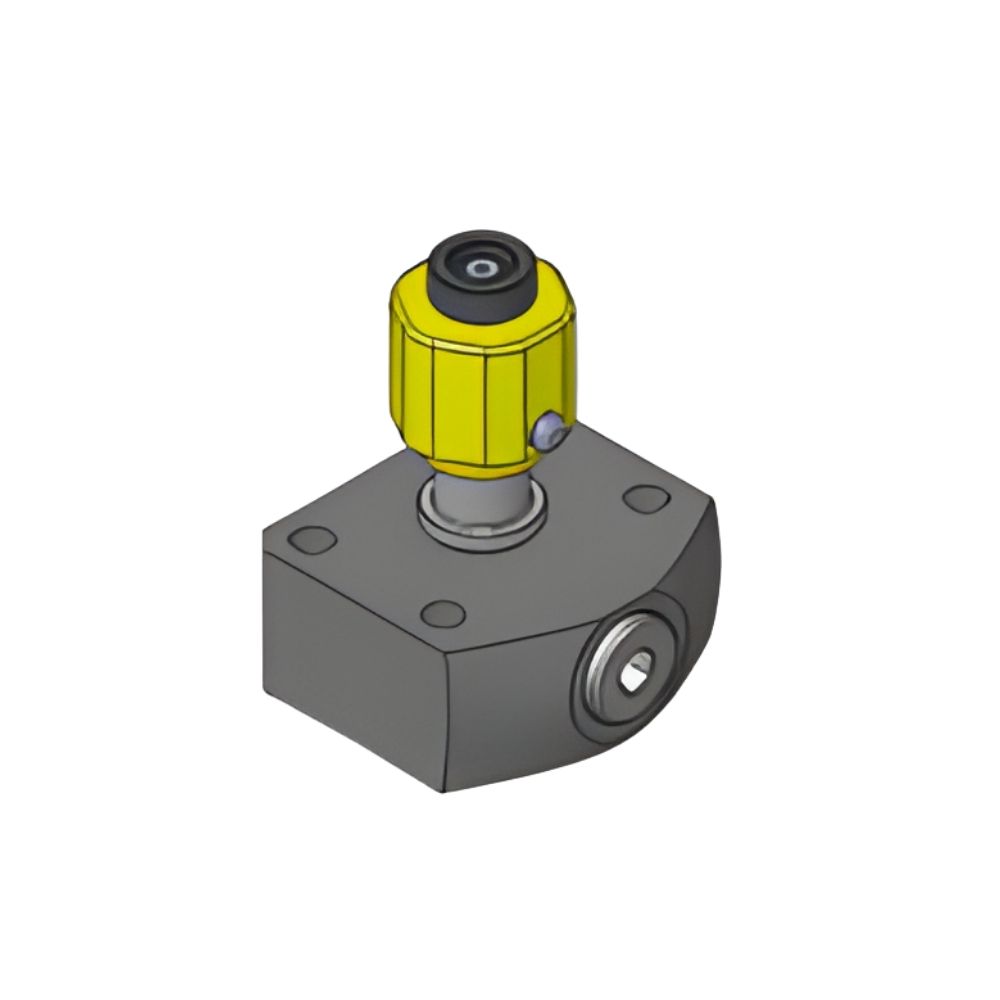

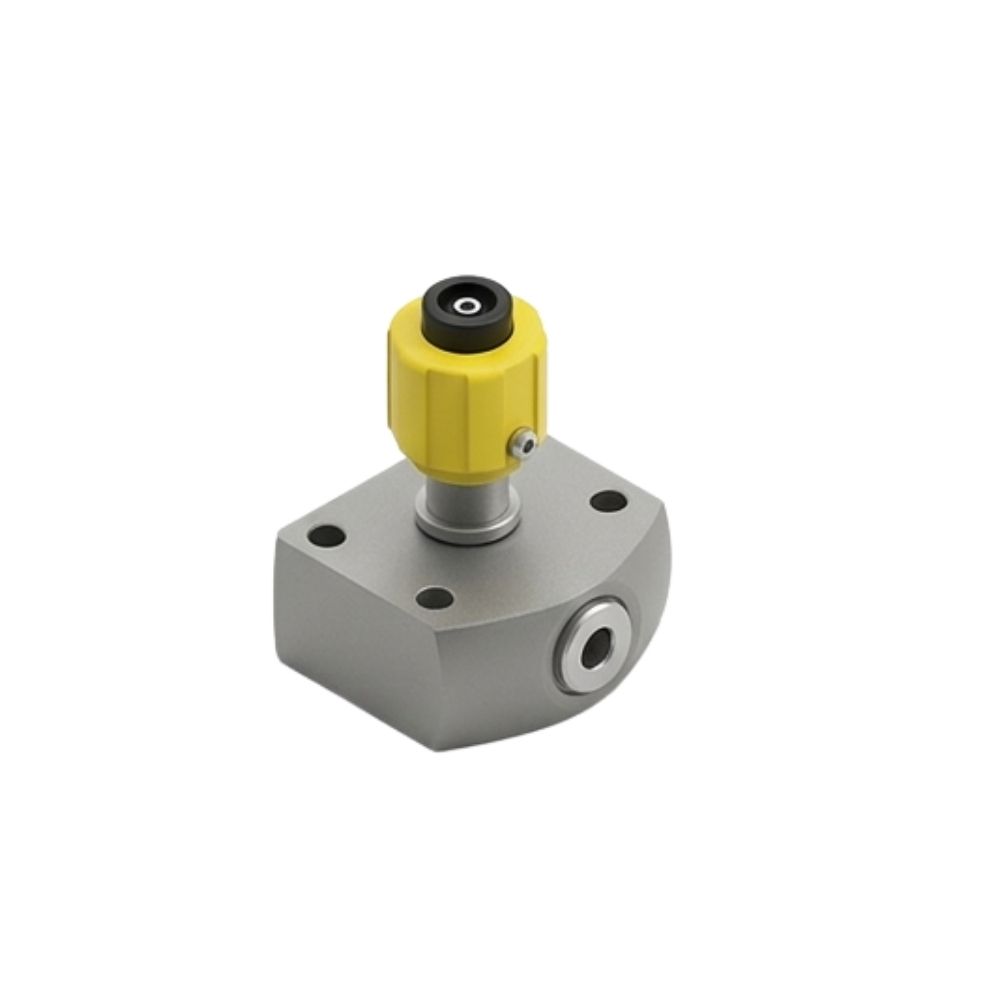

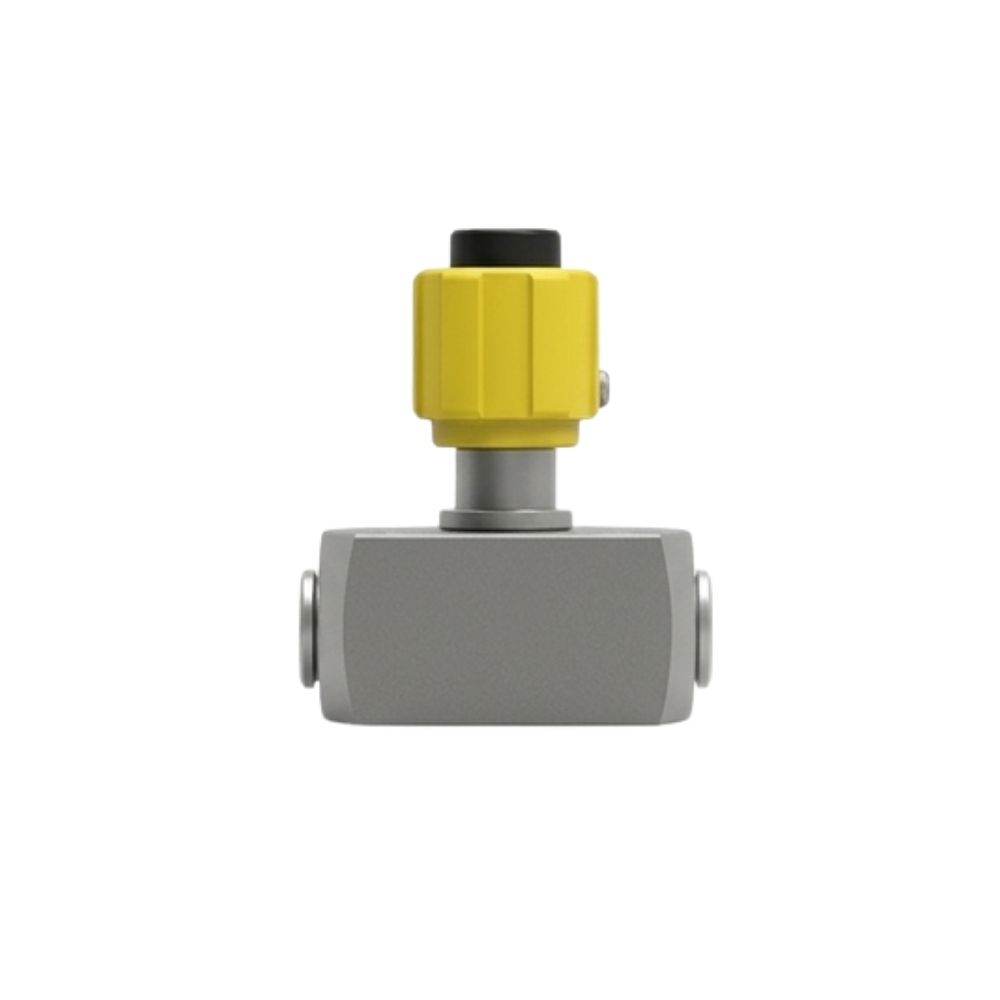

The Hyloc TCMS is a high-performance, sub-plate mounted throttle check valve designed for precise speed control in hydraulic systems. It functions as a non-compensated flow control valve, allowing you to manually adjust the volume of fluid moving through a circuit.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hyloc TCMS is a series of sub-plate mounted throttle check valves designed to regulate fluid flow in one direction while allowing free flow in the opposite direction. They are typically used in hydraulic systems to control the speed of actuators like cylinders or motors.
| Feature | Key Technical Specifications & Characteristics |
|---|---|
| Mounting Style | Sub-plate mounting (Interface conforms to ISO 5781-1987) |
| Max Operating Pressure | Up to 315 bar (4500 PSI) |
| Flow Direction | Throttled flow from A to B; Free flow from B to A |
| Flow Control | Adjustable conical throttling spool for precise speed regulation |
| Reverse Flow | Integrated poppet-type check valve for unrestricted reverse flow |
| Hydraulic Medium | Mineral oil (HL, HLP) to DIN 51524 |
| Viscosity Range | 10 cSt to 380 cSt |
| Temperature Range | -20°C to +80°C |
| Adjustment Method | Manual hand knob with optional locking set screw |
| Material Build | High-strength steel body for high-pressure durability |
| Nominal Sizes | Available from NG 06 to NG 30 (depending on flow requirements) |
