Flanged Hoses

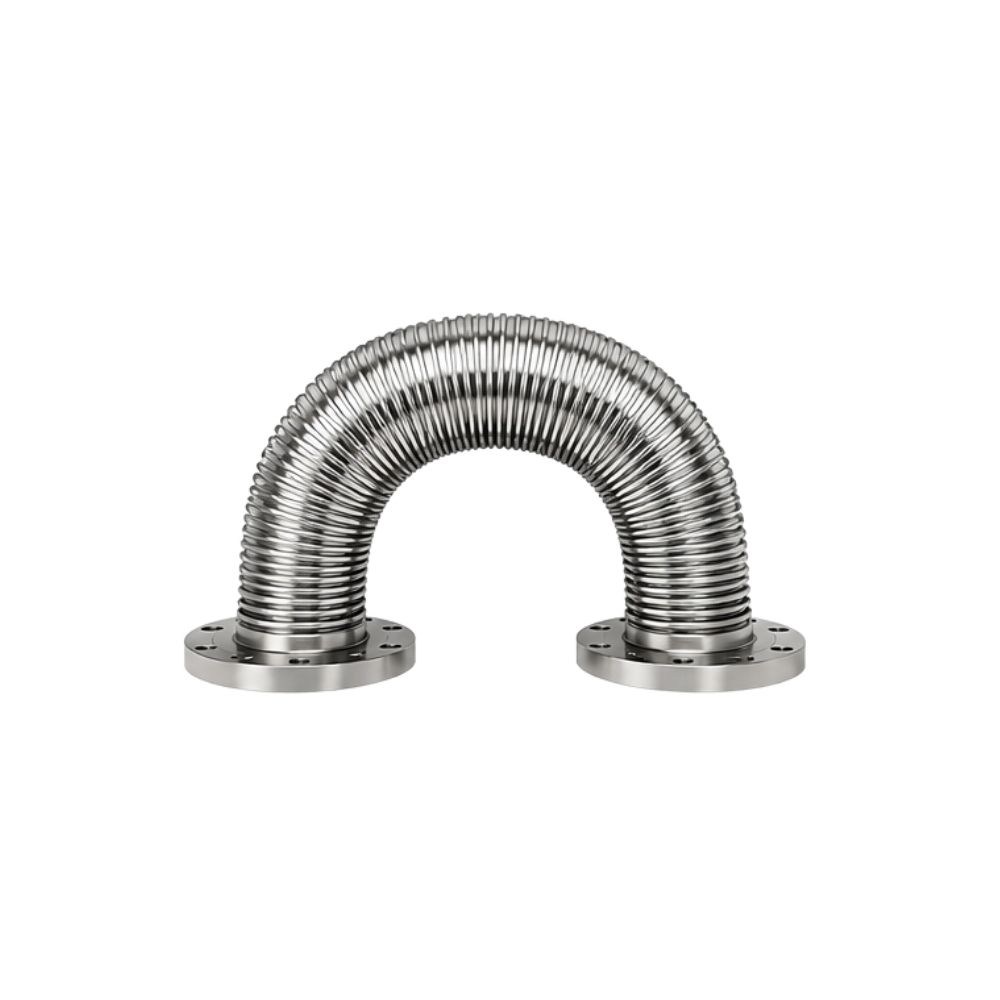

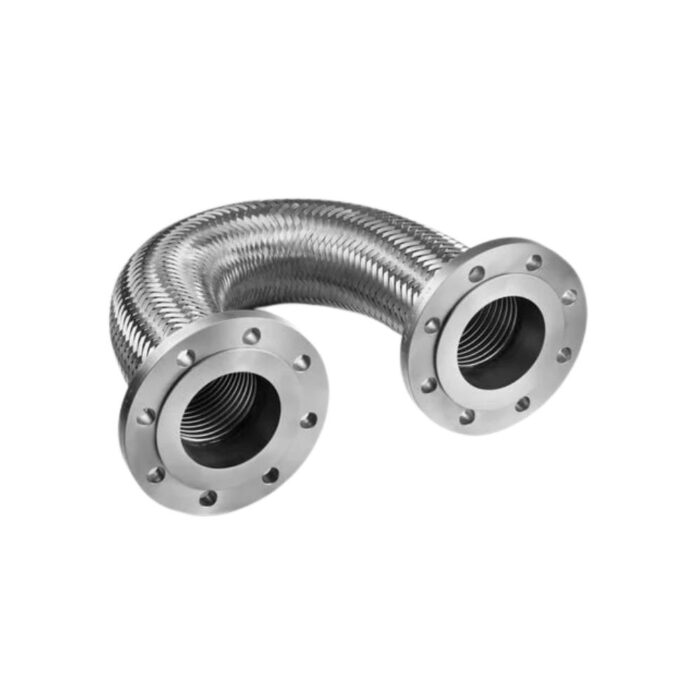

Flanged hoses are flexible fluid-transfer conduits equipped with flat, rimmed collar end-fittings (flanges) designed for secure, bolted connections. They are highly engineered components used across industrial, marine, and hydraulic systems where high pressure, large diameters, or heavy vibration prevent the use of standard threaded couplers.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
Flanged hoses are specialized, heavy-duty flexible conduits engineered with flat, rimmed collars (flanges) permanently attached to both ends. These flanges allow the flexible hose assembly to bolt directly onto rigid pipelines, valves, pumps, or industrial machinery. Unlike standard threaded fittings that can strip or bind under stress, flanged connections distribute clamping forces evenly across a circular bolt pattern. This setup creates a highly secure, leak-proof seal capable of handling massive fluid volumes, structural shifts, and intense system pressures.
| Specification / Feature | Stainless Steel Braided Hoses | Flanged Rubber Hoses | Composite Flanged Hoses |
|---|---|---|---|
| Primary Material | Corrugated stainless steel with external wire braid | Synthetic rubber reinforced with wire helix | Layered polymeric films and textile fabrics |
| Temperature Range | −196°C to 600°C | −40°C to 120°C | −30°C to 100°C |
| Pressure Capability | Ultra-high pressure applications | Medium to high pressure service | Medium pressure service |
| Flexibility | Moderate flexibility (stiffer due to braided steel construction) | High flexibility with good bend absorption | Excellent flexibility with lightweight construction |
| Best Used For | Extreme temperatures, steam, gases, and thermal expansion systems | Slurry transfer, abrasive media, water, and industrial fluid handling | Hydrocarbons, solvents, acids, and chemical transfer applications |
| Flange Options | Fixed or Floating Flanges (ANSI, DIN, JIS) | Split Flange, Fixed Flange, or Floating Flange | Floating flange with integrated wire retention system |
| Key Advantage | Outstanding thermal resistance and fire safety performance | Superior abrasion and impact resistance | Exceptional chemical compatibility and corrosion resistance |
