Ferrule Crimping Machine | EHFCM

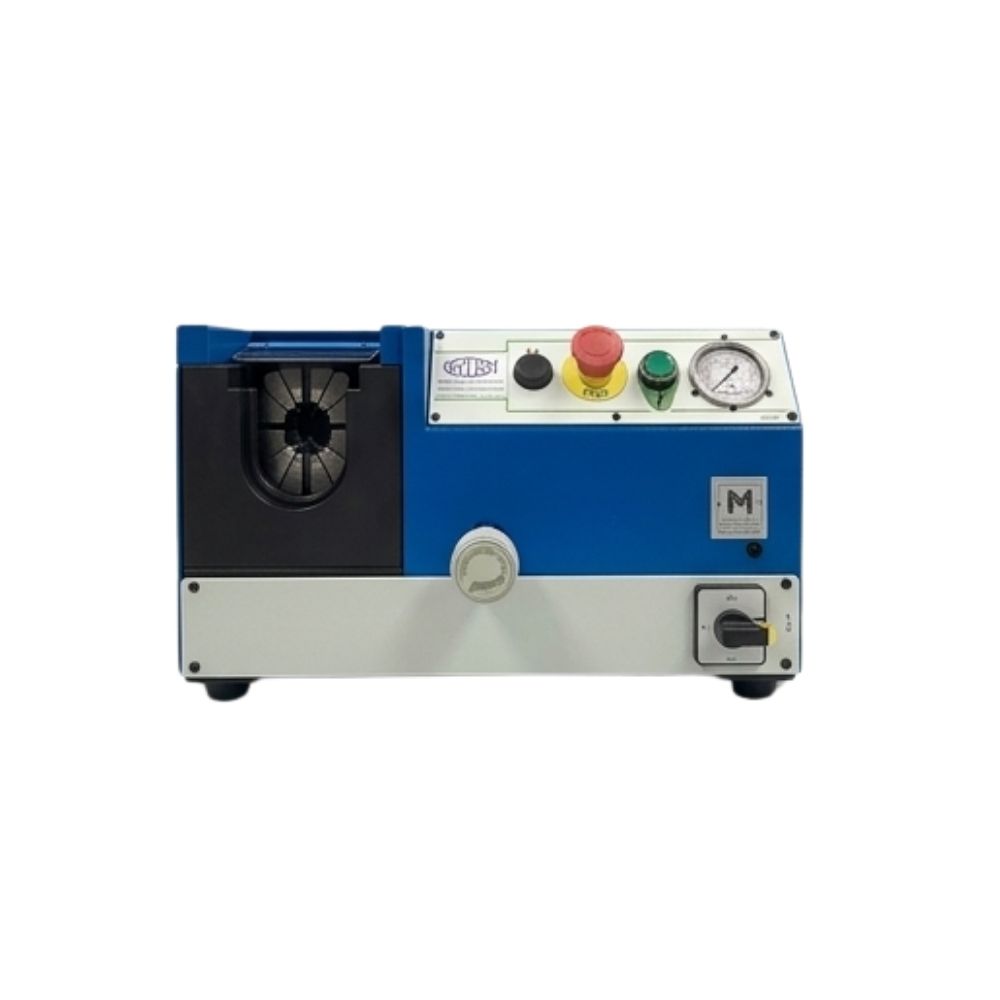

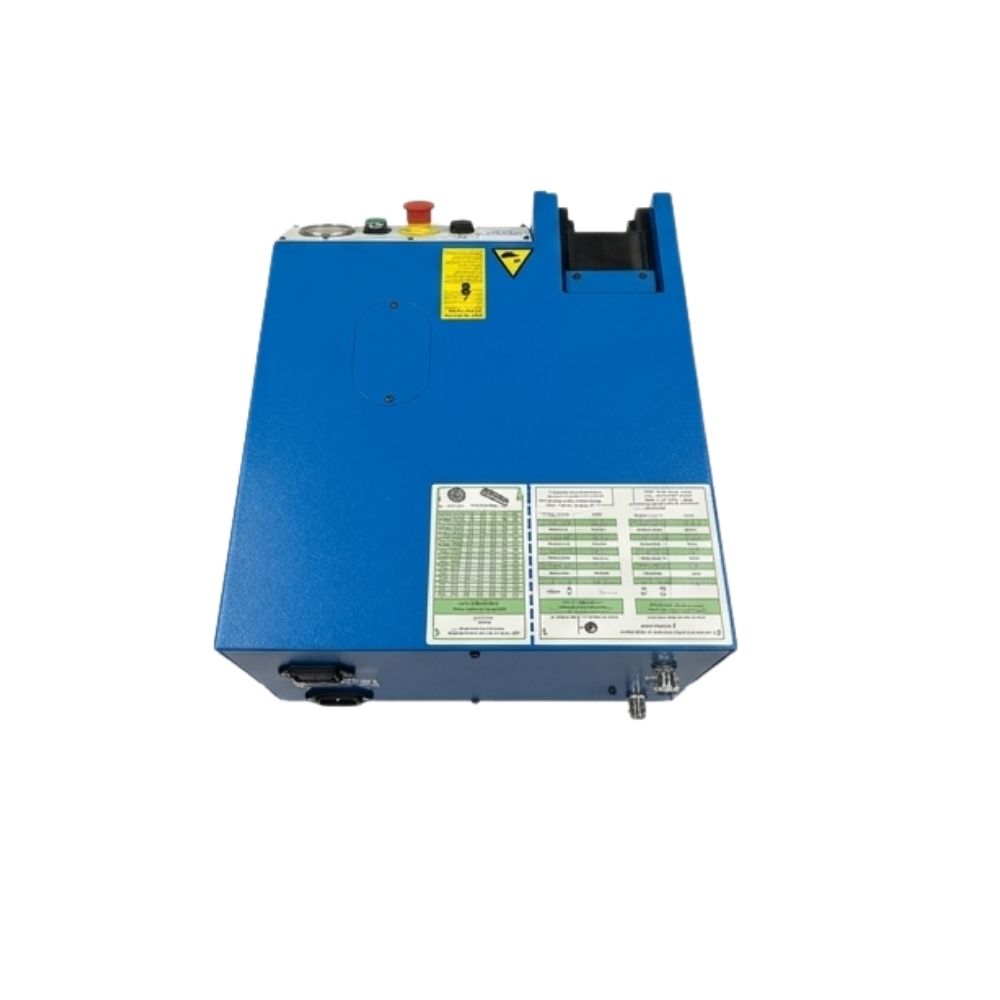

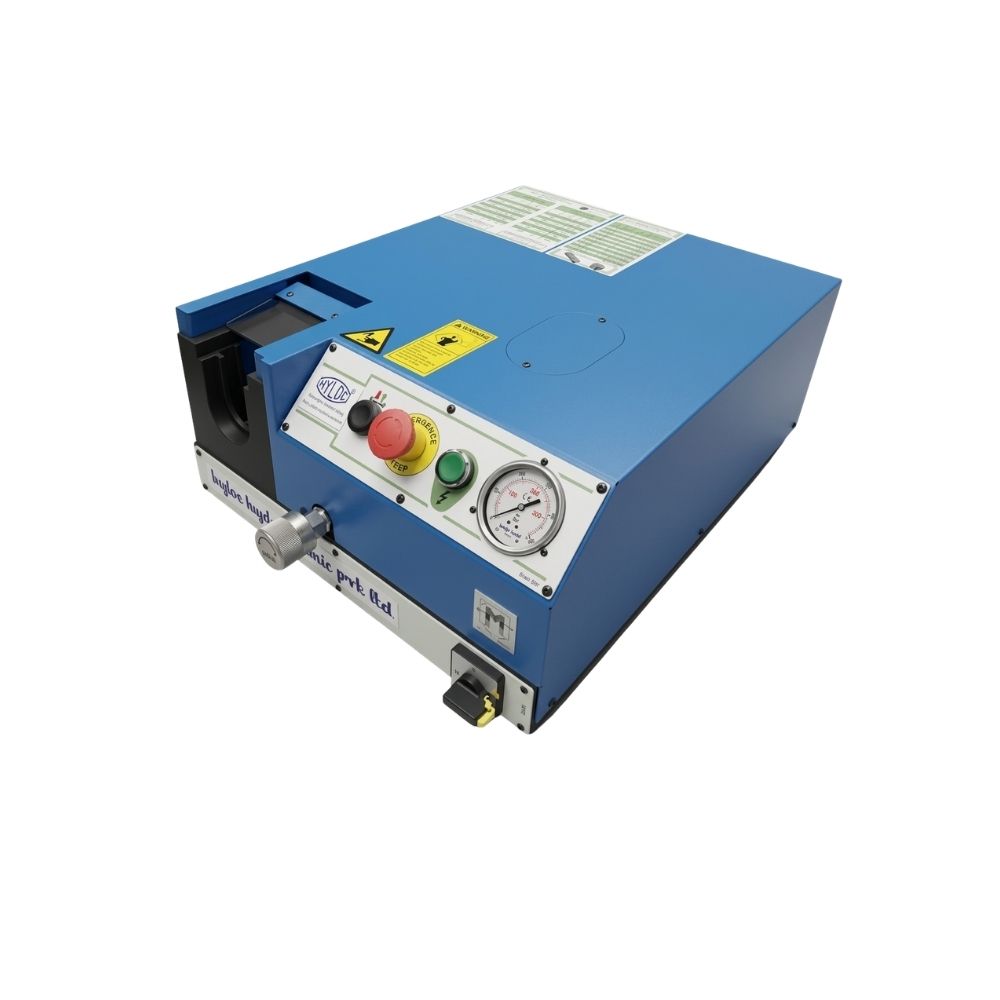

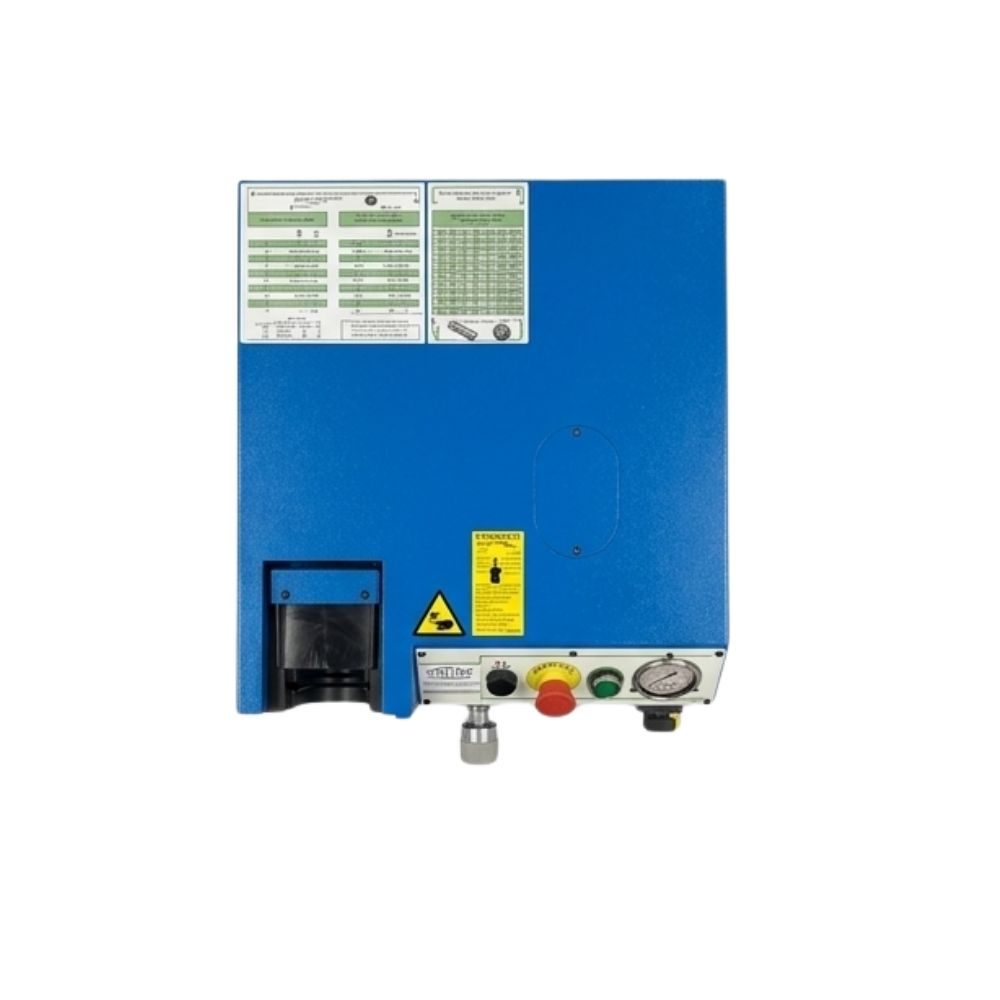

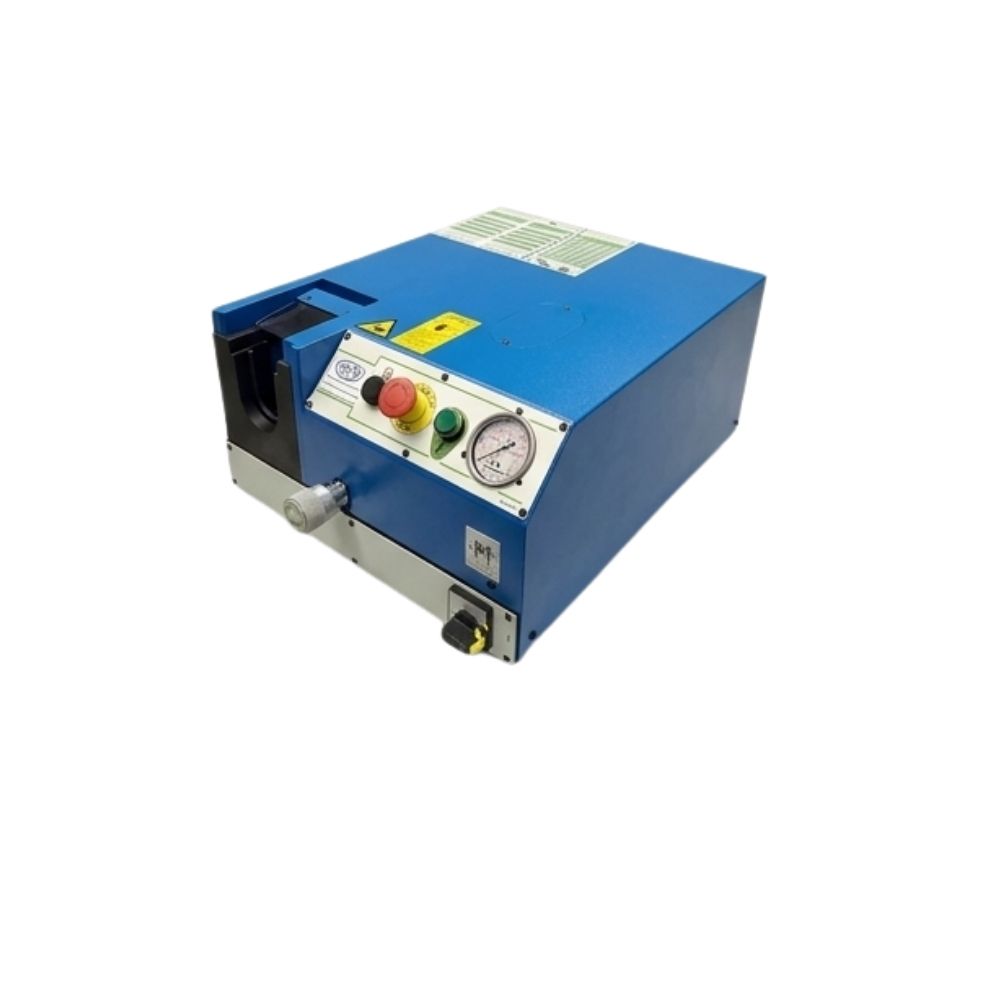

The Hyloc EHFCM Ferrule Crimping Machine is an electro-hydraulic device designed for the automated pre-assembly of ferrules (cutting rings) onto seamless hydraulic tubes. It is specifically engineered to replace manual pre-setting methods, ensuring consistent, leak-proof joints while significantly reducing operator labor.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hyloc Ferrule Crimping Machine (Model EHFCM) is a compact, high-efficiency tool designed to automate the crimping of ferrules (cutting rings) onto hydraulic tubes. Manufactured by Hyloc Hydrotechnic, it is primarily used to ensure leak-proof joints in high-pressure fluid power systems while reducing manual labor and operator fatigue.
| Category | Details / Specifications |
|---|---|
| Crimping Capacity (L Series) | 6 mm to 42 mm |
| Crimping Capacity (S Series) | 6 mm to 38 mm |
| Electrical Motor | 0.736 Kw (1.0 HP) |
| Electrical Connection | 3 Phase |
| Operator Control Voltage | 12V – 24V (+/- 10%) |
| Hydraulic Oil Type | VG46 or VG68 |
| Oil Reservoir Capacity | 1.3 Litres |
| Weight (Static) | 58 Kg |
| Noise Level | ≤ 70 dB (A) |
| Environmental Limits | Max +40°C ambient / 80% humidity |
| Key Functionality | Pressure-set facility for custom ferrule sizes |
| Tube Compatibility | Carbon Steel and Stainless Steel seamless tubes |
| Supply Condition | Machine supplied without hydraulic oil |
