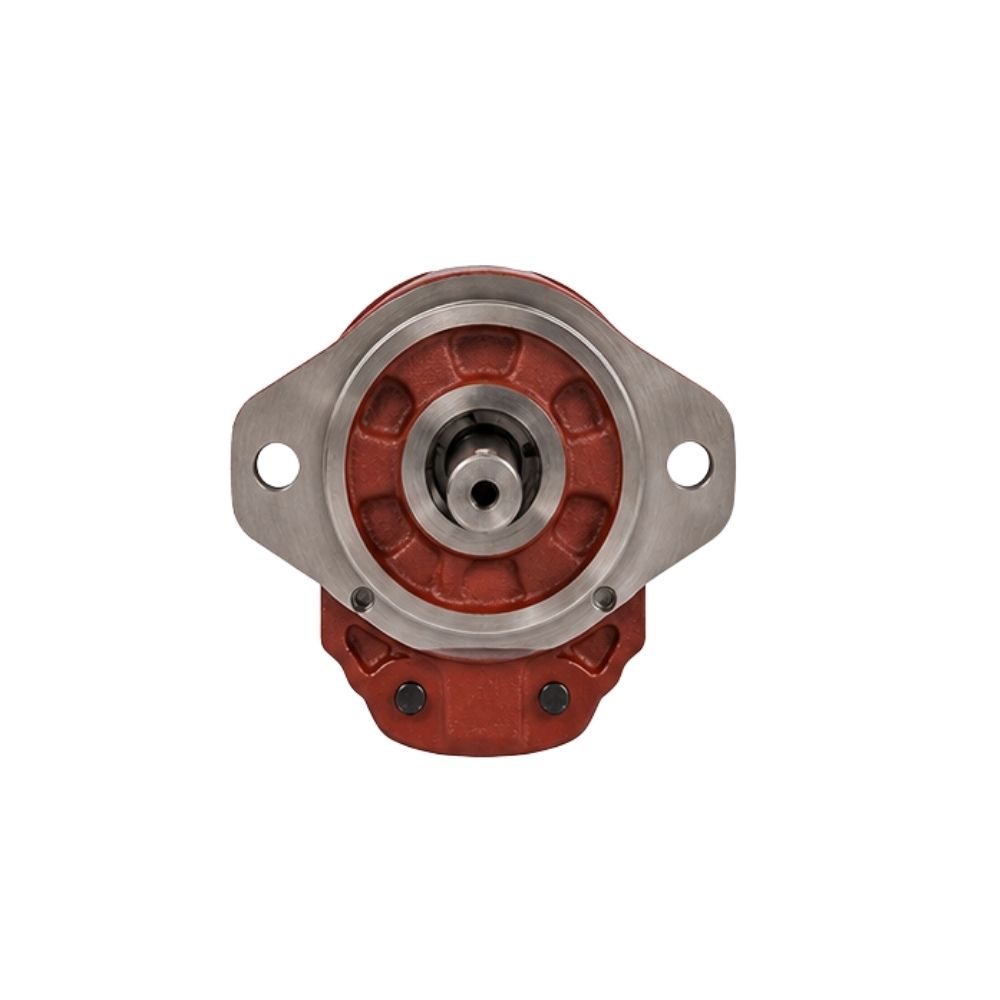

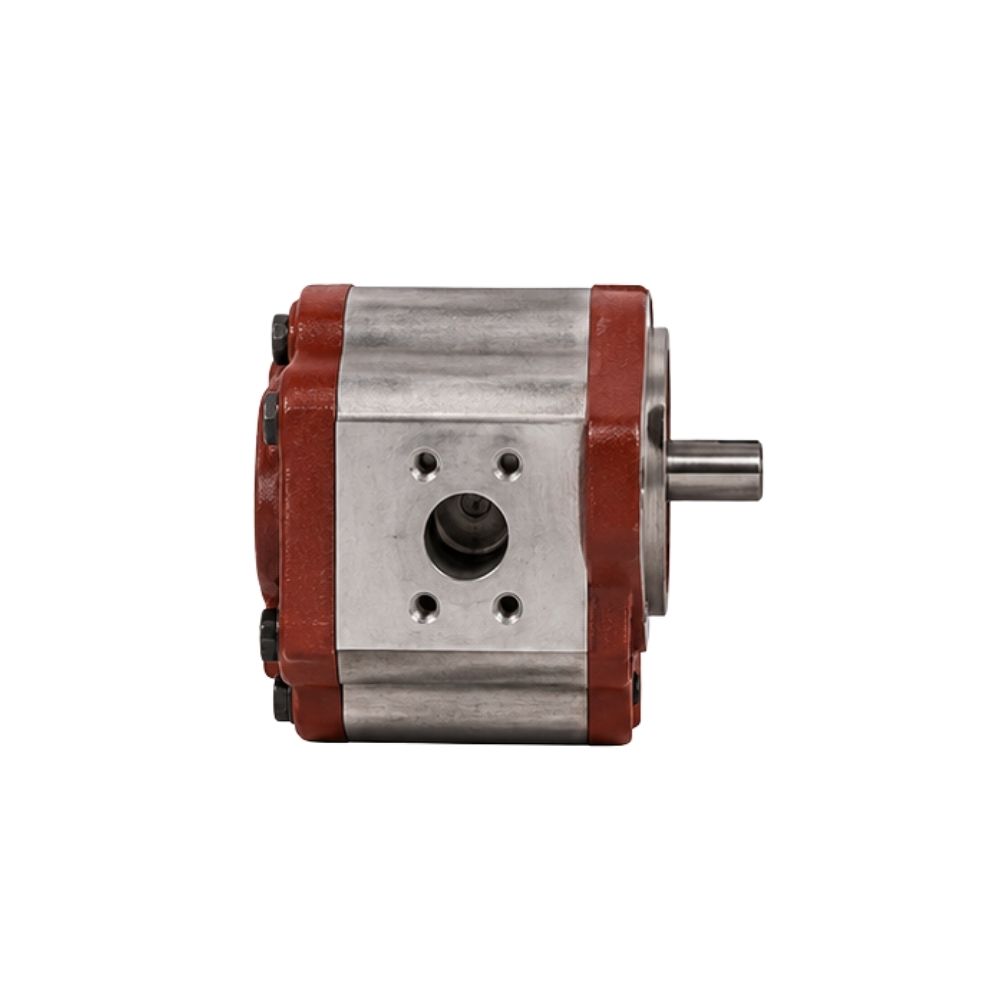

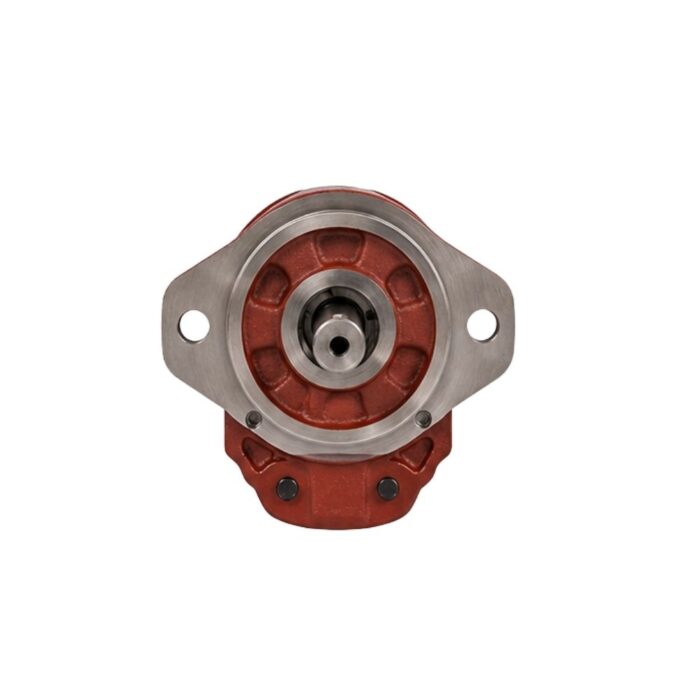

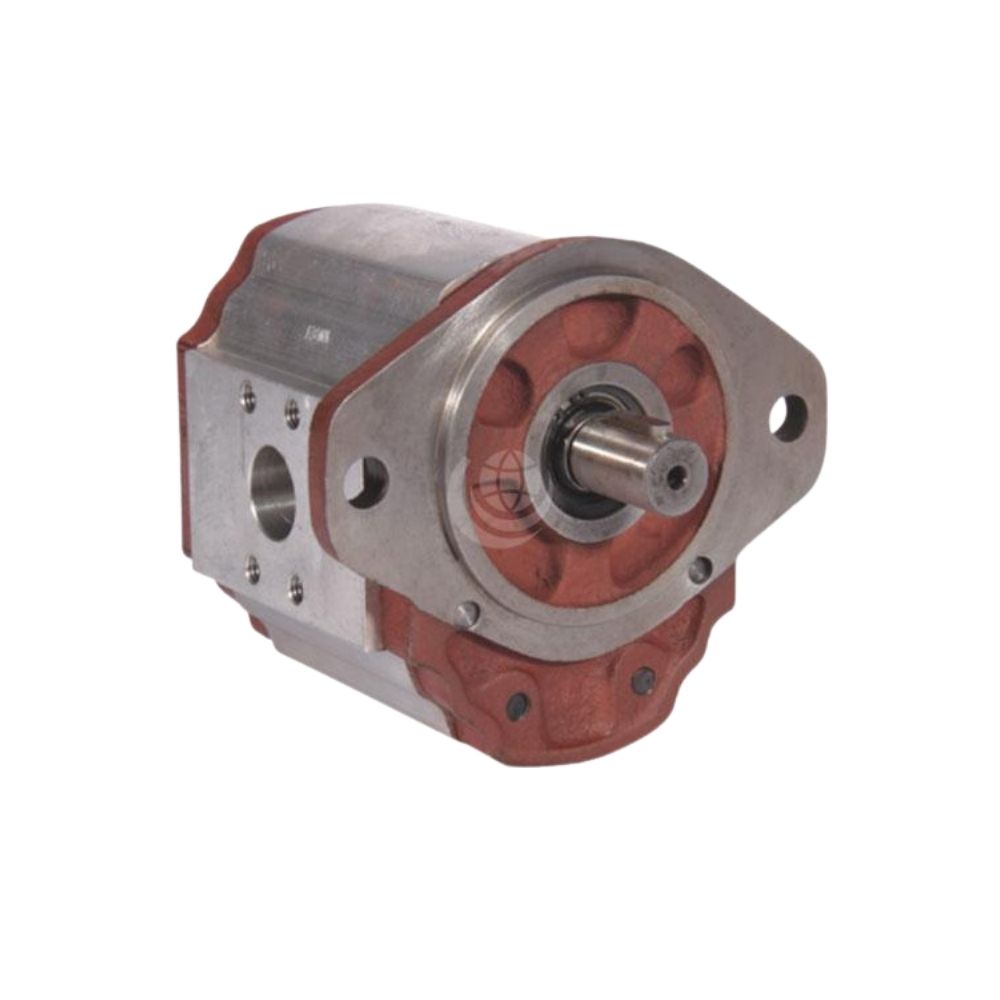

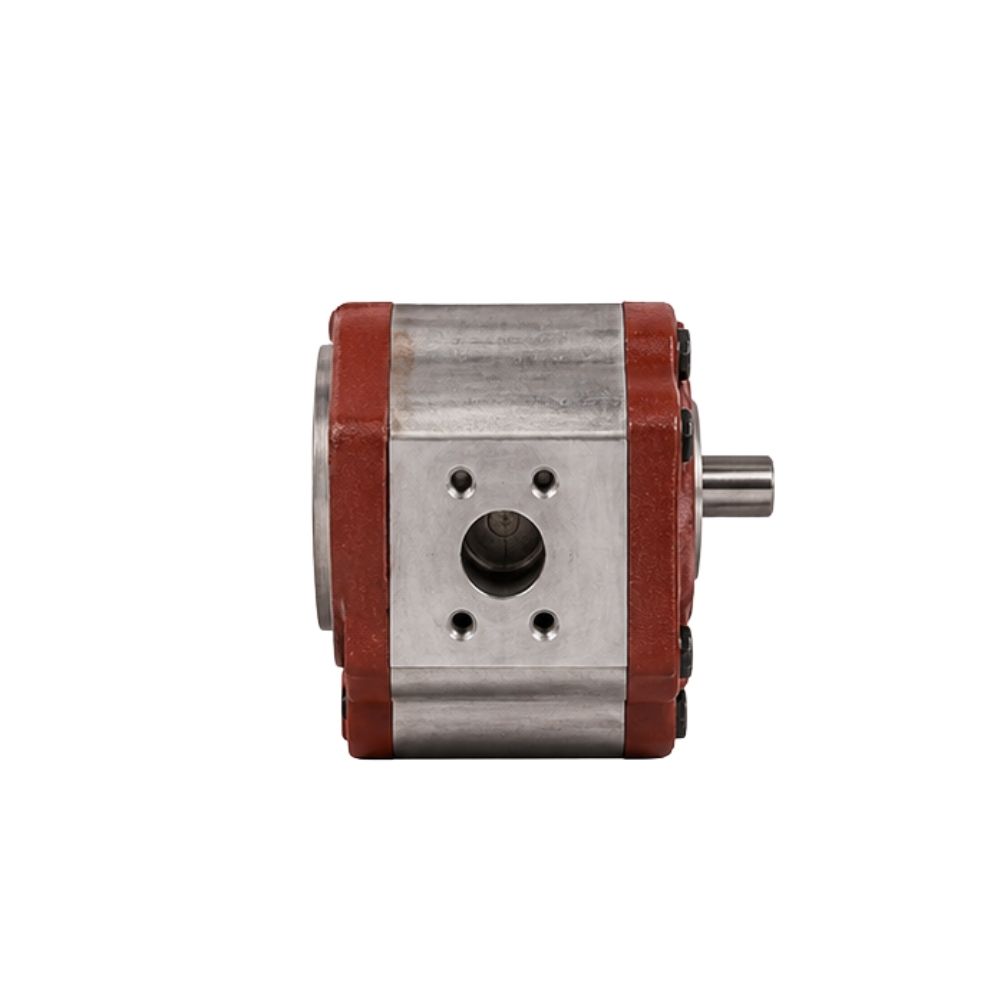

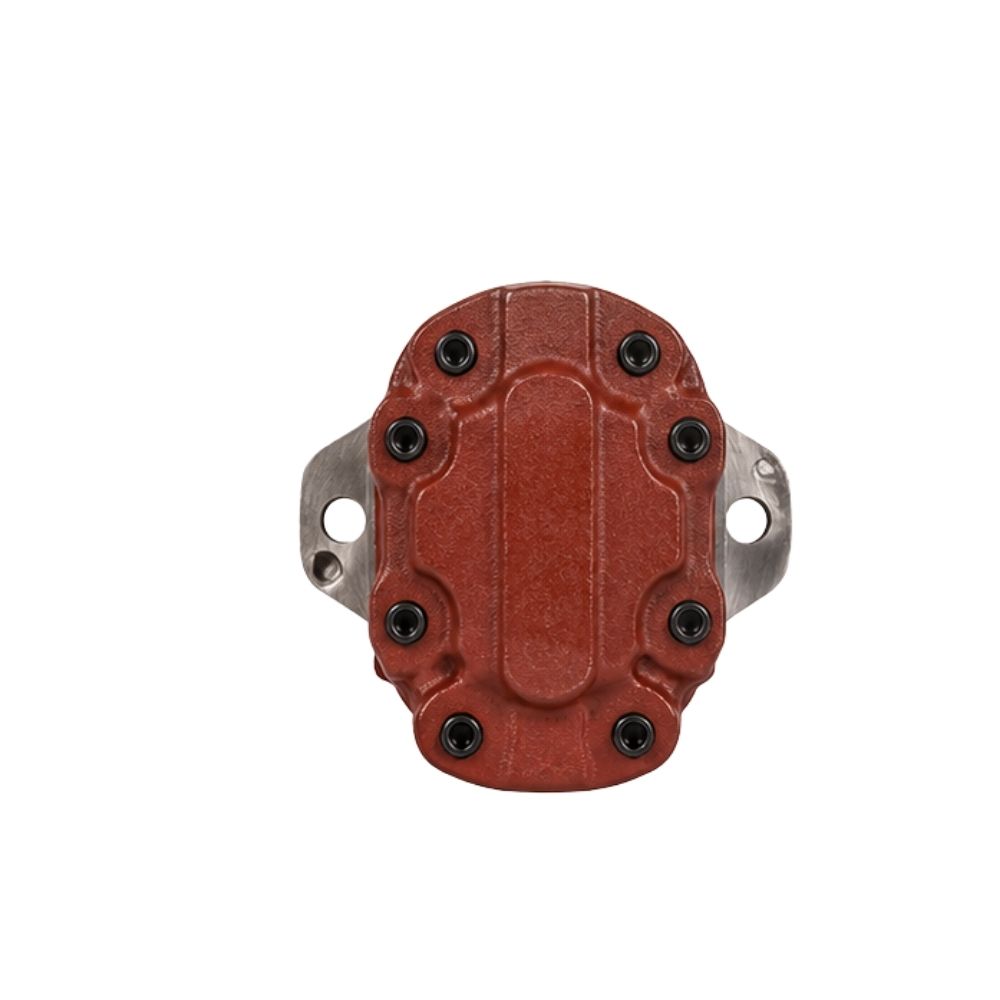

Dowty 2P Series Single Pump
The DOWTY 2P SERIES SINGLE PUMP is a high-capacity external gear pump engineered for demanding hydraulic applications. Designed to deliver higher flow rates and reliable performance, this series supports a wide range of displacements with strong pressure handling capability. Its rugged construction, efficient operation, and consistent output make it ideal for heavy-duty industrial, construction, and mobile equipment systems.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Dowty 2P Series is a range of high-performance, positive displacement hydraulic gear pumps designed for demanding industrial, agricultural, and construction equipment. Part of the P3000 Series, these pumps are known for their robust cast iron or high-tensile aluminium alloy construction and high volumetric efficiency
Key Performance
| PUMP TYPE | Nominal Displacement cc/rev |
Nominal Delivery @1500 rpm & Pressure P lpm |
Maximum Continuous Pressure P | Speed at Maximum Continuous Pressure P | ||
|---|---|---|---|---|---|---|
| psi | bar | max | min | |||
| 3050 | 15.13 | 22.70 | 3000 | 207 | 3000 | 550 |
| 3070 | 21.33 | 32.00 | 3000 | 207 | 3000 | 550 |
| 3090 | 27.33 | 41.00 | 3000 | 207 | 3000 | 650 |
| 3105 | 31.80 | 47.70 | 3000 | 207 | 3000 | 600 |
| 3120 | 36.33 | 54.50 | 3000 | 207 | 3000 | 650 |
| 3146 | 44.33 | 66.50 | 2525 | 174 | 2500 | 650 |
| 3158 | 47.87 | 71.80 | 2525 | 174 | 2500 | 650 |
| 3220 | 66.67 | 100.00 | 2000 | 138 | 2500 | 650 |
Common Applications
-
- Earthmoving Equipment:Â Excavators and loaders.
- Industrial Machinery:Â Press brakes, machine tools, and SPMs.
- Agricultural Machinery:Â Tractors and specialized harvesting equipment.
- Material Handling:Â Forklifts and cranes.
| TECHNICAL DETAILS | |
|---|---|
| Product Type | External Gear Pump (Single Pump Configuration) |
| Series Name | 2P Series Single Pump |
| Displacement Range | 15.13 cc/rev to 66.67 cc/rev |
| Flow Rate Range (@1500 RPM) | 21.80 LPM to 100.00 LPM |
| Maximum Continuous Pressure | Up to 207 bar (3000 PSI) |
| Reduced Pressure Range | 174 bar (2525 PSI) and 138 bar (2000 PSI) for higher displacement models |
| Maximum Speed (Standard Models) | Up to 3000 RPM |
| Maximum Speed (High Capacity Models) | Up to 2500 RPM |
| Performance Stability | Consistent flow output across varying load conditions |
| Construction Material | Heavy-duty cast iron body with precision-engineered gears |
| Mounting Configuration | Ideal for heavy-duty industrial, mobile, and agricultural hydraulic systems |
