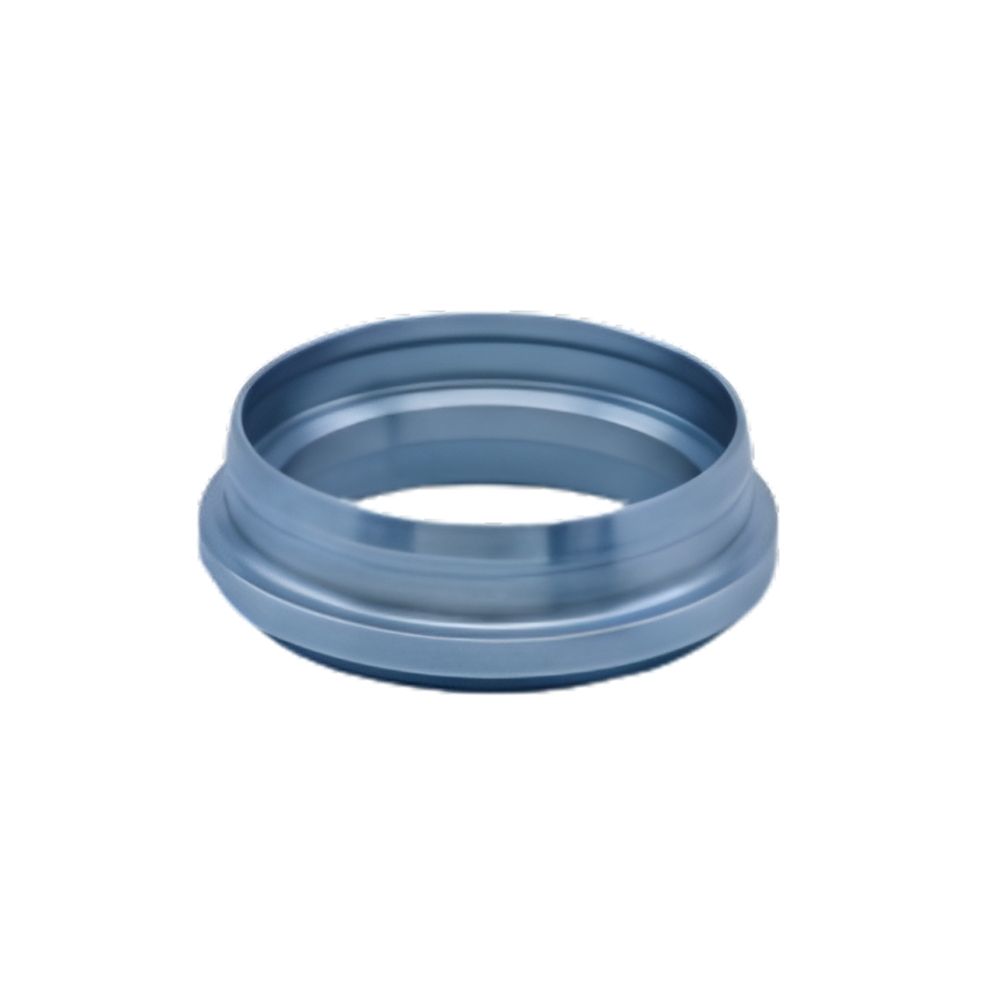

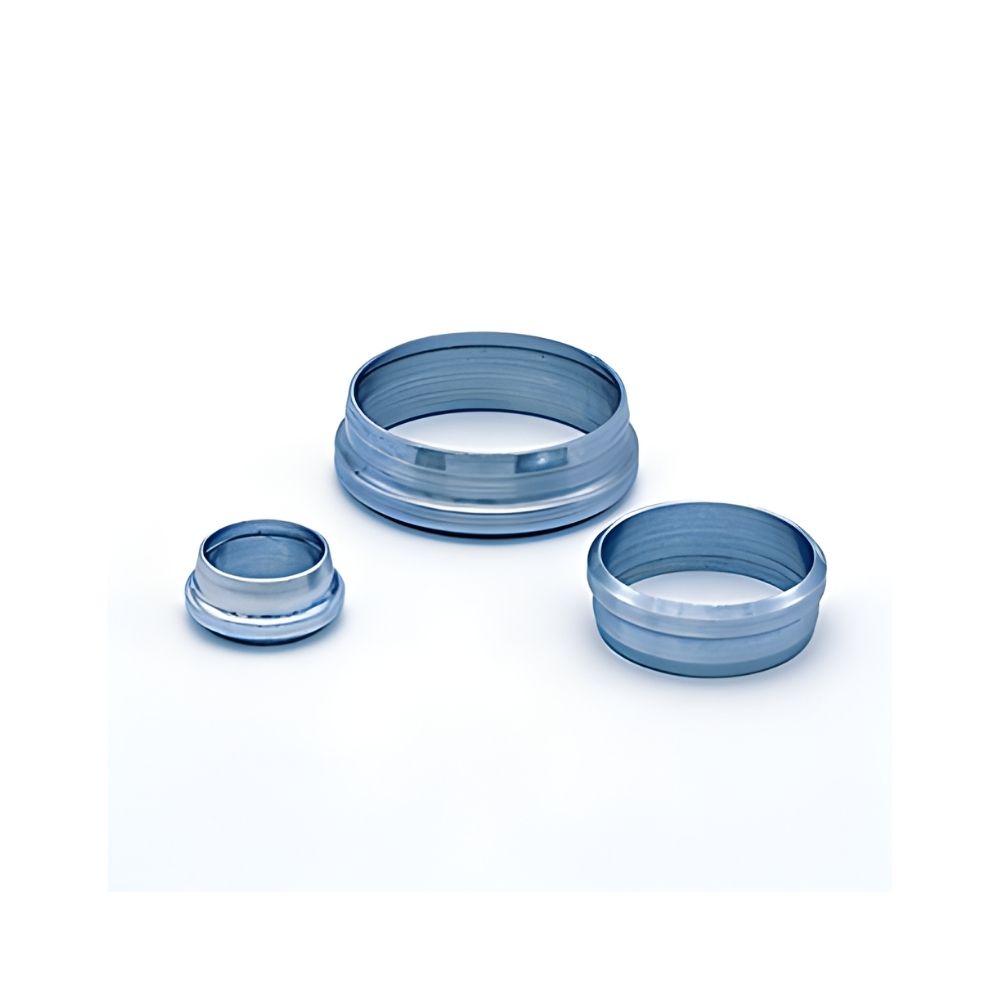

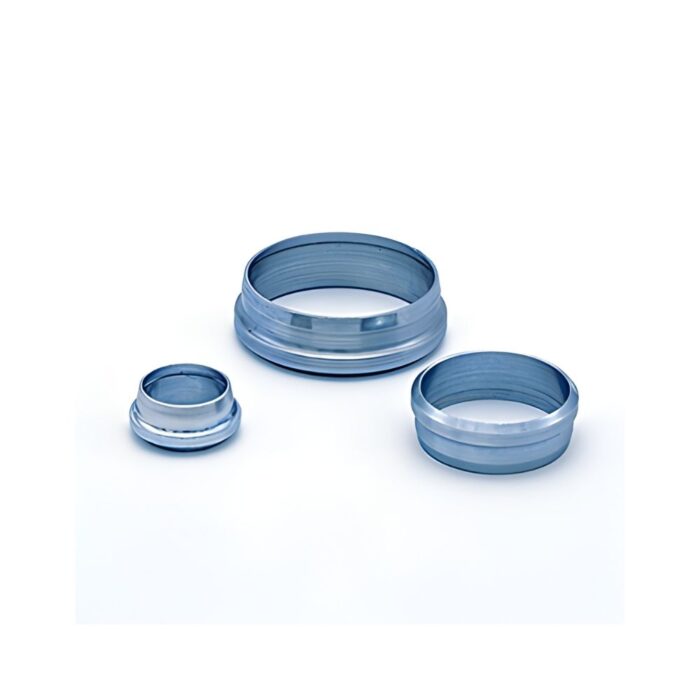

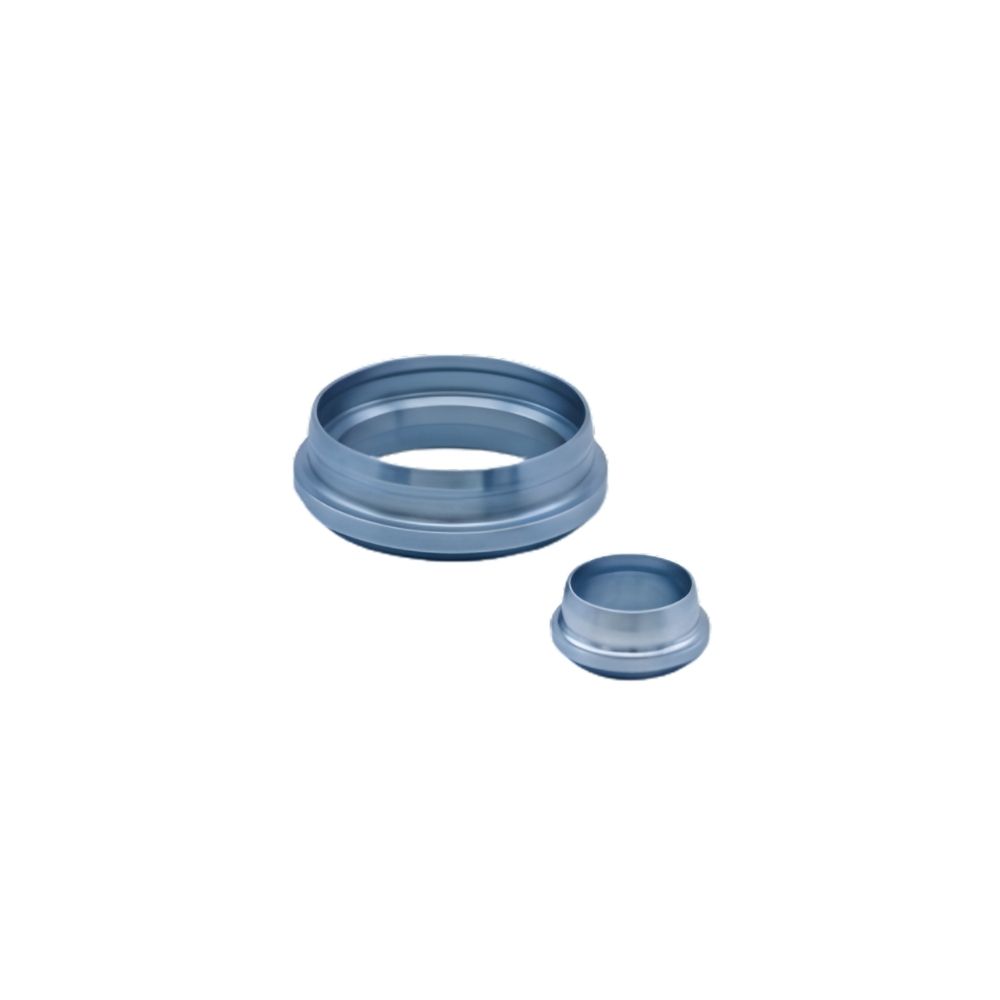

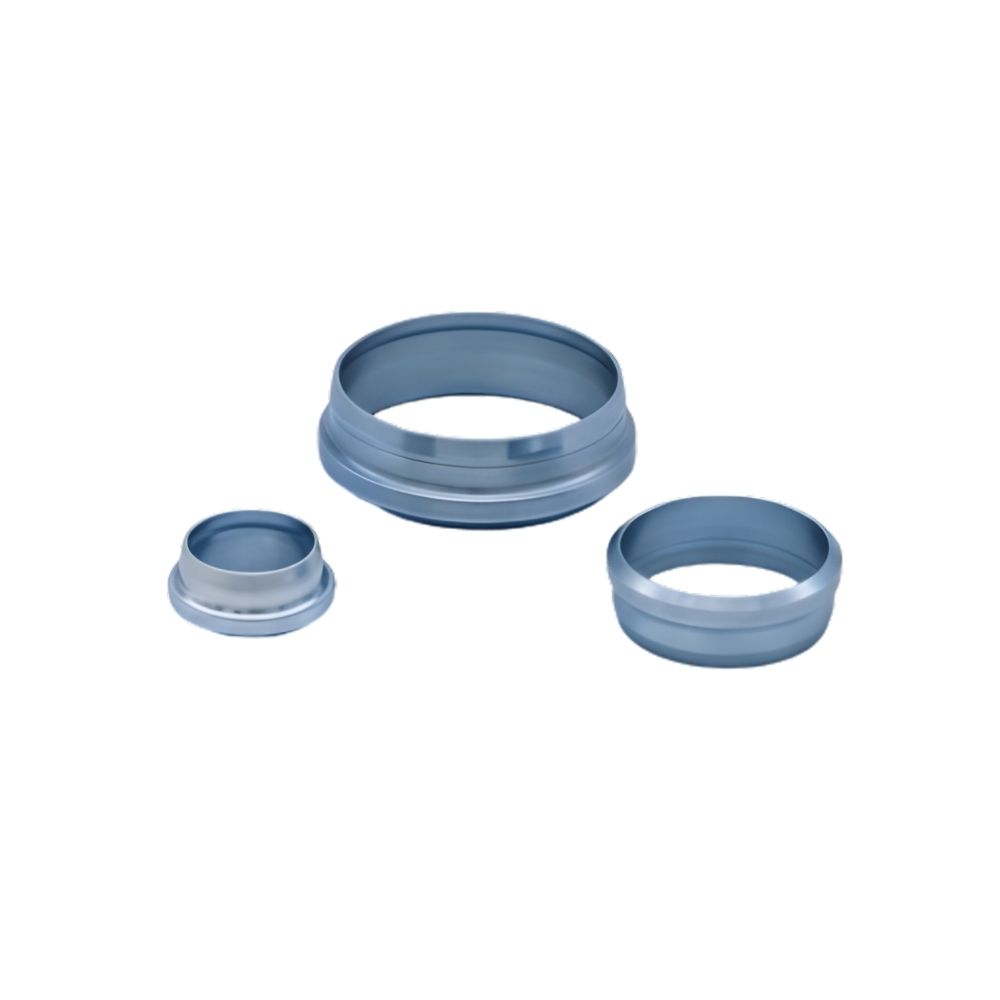

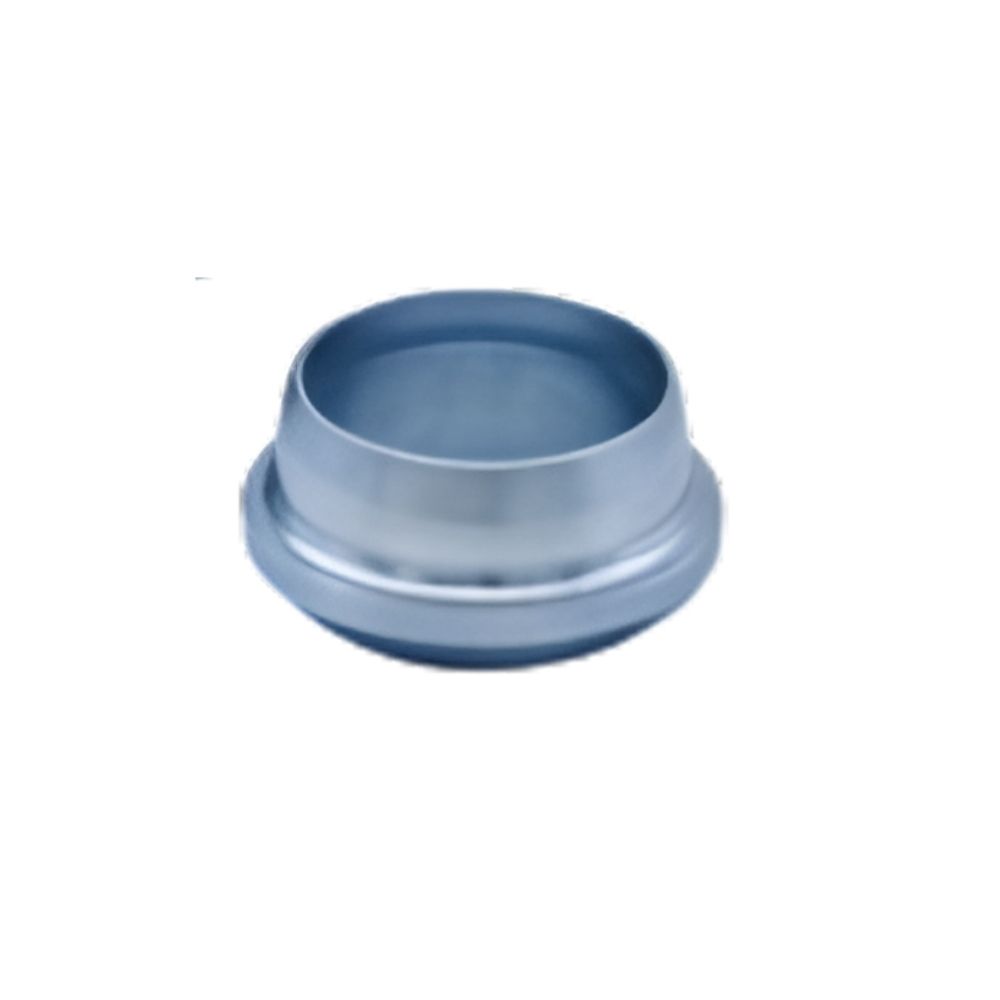

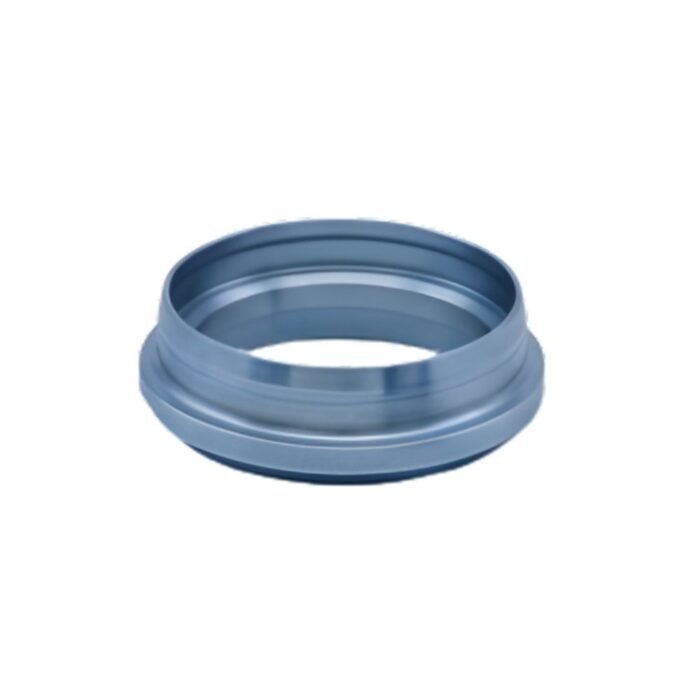

Double Bite Ferrules | P
The Hyloc Double Bite Ferrule (Part Code ‘P’) is a specialized mechanical fitting component used to create high-pressure, leak-proof joints in hydraulic and instrumentation systems. Unlike standard single-ferrule designs, this “double bite” system utilizes two distinct points of contact to ensure maximum reliability under extreme conditions.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hyloc Double Bite Ferrules | P, often designated with the letter ‘P’ in part codes, are high-performance hydraulic tube fittings designed for leak-proof connections in high-pressure and high-vibration environments.
| Category | Key Features & Specifications |
|---|---|
| Primary Function | Creates a mechanical, flareless connection by biting into the outer surface of hydraulic tubing at two points for a dual-sealing effect. |
| Material Options | Carbon Steel (Standard Zinc Plating with Blue Passivation) or Stainless Steel (SS-316). |
| Size Range | Fits tube outer diameters (OD) ranging from 2 mm to 42 mm. |
| Pressure Series | L (Light): 100 bar to 250 bar S (Heavy): 250 bar to 630 bar |
| Temperature Range | Carbon Steel: -20°C to +120°C Stainless Steel: -60°C to +200°C |
| Vibration Resistance | High; designed to resist loosening in high-vibration dynamic systems. |
| Interchangeability | Fully interchangeable and designed according to ISO 8434-1 / DIN 2353 standards. |
| Compatibility | Pairs with Hyloc ‘M’ Series Coupling Nuts and standard fitting bodies. |
| Special Application | Approved for use in oxygen systems (max 150 bar) when using SS-316 variants. |
