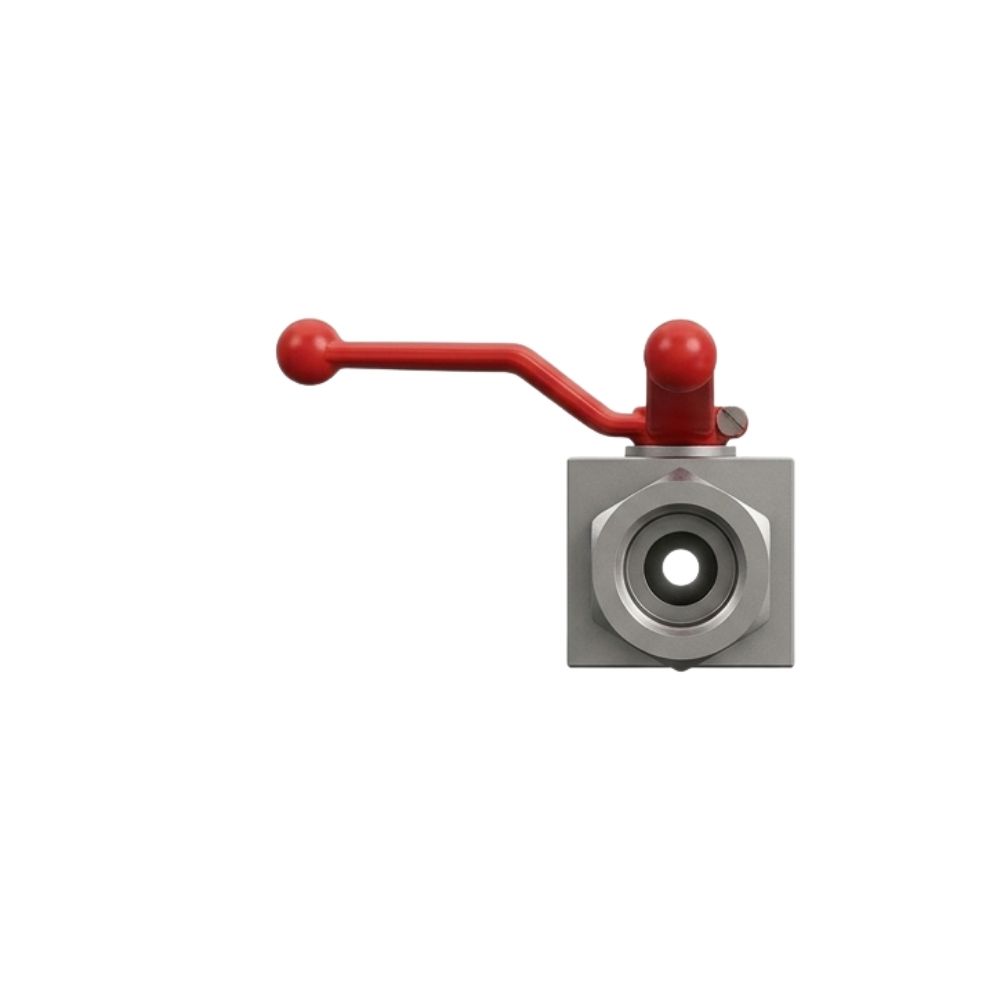

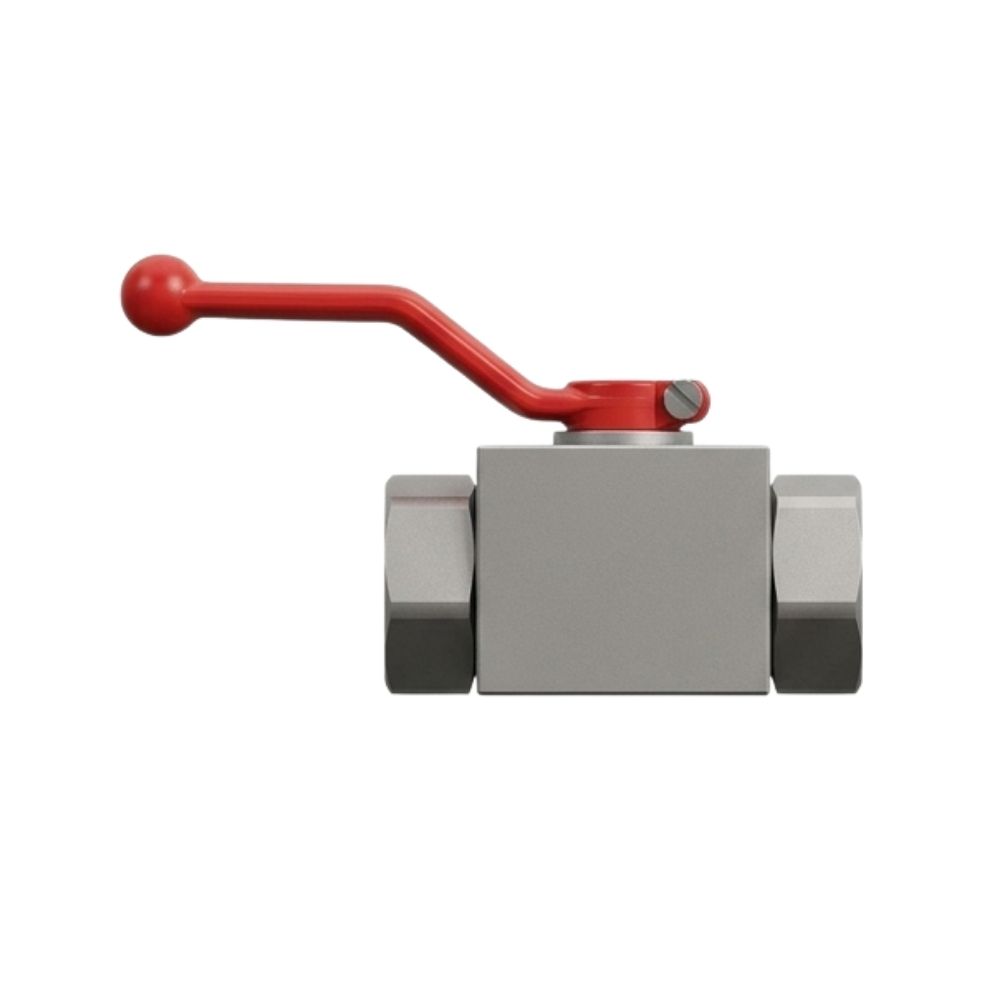

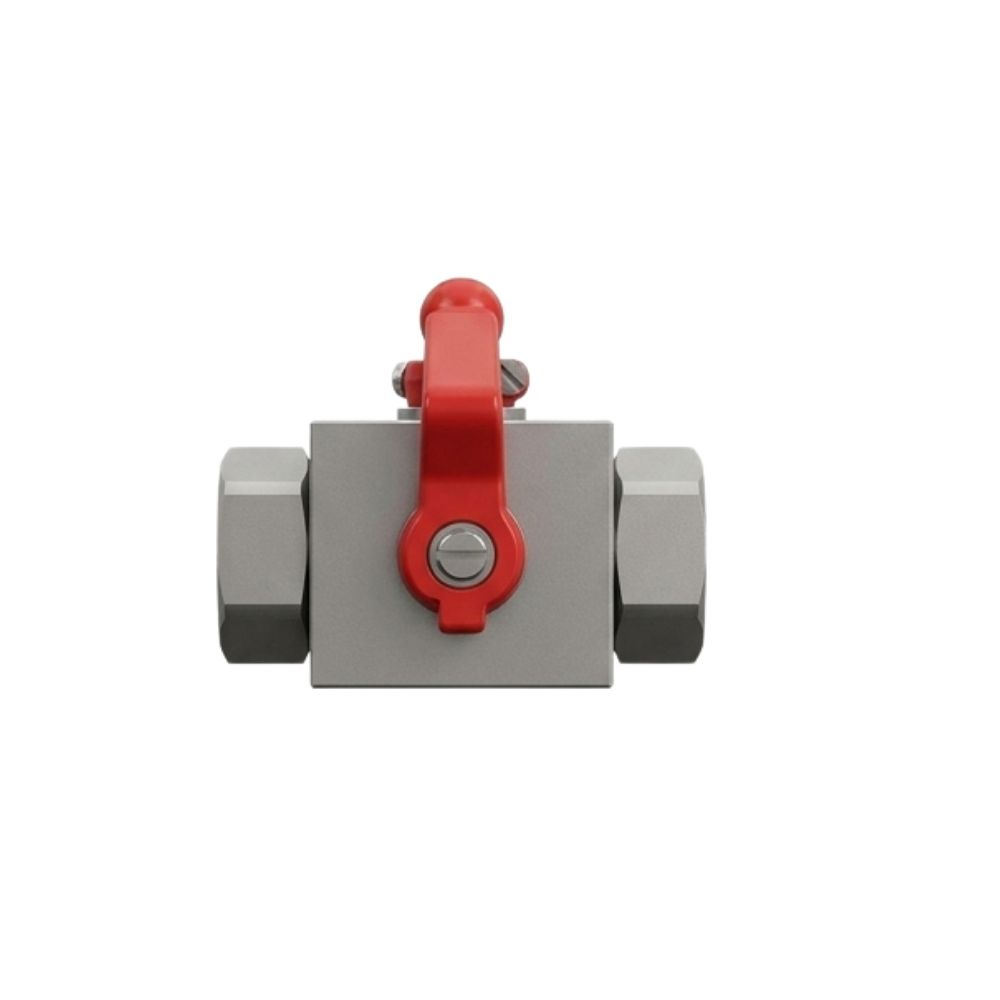

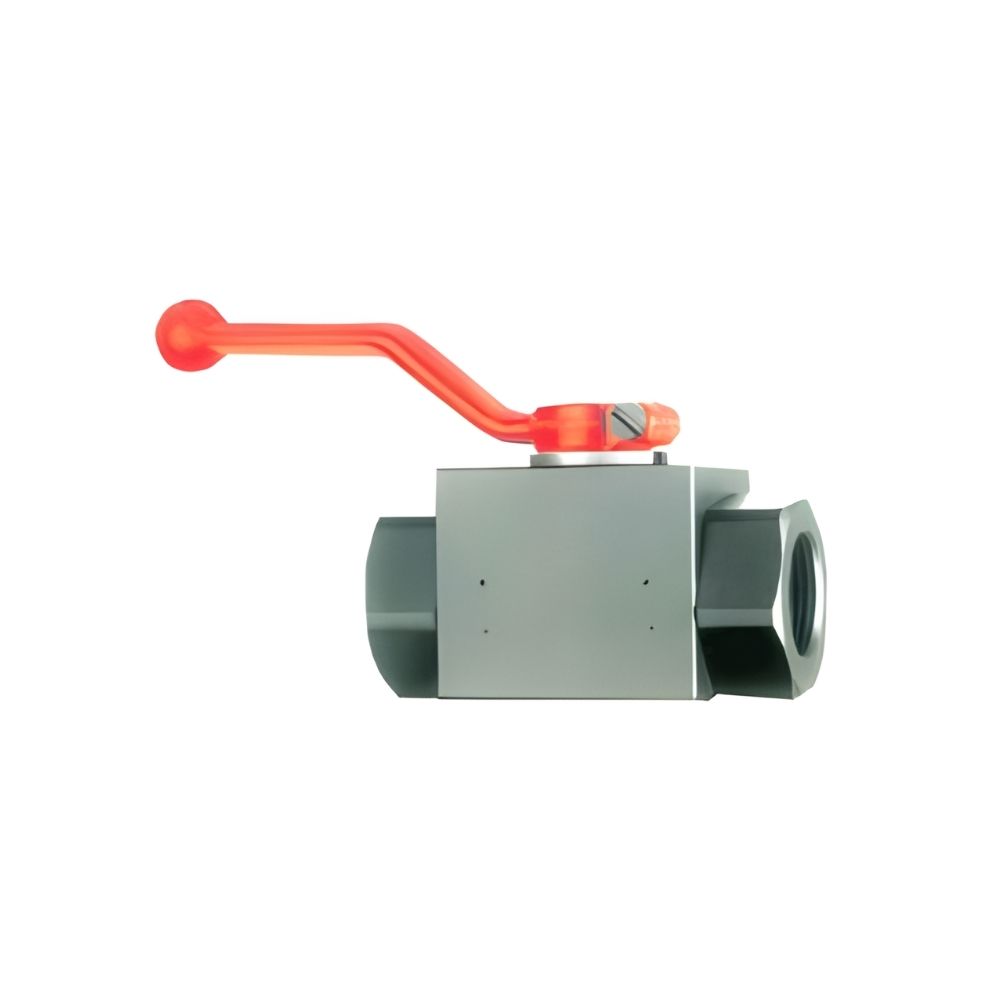

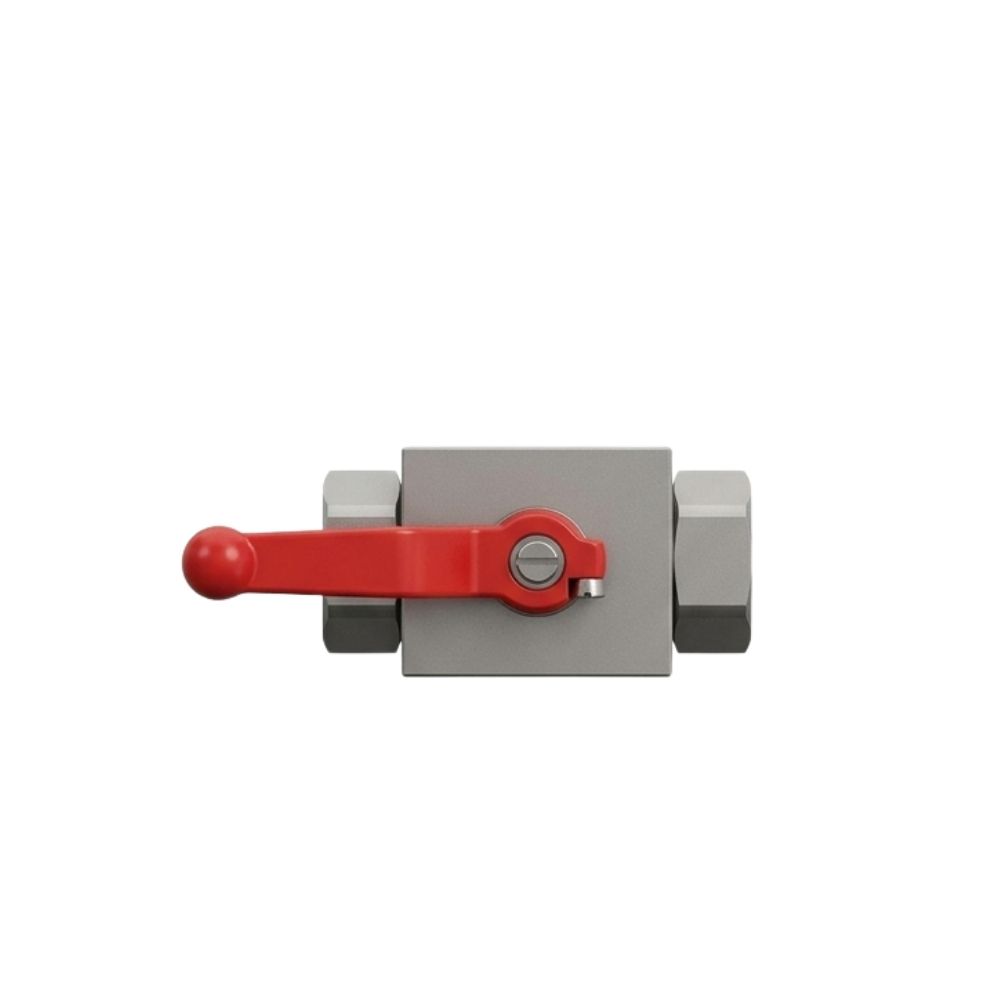

Ball Valves | BV-G
The Hyloc BV-G series comprises high-pressure, 2-way, bi-directional ball valves engineered for bubble-tight shut-off in hydraulic systems, handling up to 500 bar (7250 PSI). Constructed with robust steel and precision-ground seals, these in-line, 90-degree turn valves are designed for high-cycle, heavy-duty applications, including industrial machinery and mobile hydraulics.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Hyloc BV-G series consists of high-pressure, bi-directional in-line ball valves primarily used in hydraulic applications to shut off or direct flow. While Hyloc Hydrotechnic manufactures a wide range of hydraulic components, they also serve as an authorised distributor for Rötelmann GmbH ball valves in India.
| Category | Details & Values |
|---|---|
| Valve Type | High-pressure, bi-directional in-line ball valve |
| Construction | Compact, inline threaded body with seat-type sealing |
| Size Range | G 1/8 to G 1 (BSPP ports at inlet and outlet) |
| Operating Pressure | Up to 500 bar (G 1/8 to G 3/8) Up to 315 bar (G 1/2 to G 1) |
| Temperature Range | -20°C to +70°C |
| Hydraulic Medium | Mineral oil (ISO VG 68 standard; viscosity 10 cSt to 380 cSt) |
| Seal Materials | Nitrile (NBR) standard FKM (Viton) optional for high-temp/chemical needs |
| Fluid Cleanliness | Requirement as per ISO 4406 20/18/15 |
| Operation | Standard hand lever for 90° quick open/shut action |
| Key Features | Bi-directional flow, zero leakage, robust metal construction, optional mounting position |
