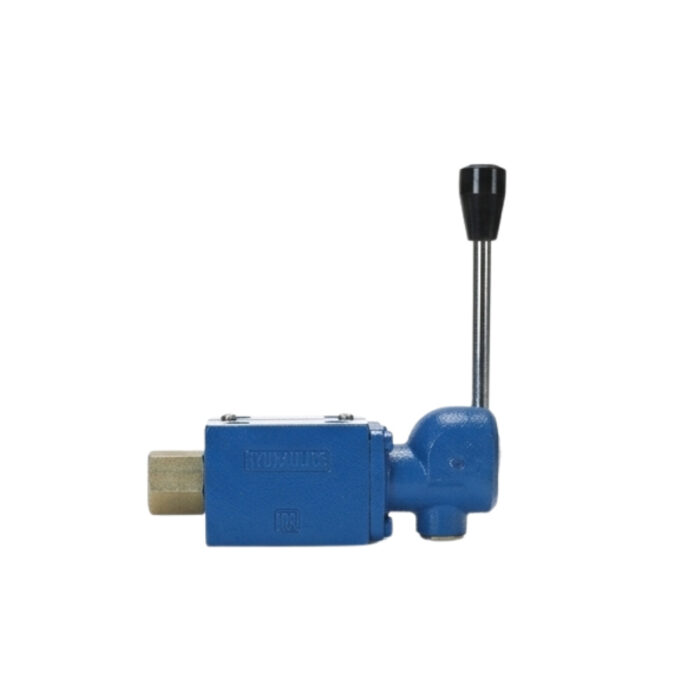

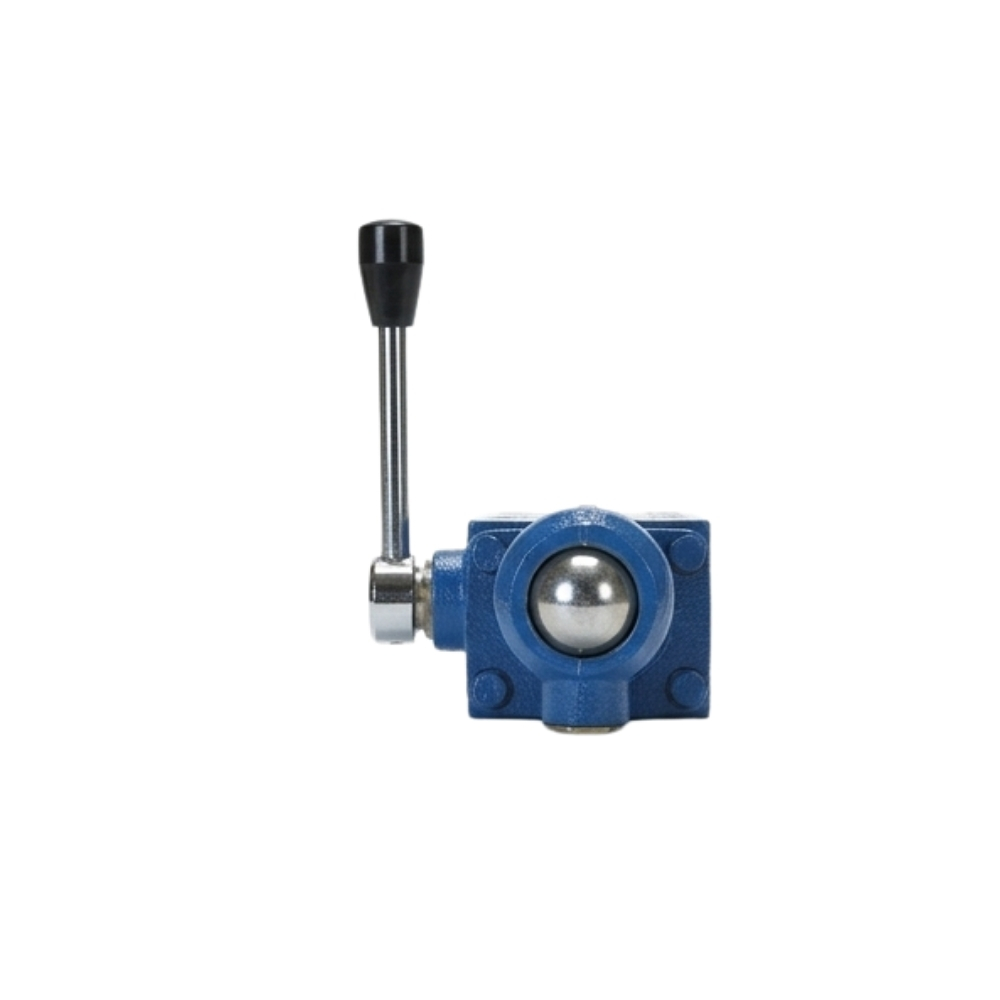

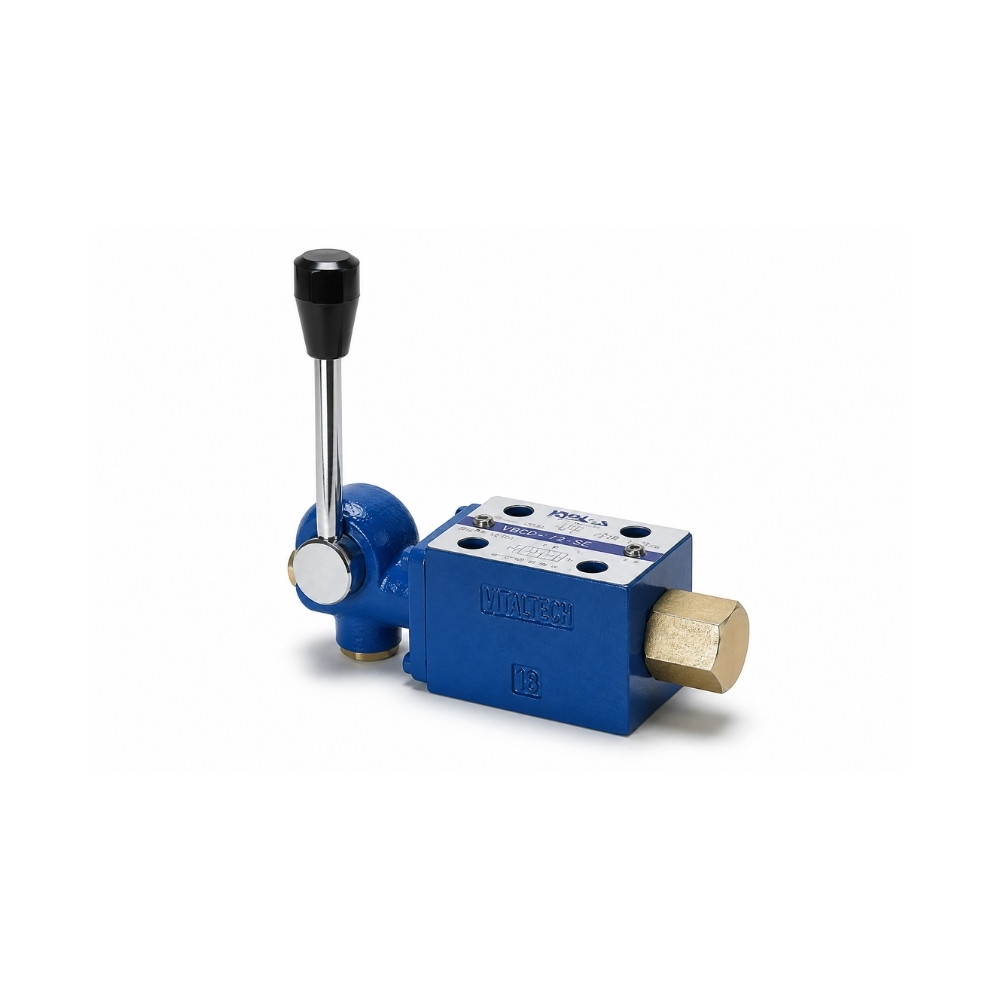

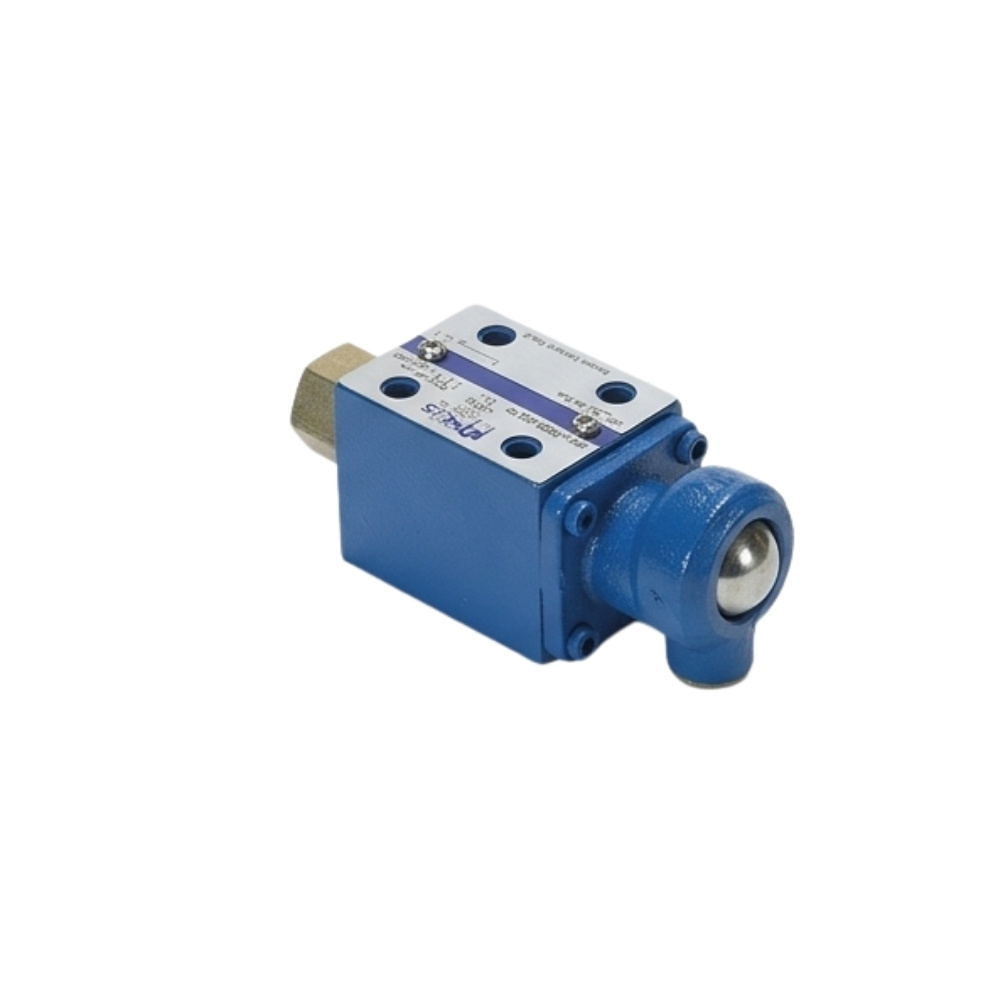

4DL06 – Manually operated, CETOP 3
The Spica 4DL06 (also referred to as Spika 4DL-06) is a 4-port, spool-type directional control valve featuring a CETOP 3 (NG06) interface. It is specifically designed for high-efficiency hydraulic applications where precise manual control of fluid direction is required.
- Operating Pressure : High Performance Range
- Application : Industrial & Mobile Systems
About this item
The Spica 4DL06 is a manually operated, hand-lever directional control valve designed for mounting on a CETOP 3 (NG6) interface. It is a robust component used to manage the direction of hydraulic fluid flow in industrial systems, often used for controlling hydraulic cylinders and motors.
| Feature/Specification | Details & Technical Data |
|---|---|
| Interface / Mounting | CETOP 3 (NG6); Conforms to ISO 4401-03, NFPA T3.5.1, and ANSI B93-7 D03. |
| Max Flow Rate | 60 LPM (Liters Per Minute). |
| Max Operating Pressure | Ports P, A, B: Up to 315 – 350 bar; Port T (Tank): Up to 100 – 160 bar. |
| Body Design | Five-chamber body design to reduce dynamic forces and facilitate higher flow with lower pressure drops. |
| Manual Operator | Hand lever mechanism; fully encapsulated to prevent the ingress of dirt and debris. |
| Actuation Options | Available in Spring-Centered (S), Spring-Offset, or Detented (D) configurations. |
| Mounting Flexibility | The operating head can be rotated in 90° increments (4 positions) around the spool axis. |
| Spool Configuration | Over 52 standard, interchangeable spool types available to suit various hydraulic circuit requirements. |
| Hydraulic Medium | Mineral oil; Viscosity range: 10 cSt to 380 cSt. |
| Temperature Range | Fluid: -20°C to +80°C; Ambient: -20°C to +50°C. |
| Approximate Weight | 1.5 kg. |
| Seals | Standard NBR (Nitrile); Fluorocarbon (FKM/Viton) available for high-temp or chemical resistance. |
