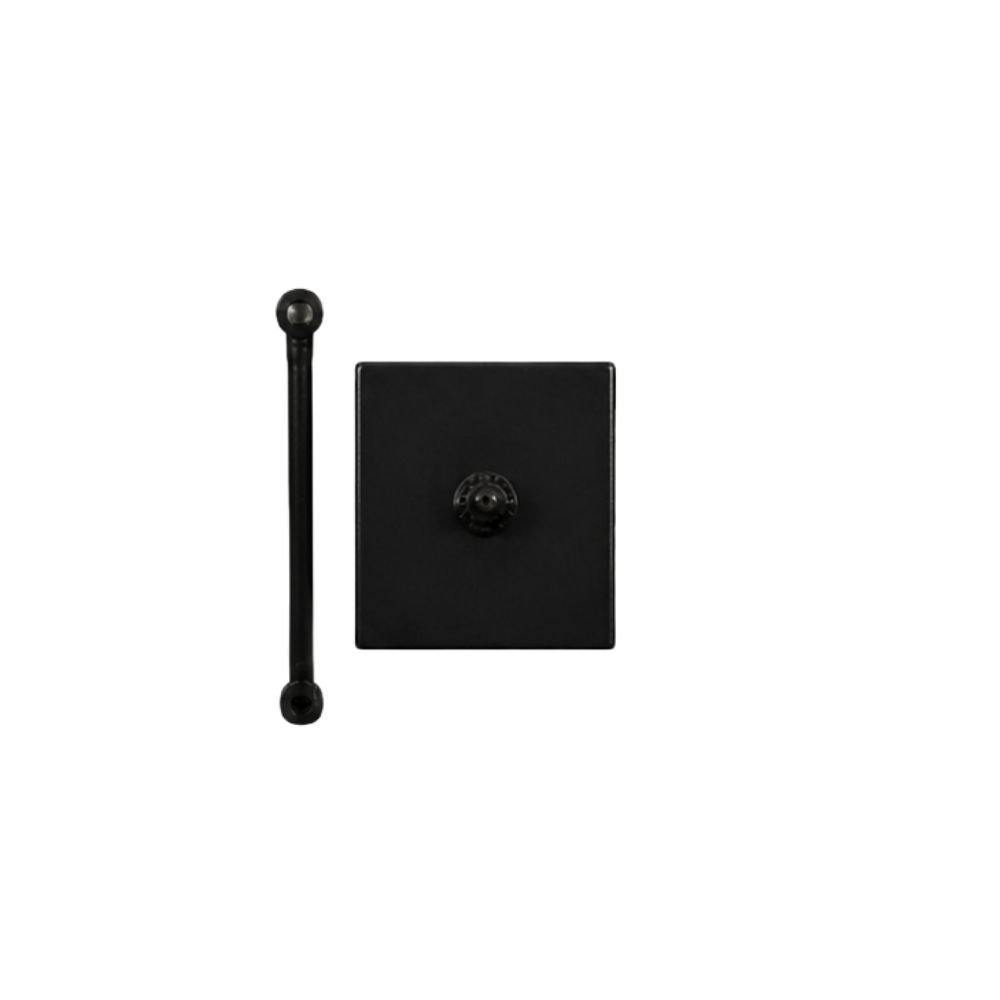

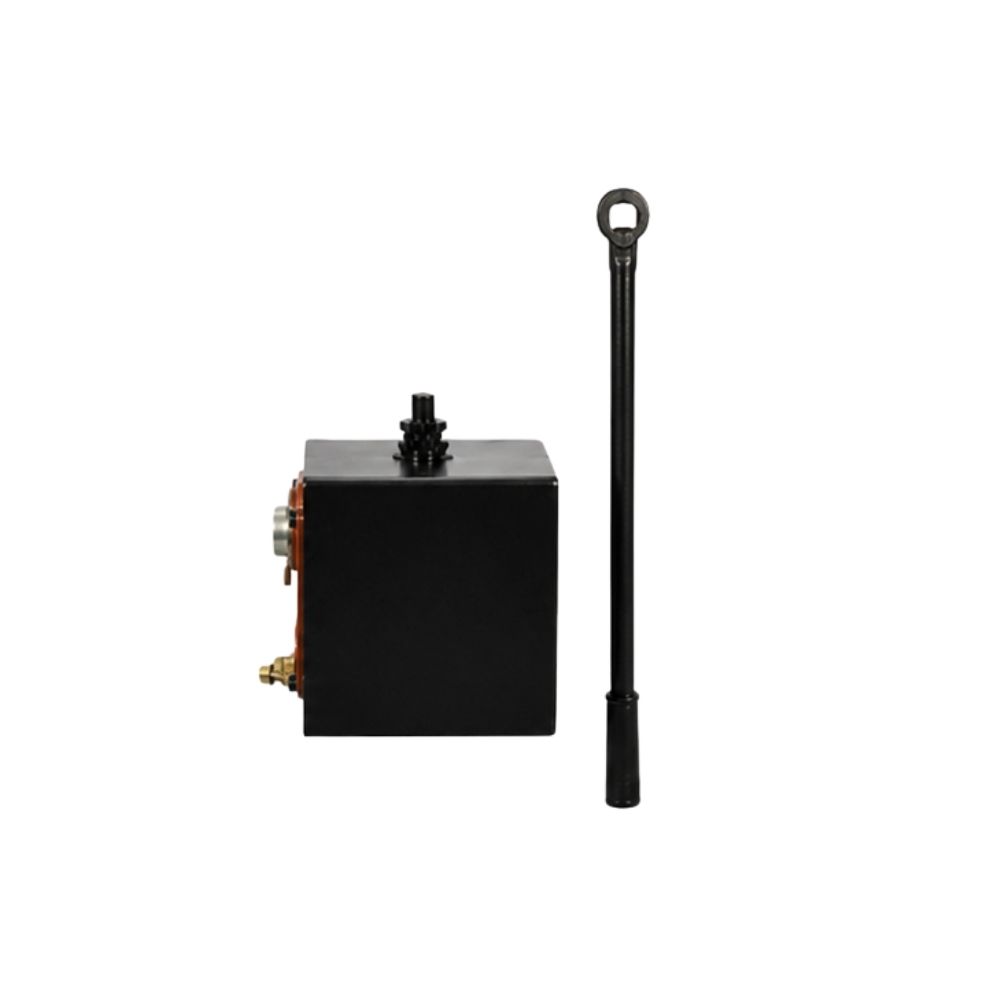

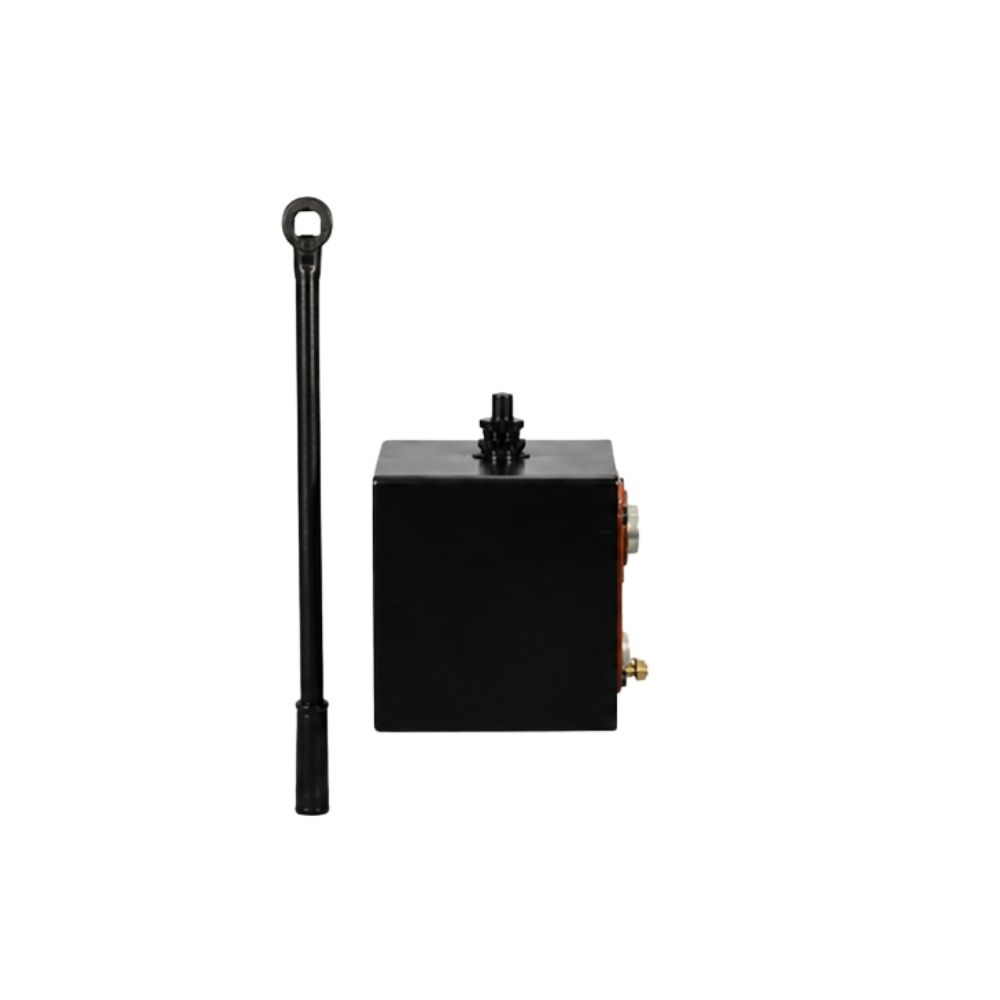

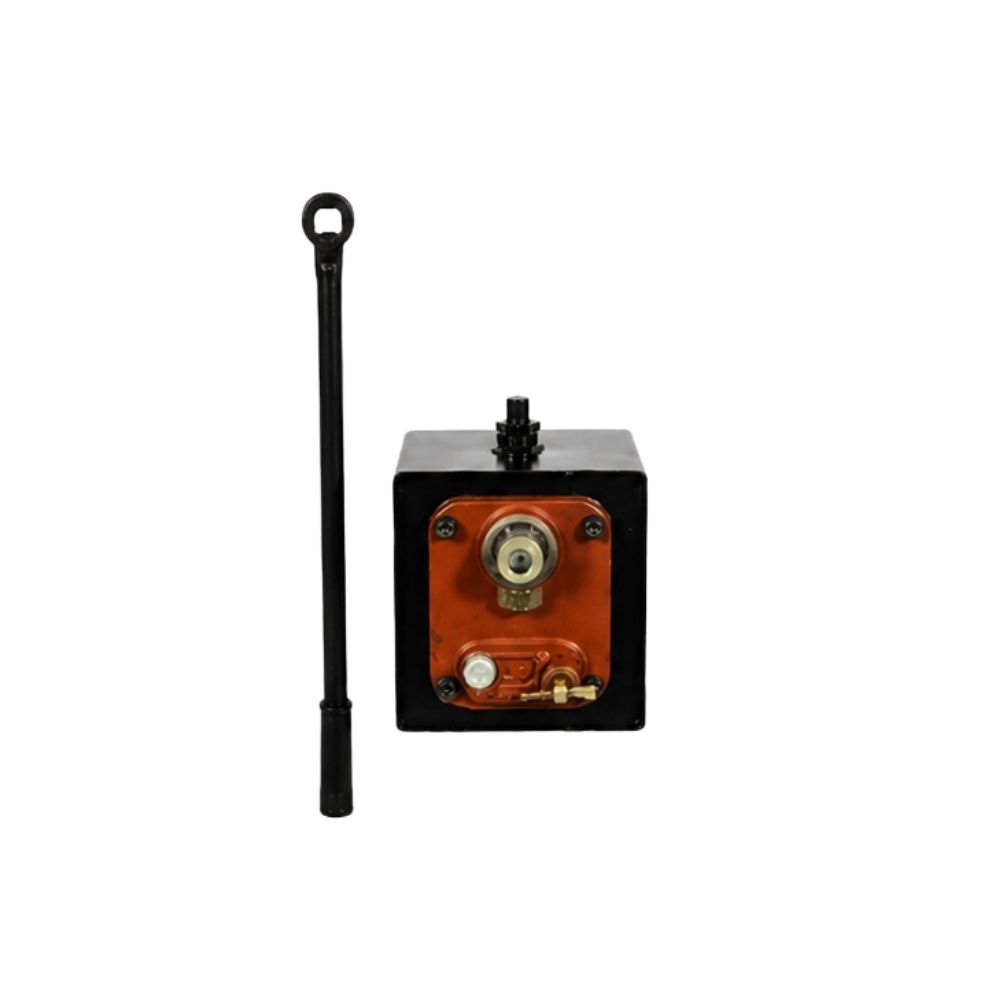

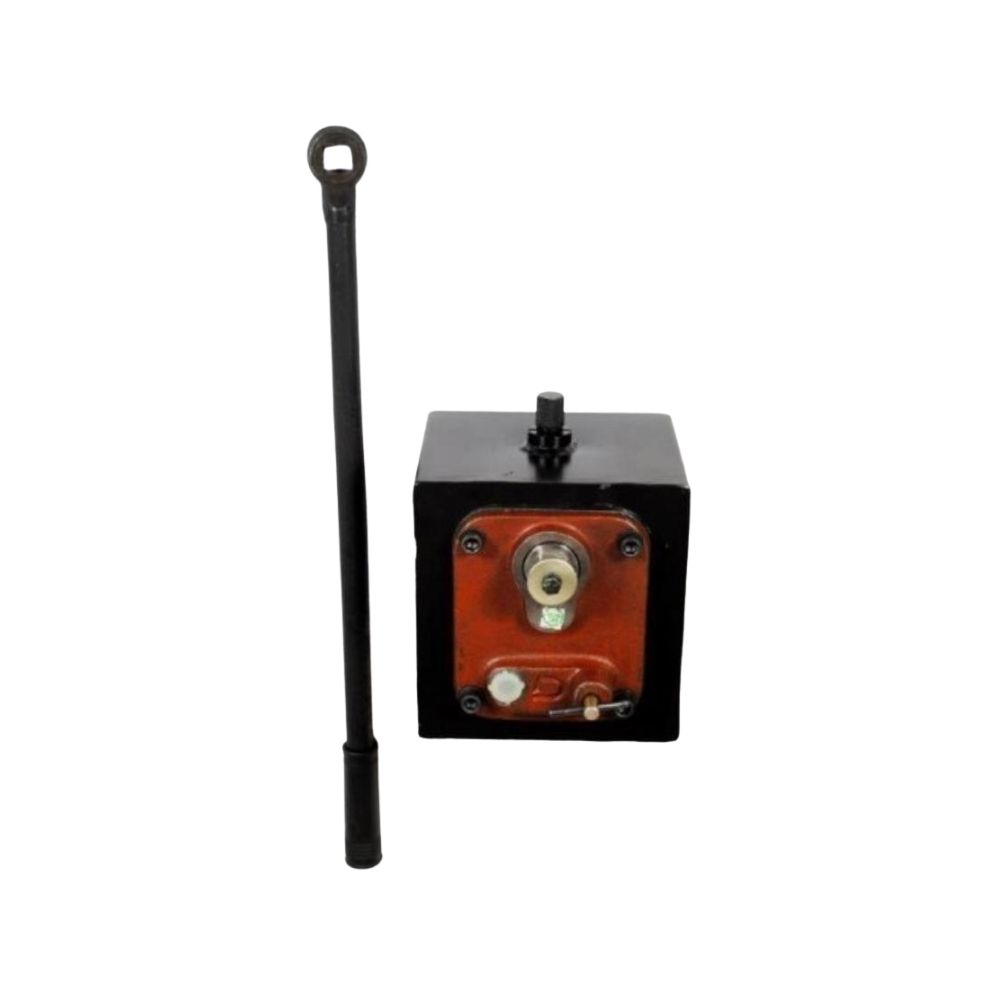

Dowty Hand Pump

The DOWTY HAND PUMP is a durable and efficient manually operated hydraulic pump designed for reliable pressure generation in various industrial applications. Built with rugged construction and precision components, it delivers smooth operation and consistent output, typically up to around 200–210 bar. Its compact design, ease of use, and low maintenance make it ideal for applications such as lifting, testing, clamping, and maintenance tasks where manual hydraulic control is required.

  • Check Mark Operating Pressure : High Performance Range
  • Check Mark Application : Industrial & Mobile Systems

About this item

A Dowty hand pump isa manual hydraulic pump used to generate high-pressure fluid for industrial, maintenance, and emergency backup tasks. It is highly valued for its independence from electrical power, making it ideal for remote or on-site fieldwork.



Key Specifications & Features

  • Pressure Capacity: Typically capable of generating up to 3000 PSI (207 bar), with some heavy-duty industrial models reaching 350 bar.
  • Flow & Displacement: Common delivery is approximately 0.80 in³ per double stroke (roughly 1.3 to 1.8 LPM).
  • Construction: Usually features a rugged aluminium or mild steel body with a durable steel handle (approx. 350 mm) for mechanical advantage.
  • Reservoir Options: Available with or without an integrated tank; a standard reservoir capacity is about 3.4 litres (6 pints).
  • Mounting: Designed for standard base mounting, often recommended for vertical installation.

Common Application

  • Lifting & Jacking: Powering hydraulic jacks or lifting cylinders for heavy machinery.
  • Industrial Clamping: Providing pressure for clamping devices in workshops.
  • Emergency Backup: Serving as a standby source for hydraulic systems when electrical or engine-driven pumps fail.
  • Testing & Calibration: Used for hydrostatic testing of pipelines and calibrating hydraulic equipment.
TECHNICAL DETAILS
Product Type Manual Hydraulic Hand Pump
Pump Operation Double-acting hand-operated mechanism
Maximum Pressure Capacity Up to 207 bar (3000 PSI)
High-Pressure Capability Heavy-duty models can reach up to 350 bar (application dependent)
Displacement per Stroke Approx. 0.80 in³ per double stroke (~1.3 cc)
Flow Rate Output Approximately 1.3 to 1.8 LPM
Construction Material Cast iron / mild steel body with hardened internal components
Handle Design Heavy-duty steel lever (~350 mm length) for mechanical advantage
Reservoir Capacity Standard integrated tank of approx. 3.4 litres
Mounting Type Base-mounted design, suitable for vertical installation
Fluid Compatibility Suitable for mineral-based hydraulic fluids (minimum viscosity ~10 cSt)
